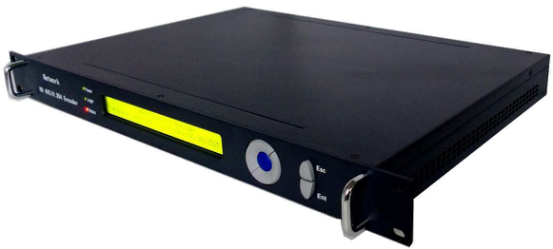

HPNE9000
Catcast
Outline
HPNE9000 is a portable Network Live Encoder with H.264/AVC Video encoding and MPEG-4 AAC audio encoding. High video and audio quality at very low bit rate even 1080P25 video can be compressed to 1Mbps. Using low delay compress technology,even 1080P25 video compressing delay little than 300ms.
HPNE9000 has many versatile streaming protocol, RTMP, RTSP/RTP, HTTP, UDP,RTP etc. Customers could watch the live video by PC web, iPad, iPhone, Android,or IP set-top box etc.
It can be widely used for cross-border point-to-point transmission, emergency video,Network live video (IPTV) broadcast, mobile video, remote conference, hotel VOD, campus radio broadcast, hospital expert consultation,etc
Feature
1. High reliability，embed process，low power。
2. High quality @ low bit rate, 1080P25 1Mbps
3. Low delay processing, Video encoding less than 300ms
4. Excellent technology，first Triple B encoder, which ensuring the video quality even at very low bit rate
5. Versatile application, more streaming protocol, UDP, HTTP, RTSP/RTP, RTMP
6. Good cost performance, support HDMI，HD/SD-SDI，CVBS video input and HDMI, HD/SD-SDI, Analog audio input
7. Support H.264/AVC High Profile, Main Profile, Baseline
8. Support AAC, MPEG1 Audio Layer 2 Audio encoding
9. Support 1080P, 1080I ,720P and PAL NTSC video input
10. Maximum 1080P，and any down convert video Definition
11. Compatible publishing stream to Adobe FMS, Wowza，RED5 media server
12. Friendly Man-Machine interface, WEB configuration ,7 Keys + LCD display indication
Specification
Input | Video | HD/SD-SDI (BNC) |
| HDMI (HDCP Support) | ||
| CVBS (BNC) | ||
| Support 720x480i/p 720x576i/p 1280x720p 1920x1080i/p | ||
Audio | HD/SD-SDI (BNC) | |
| HDMI | ||
| Analog R-L (BNC) | ||
Video Encoding | Maximum Video | 1920x1080P30 1280x720P60 |
| Pre-process | De-interlace, noise filter | |
| Compress STD | H.264/MPEG4-AVC | |
| Compress performance | 1080P25@1Mbps | |
| Encoding Delay | Less than 300ms | |
| Definition | 352x288 ~ 1920x1080 Adjustable | |
| Frame Rate | 8Hz – 60Hz Adjustable | |
| H.264 Profile | High Profile, Main Profile, Baseline Adjustable | |
| H.264 Level | Level 1.0 – 4.1 Adjustable | |
| Bit rate | 100kbps ~ 20Mbps Adjustable | |
| Bit rate mode | CBR/VBR | |
| GOP Structure | I IP IBP IBBP IBBBP | |
| GOP Length | Adjustable | |
Audio Encoding | Sample length | 24 bit |
| Sample Rate | 32KHz 44.1KHz 48KHz | |
| Track | Stereo Mono-L Mono-R | |
| Compress STD | AAC MP2 | |
| Bit rate | 30Kbps ~ 384Kbps | |
Output | Interface | RJ45 x 2 10/100Mbps with switch ability |
Stream Protocol | TS Over UDP | |
| TS Over RTP | ||
| TS Over HTTP | ||
| FLV Over RTMP | ||
| RTSP/RTP | ||
| RTMP | ||
| Management | Equipment | 7Keys + LCD indicator |
| Network | embedded WEB configuration | |
General | Weight | 3KG |
| Size | 1U standard | |
| Power | AC 110V~220V 50/60Hz |
