HPS8432A
Catcast
8517623990

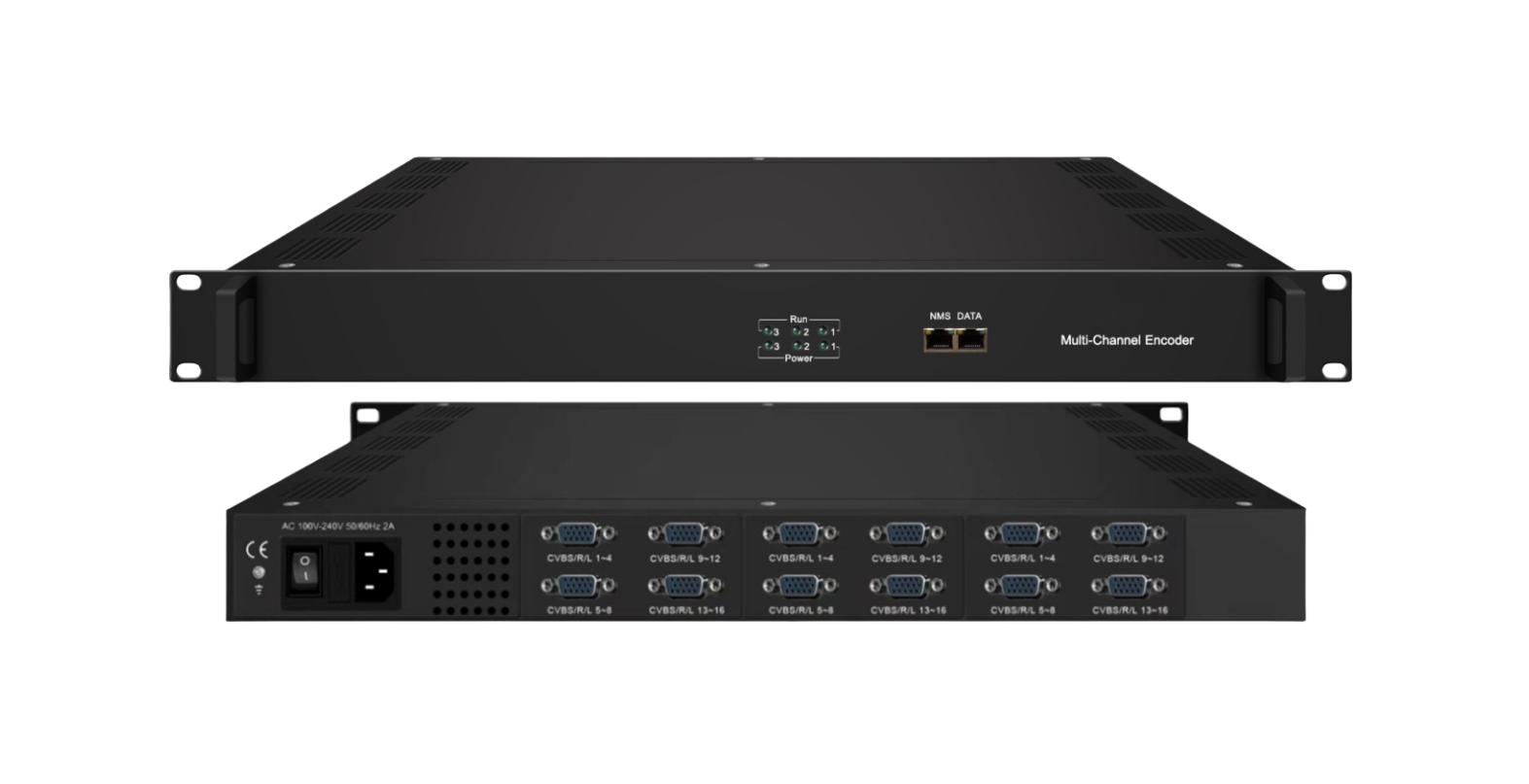

HPS8432A 16/32/48 chanenls CVBS to IP H.264 SD Encdoer
Product Overview

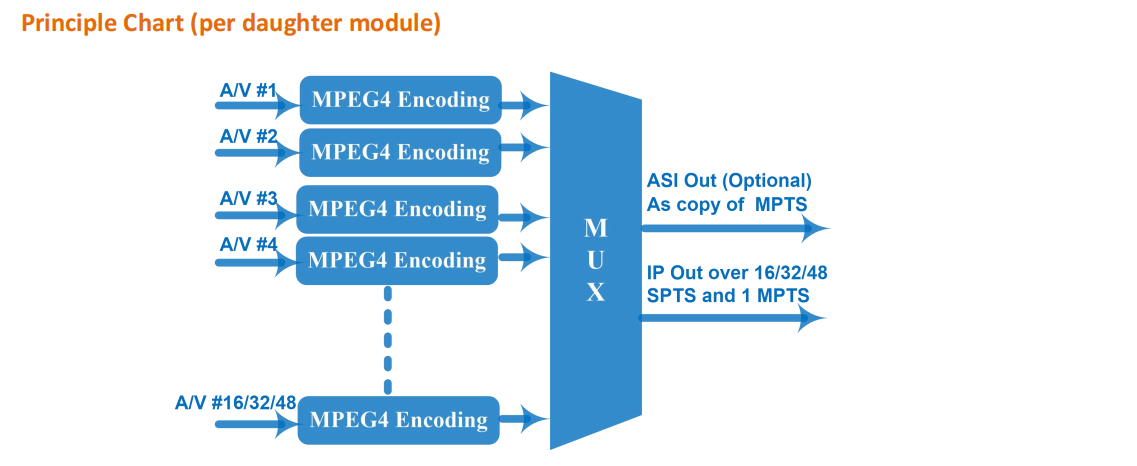

Catcast HPS8432A multi-channel encoder is our newest professional SD audio & video encoding and multiplexing device with powerful functionality. It adopts the slot structure with one device supporting maximum 3 HX3226 modules. Each module can support 16 channels and work standalone. It is equipped with 16/32/48 CVBS channels input. It can multiplex the 16/32/48 encoded TS to generate a MPTS and 16/32/48 SPTS output through GE output port and one MPTS output through 1 ASI output ports. In conclusion, its high integration and cost-effective design make this device widely used in variety of digital distribution systems such as CATV digital head-end, satellite and terrestrial digital TV, etc.
Key features

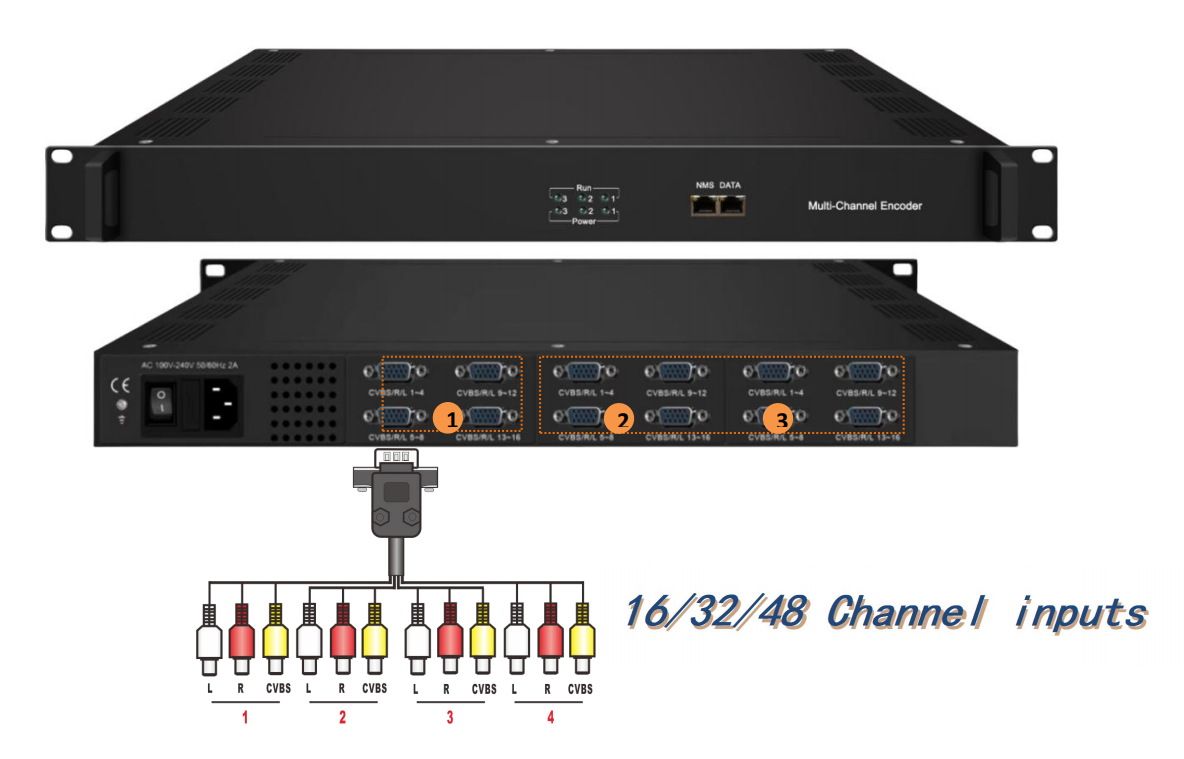

16/32/48×CVBS video inputs with MPEG4 AVC/H.264 Video encoding
Supports PAL (PAL-B,D,G,H,I) and NTSC (NTSC-M,J) SD video formats
Support MPEG1 Layer II Audio encoding and support audio gain adjustment
Support 1 MPTS out through 1 ASI output ports (optional)
Support IP output over UDP and RTP
Support Null PKT Filter(only for MPTS, SPTS output without Null PKT)
Support Logo, Caption, QR code insertion
Real-time effective encoding output bit-rate monitoring
Control via web management, and easy updates via web
Modular design, 1U chassis support up to 3 modules
Technicalspecification
| Input | 16/32/48CVBSinputs,DB15-To-RCAinterface | |
| Video | Resolution | 720×576i(PAL-B,D,G,H,I),720×480i(NTSC-M,J) |
| Encoding | MPEG4AVC/H.264(HP/MP/BP) | |
| Bit-rate | 1Mbps~66Mbpseachchannel | |
| RateControl | CBR/VBR | |
| GOPStructure | IPP(Pframeisadjustable) | |
| AspectRatio | 4:3;16:9 | |
| Audio | Encoding | MPEG-1Layer2 |
| Samplingrate | 48KHz | |
| Resolution | 24-bit | |
| AudioGain | 0-255adjustable | |
| Bit-rate | 64/128/192/224/256/320/384Kbpseachchannel | |
| Streamoutput | IP(1*MPTSand16*SPTSforonemodule)outputoverUDPandRTP,1000 Base-TEthernetinterface(Multicastandunicast) | |
| 1MPTSoutputthrough1ASIoutputports,BNCinterface(Optional) | ||
| Systemfunction | Networkmanagement(WEB) | |
| Englishlanguage | ||
| Ethernetsoftwareupgrade | ||
| Miscellaneous | Dimension(W×L×H) | 482mm×328mm×44mm |
| Environment | 0~45℃(work)；-20~80℃（Storage） | |
| Powerrequirements | AC110V±10%,50/60Hz,AC220±10%,50/60Hz | |

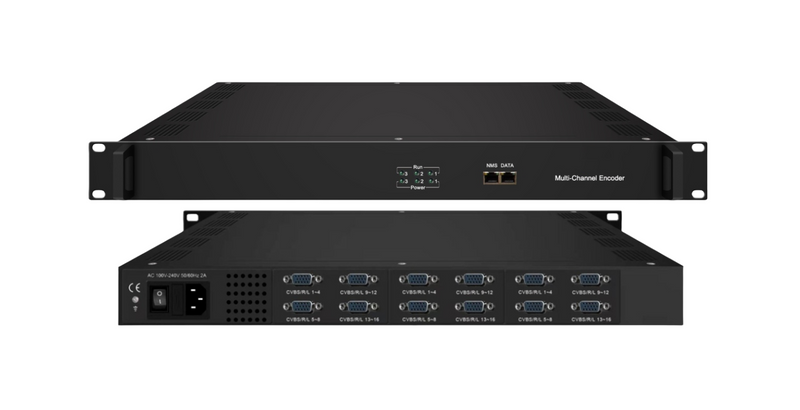

HPS8432A 16/32/48 chanenls CVBS to IP H.264 SD Encdoer
