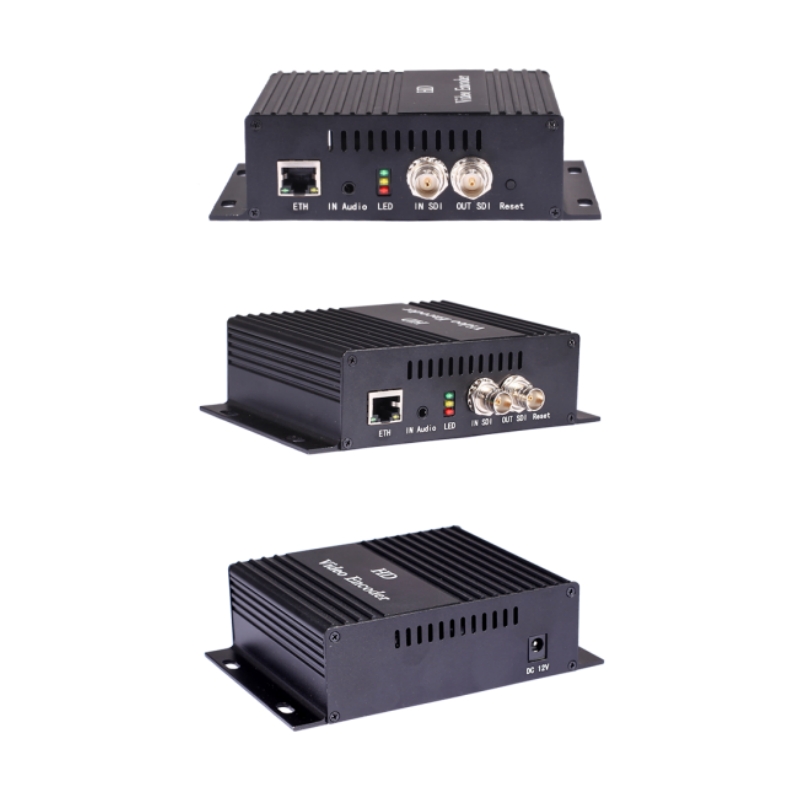

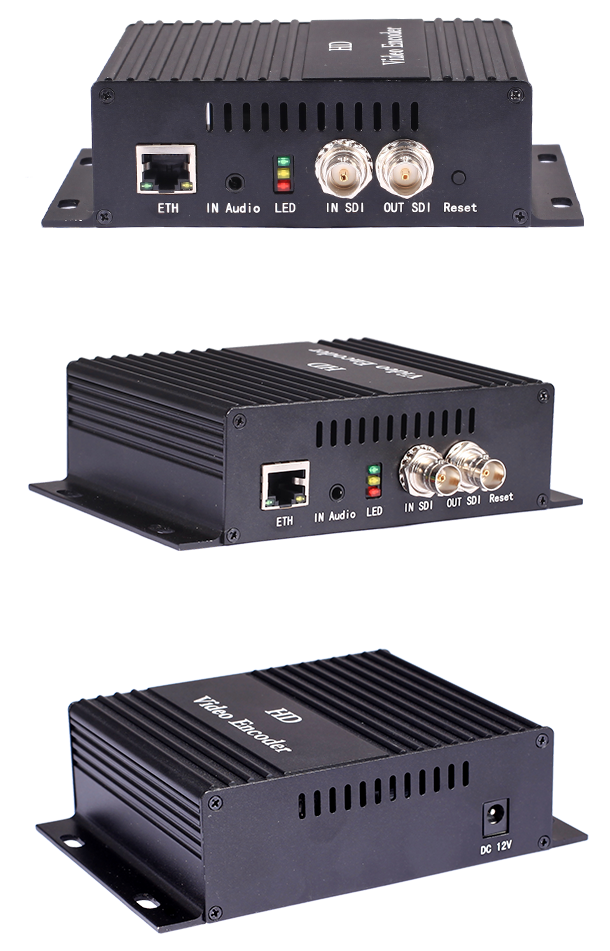

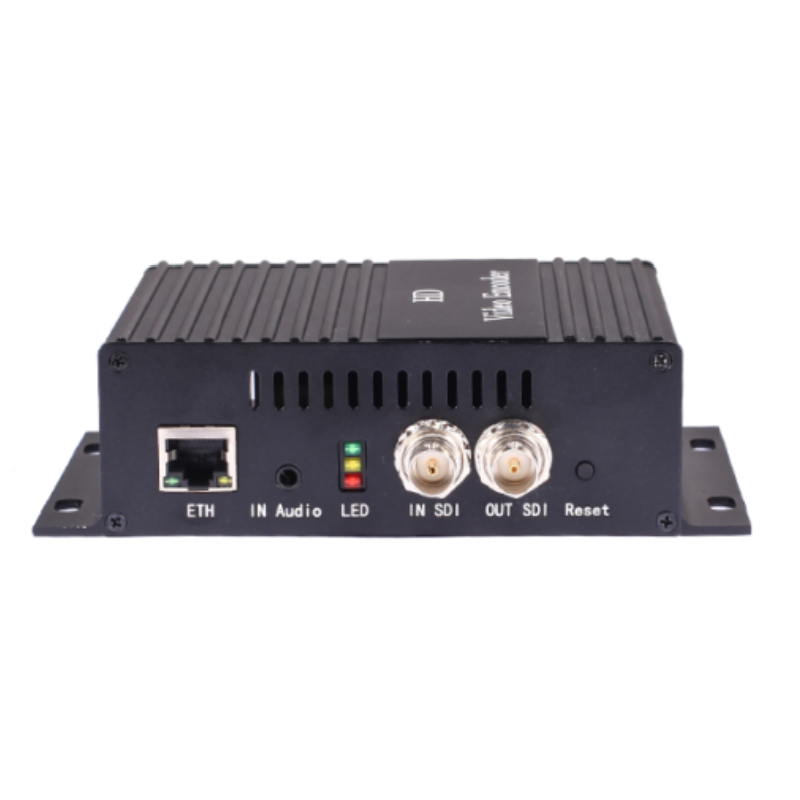

HP3610 1 SDI to IP H.264 HD Encoder

HP3610 1 SDI to IP H.264 HD Encoder

Product Description

HP3610 HD SDI encoder is a professional high-definition audio and video encoding products, which support 1 channel or 1-SD SDI HD audio and video, 1 channel audio interface 3.5MM independent capture capabilities with SDI loop output. Dual streaming H.264 encoded output format, an audio MP3 / AAC /G711 format. Adjustable rate coding, the picture quality can be controlled. Support SRT / HTTP / RTSP / RTP / RTMP / UDP/ONVIF/ HLS transport protocols.

It is easy to install and there is no computer hardware compatibility issues

Key features

•The embedded hardware encoding

•Support H.264 BASELINE PROFILE / MAIN PROFILE / HIGH PROFILE

•Support multiple devices display on a computer at the same time

•Support network directly connected, don’t need match HD collection card.

•Support Network interface full-duplex mode 1000M

•1 channel SDI input, 1 channel audio interface 3.5MM independent input

•Support the SD SDI input and up to 1080p, 720P HD SDI input

•Support RTSP/RTP/RTMP/HTTP/UDP/ONVIF/HLS/SRT unicast and multicast protocol (RTMP support adding users and changing passwords), Support DHCP/,ONVIF protocol, support HD Blue ray

•Compatible with Wowza/FMS/RED5 streaming media server, work in with streaming media server to push the streaming , to achieve a live streaming

•Support Main TS stream and the sub TS stream  use in different network protocols for transmission (Multi-rate multi-protocol support)

•Rate Control CBR / VBR 16KBIT / S ~ 12MBIT / S

•Video packaging: A mode: FFMPEG, B mode: VLC

•Supports streaming resolution custom output settings

•Transmission: TCP, UDP, 1000M (RJ45 Ethernet port duplex)

•Support streaming add watermark (OSD), XY axis, the font can be set;

•Transmission: TCP, UDP, 1000M (RJ45 Duplex network port)

•Support WEB access in Chinese/English, passwords changing, WAN remote management (WEB)

•Support DHCP gaining IP automatic ,support One-key recovery, upgrade and remote maintenance

•Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering

•Support build-in or external methods , support left and right sound channel , Support audio gain ,be able to turn volume individually

•Support coding without video signal;

•Complete the setting effect immediately, don’t need to restart

•Support one-key recovery of the default configuration

•Support set-top box decoder

•The low power consumption design

Specification
