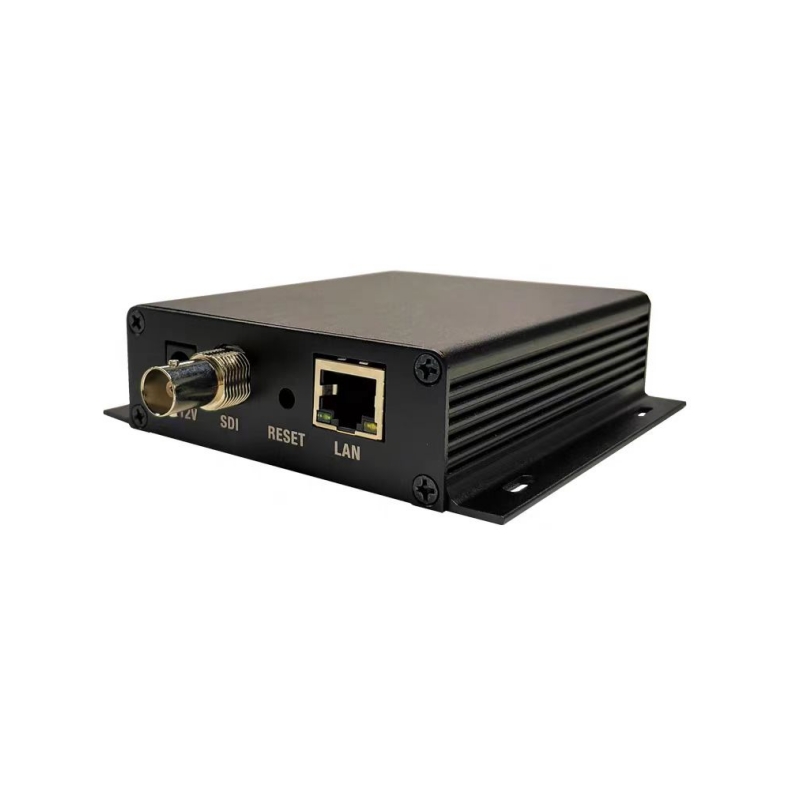

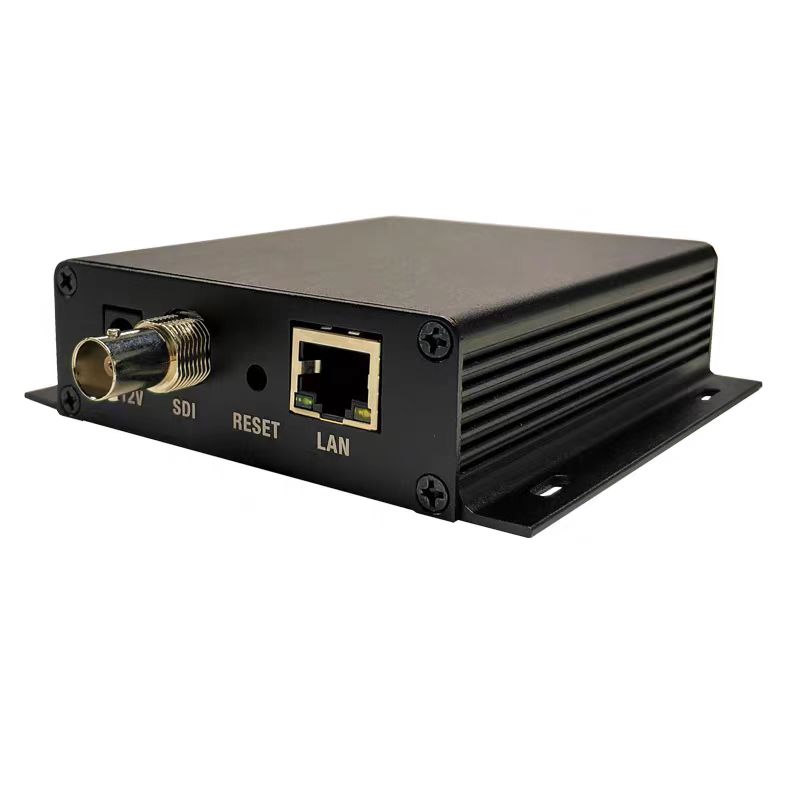

HP2025ED SDI to IP H.264 H.265 Encoder

Audio and video input

Video Input

1-channel SDI

Audio Input

1-channel SDI built-in audio

Video Encoding

Encoding type

H.264/H.265 optional

Encoding frame rate

5-60 adjustable

Keyframe interval (frames)

5-300 adjustable

Bit rate (kbit)

32-32000 adjustable

Encoded resolution

1920x1080/1680x1056/1280x720/1024x576/850x480/720x576/720x540/720x480/720x404/704x576/640x480/640x360/608x448/544x480/480x480/480x384/480x360/480x320/480x272/480x270/400x320/400x224/352x480/352x228/320x256/320x240/320x180/240x180/176x144/Same as input resolution

Stream Control

CBR/VBR optional

flow

Support RTMP/RTSP/HTTP TS/HTTP FLV/HLS/UDP multicast /RTP multicast

Audio encoding

Encoding sampling rate

44100 / 48000 optional

Encoding method

AAC+ / AAC++ / MP3 /MP2/ AC3 optional

Encoding bit rate

AAC: 48,000 -320,000 adjustable / AAC+: 24,000-48,000 adjustable /

AAC++: 12 000 -32 000 adjustable / MP3: 64000-320000 adjustable /

MP2: 64000-320000 adjustable / AC3: 40000-640000 adjustable

Audio volume (only valid for analog input)

-50-50 adjustable

Digital volume

-50-50 adjustable

RTSP stream uses G711A encoding

Disable/Enable Optional

OSD

transparency

0-128 adjustable

type

Text/Image/Scrolling Text

area

4 areas to choose from

X coordinate

0-1920

Y coordinate

0-1080

LOGO

Up to 4 LOGOs can be uploaded for selection

Font size

8-72

Background color

Transparent/white/black

Font color

RGB color optional

General

network

Gigabit

Configuration Management

Support ONVIF search and browsing video

ONVIF

Support ONVIF search and browsing video

power supply

12V/DC, 2A

Power consumption

<5W

Operating temperature

-20℃+60℃

Operating humidity

<90%, no condensation

Dimensions (length x width)

9.2cm x 10.2cm x 2.8cm

weight

319g
