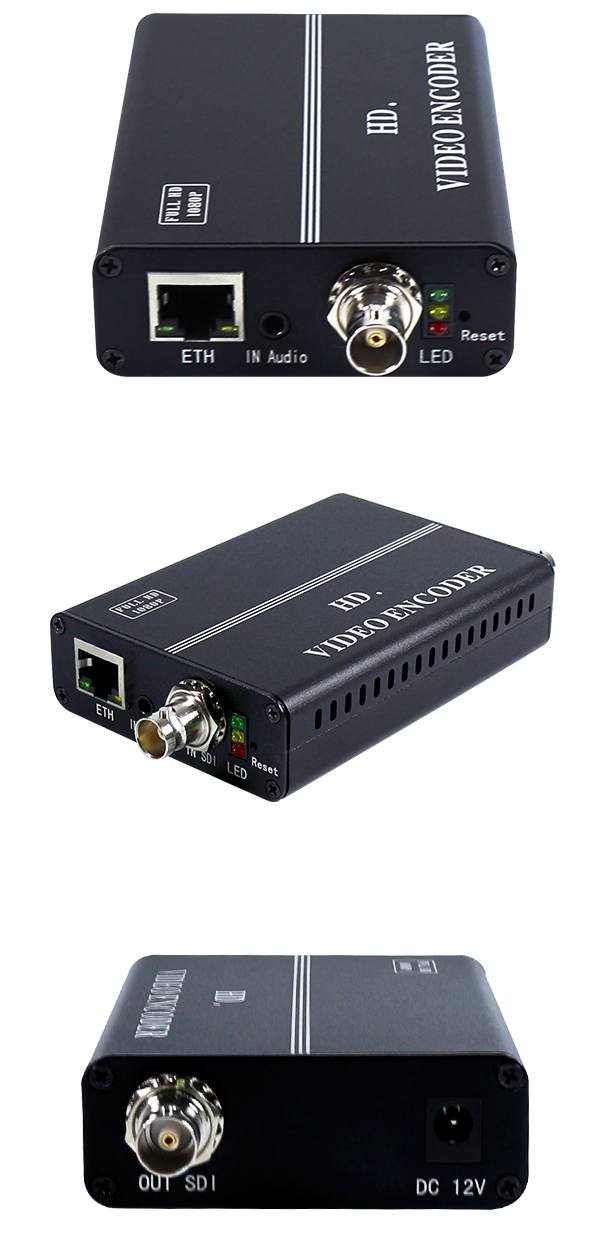

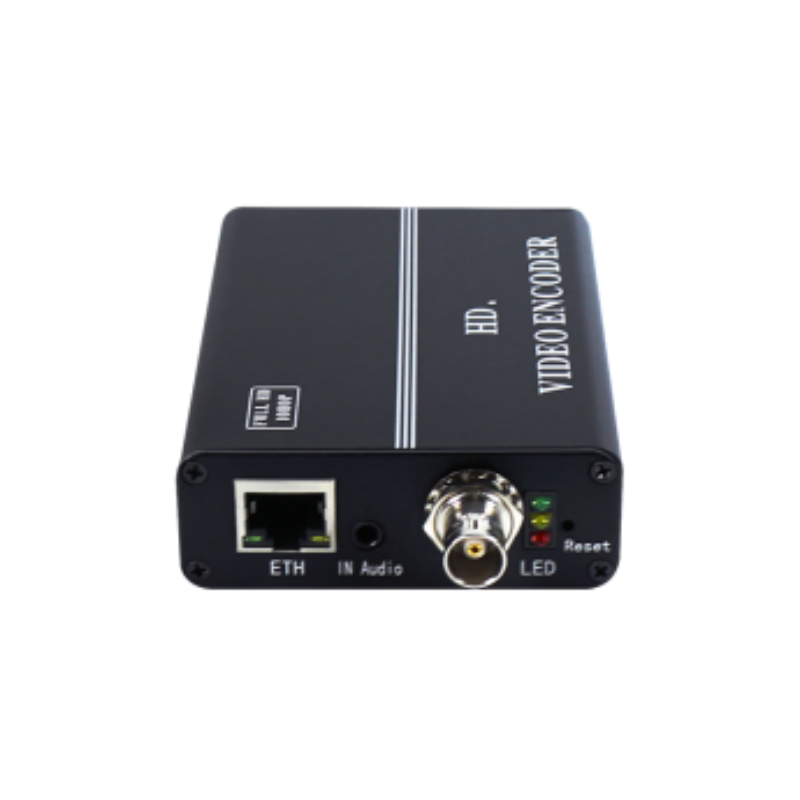

HP8114 1 HD SDI to IP H.264 HD Encoder

HP8114 1 HD SDI to IP H.264 HD Encoder

Product Description

HP8114SDI HD encoder is a professional high-definition audio and video encoding product, which supports 1-channel HD or 1-channel SDI audio and video, 1 channel 3.5MM independent audio interface with capture function , with SDI input and SDI output function . Dual-stream H.264 encoded output format, audio MP3 / AAC/G711 output format. The code rate can be adjusted, the picture quality can be controlled. Support SRT/ HTTP / RTSP / RTP / RTMP / UDP / ONVIF / HLS transport protocols etc.

It is easy to install, plug-play, and there is no computer hardware compatibility issues.

Key features

• The embedded hardware encoding

• Support H.264 BASELINE PROFILE / MAIN PROFILE / HIGH PROFILE

• Support multiple devices display on a computer at the same time

• Support network directly connected, don’t need match HD collection card.

• Rate Control CBR / VBR 16KBIT / S ~ 12MBIT / S

• The network interface uses a 1000M full duplex mode

• 1 channel SDI input, 1 channel 3.5MM independent audio interface input, support HDMI / VGA / CVBS convert to SDI input, support audio gain

•Support SDI input and support up to 720P, 1080P HD video input

• Support RTSP/RTP/RTMP/HTTP/UDP/ONVIF/HLS/SRT unicast and multicast protocol

(RTMP support adding users and passwords changing) Support DHCP protocol, ONVIF protocol, support Blue-ray

•Compatible with Wowza/FMS/ZTE/Youtube /RED5/streaming media server etc, work in with streaming media server to push the streaming , to achieve a live streaming

• Support Main TS stream and the sub TS stream  use in different network protocols for transmission (Multi-rate multi-protocol support)

• Rate Control CBR / VBR 16KBIT / S ~ 12MBIT / S

• Video packaging: A mode: FFMPEG, B mode: VLC

• Support streaming resolution output settings custom

• Transmission: TCP, UDP, 1000M (RJ45 Duplex network port)

• Support streaming add watermark (OSD), XY axis, the font can be set;

• Support WEB access in Chinese/English, passwords changing, WAN remote management (WEB)

• Support DHCP gaining IP automatic ,support One-key recovery, upgrade and remote maintenance

•  Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering

• Support build-in or external methods , support left and right sound channel , Support audio gain ,be able to turn volume individually

• Support coding without video signal;

• Complete the setting effect immediately, don’t need to restart

• Support one-key recovery of the default configuration

• Support set-top box decoder

• The low power consumption design

Specification
