HP2501E
CATCAST

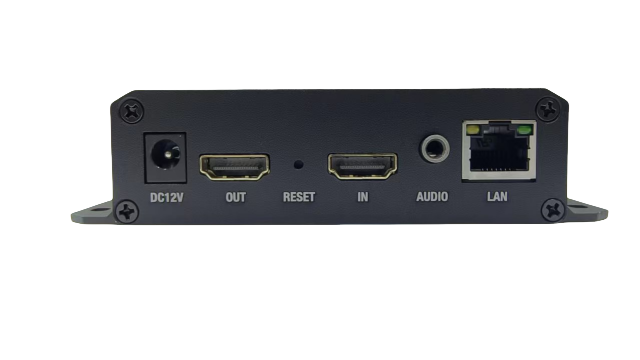

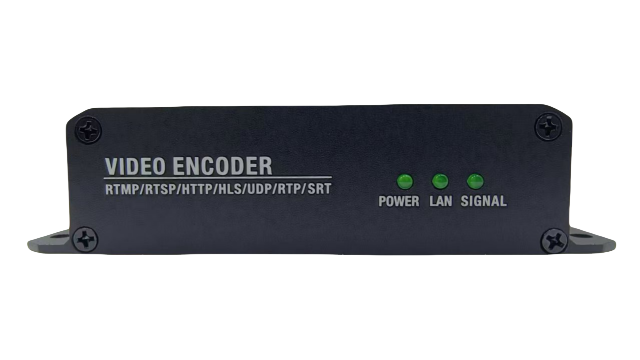

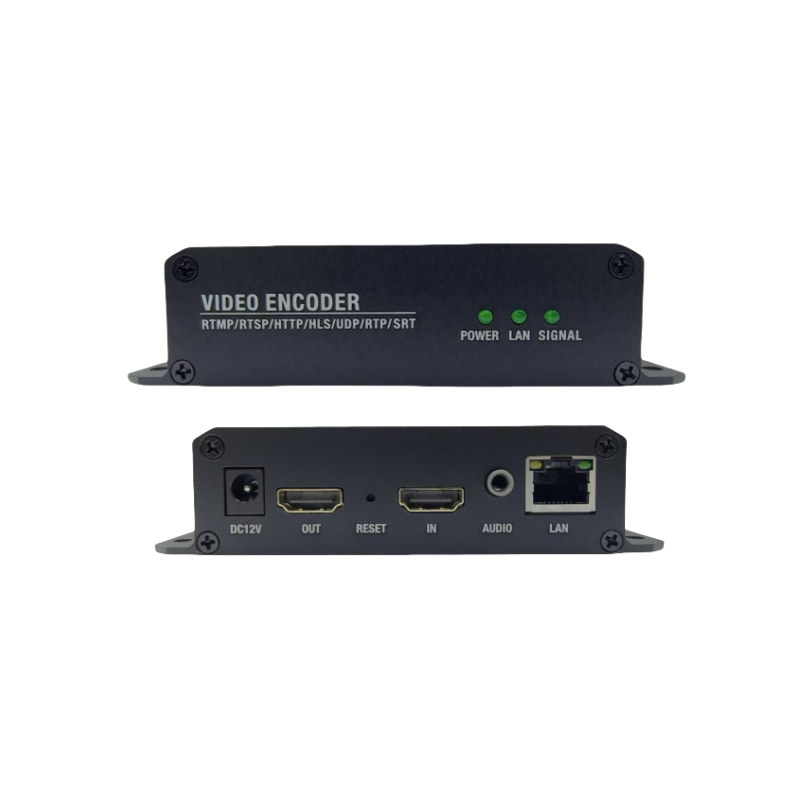

HP2501E 1 HDMI to IP H.265 H.264 Encoder
Specification
Specification | Parameters | |
Video/Audio Input | Video Input | 1 channel HDMI |
Audio Input | 1 channel HDMI built-in audio, 1 channel HDMI external audio | |
Video/Audio Output | Video Output | 1 channel HDMI |
Audio Output | 1 channel HDMI built-in audio | |
Video Encoding | Encoding standard | H.264/H.265 optional |
Encoding frame rate | 5-60 Adjustable | |
Keyframe interval (frames) | 5-300 Adjustable | |
Bit-rate (kbit) | 32-32000 Adjustable | |
Resolution | 1920x1080/1680x1056/1280x720/1024x576/850x480/720x576/720x540/720x480/720x404/704x576/640x480/640x360/608x448/544x480/480x480/480x384/480x360/480x320/480x272/480x270/400x320/400x224/352x480/352x228/320x256/320x240/320x180/240x180/176x144/ Same as input resolution | |
H.264 level | baseline profile/main profile/high profile | |
Code stream control | CBR/VBR optional | |
Stream | Support RTMP/ RTSP /HTTP TS/HTTP FLV/HLS/UDP multicast /RTPmulticast | |
Audio Encoding | Sample rate | 44100/48000 optional |
Encoding standard | AAC /AAC+/AAC++/MP3/MP2/ AC3 optional | |
Bit-rate | AAC:48000-320000 adjustable/ AAC+:24000-48000 adjustable/ AAC++:12000-32000 adjustable /MP3:64000-320000 adjustable/ MP2: 64000-320000 adjustable / AC3:40000-640000 adjustable | |
Digital volume | -50~50 adjustable | |
RTSP stream uses G711A encoding | Disable/Enable Optional | |
OSD | Transparency | 0-128 adjustable |
Type | Text/Image/Scrolling Text/Time | |
Region | 4 region optional | |
X coordinate | 0-1920 | |
Y coordinate | 0-1080 | |
LOGO | 4 LOGOs can be uploaded for selection | |
Font size | 8-72 | |
Background color | Transparent/white/black | |
Font color | RGB color optional | |
General | Network | Gigabit |
Management | Configuration management via WEB | |
ONVIF | Support ONVIF search and browsing video | |
Power supply | 12V/DC,2A | |
Power consumption | 4W | |
Working temperature | -20℃+60℃ | |
Operating humidity | <90%, No condensation | |
Dimension | 15cm x 10cm x 3.2cm | |
Weight | 284g | |
