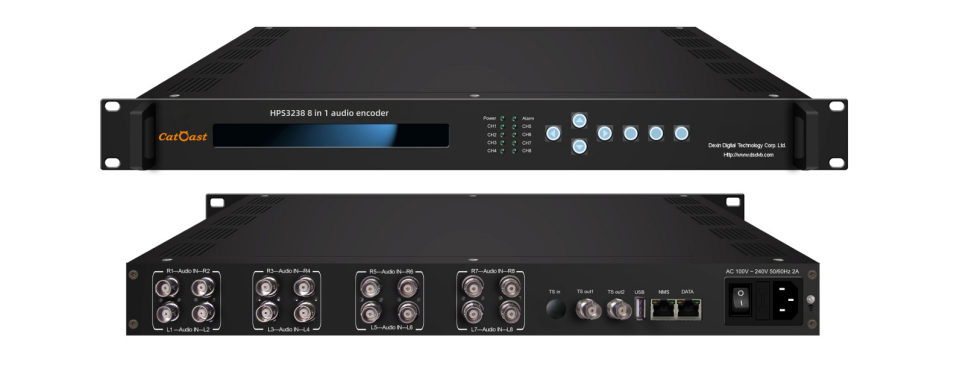

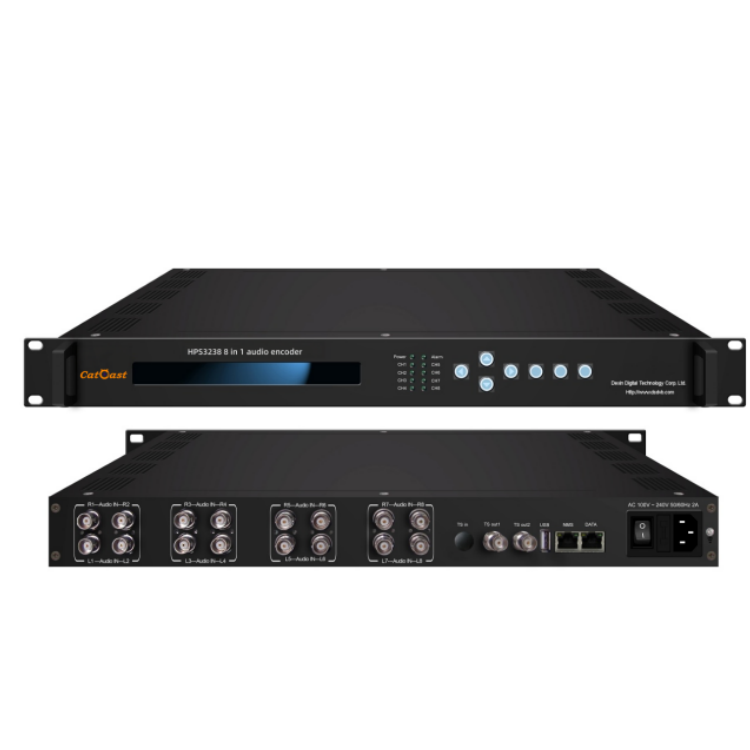

HPS3238 8 Channels Unbalanced Audio Encoder

HPS3238 8 Channels Unbalanced Audio Encoder

Product Overview

CATCAST HPS3238 is a professional audio encoder with powerful functionality. It has 8 independent channels of unbalanced audio input supporting MPEG 1 Layer II compression. Furthermore, it supports audio gain control in a wide range. The encoded audio will finally output through both ASI and DATA ports for further transmission.

Key Features

• 8 pairs of unbalanced stereo audio inputs

• MPEG1 Layer 2 audio encoding

• Support audio gain control

• Support 2 ASI mirrored output

• Supports IP (MPTS & 8 SPTS) output over UDP

• LCD / keyboard and web-based NMS operation

• Update device through NMS port
