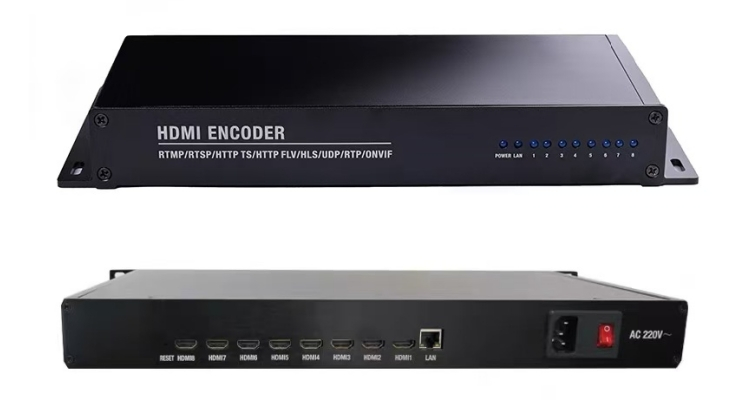

HP802 8 Channel HDMI To IP H.264 H.265 Encoder

Audio and video input

Video input

8-CHANELS HDMI

Audio input

8 channels of HDMI built-in audio

Video encoding

Encoding type

H.264/H.265/MJPEG

H.264 level

Baseline /Main /High Optional

Encoding frame rate

5-30 adjustable

Keyframe Interval (Frames)

5-300 adjustable

Bit rate (kbit)

32-32000 adjustable

Resolution after encoding

1920x1080/1680x1056/1280x720/1024x576/850x480/720x576/720x540/ 720x480/720x404/704x576/640x480/640x360/608x448/544x480/480x48 0/480x384/480x360/480x320/480x272/480x270/400x320/400x224/352x 480/352x228/320x256/320x240/320x180/240x180/Same as input

resolution

Bitstream control

CBR/VBR Optional

Video streaming

Support webrtc/RTMP/ RTSP /HTTP TS/HTTP FLV/HLS/SRT/UDP Multicast/RTP multicast

Audio coding

Encoding sample rate

44100/48000 Optional

Coding methods

AAC/AAC+/AAC++/MP3/MP2/AC3 Optional

Encoded bitrate

AAC:48000-256000 adjustable /AAC+:24000-48000 adjustable / AAC++:12000-32000 adjustable /MP3:64000-320000 adjustable / MP2: 64000-320000 adjustable / AC3:40000-640000 adjustable

Digital volume

-50~50 adjustable

RTSP stream

usage

G711A encode

Disable/enable/enable and resample to 8K optional

G711A encode

G711U/ G711A

OSD

transparency

0-128 adjustable

type

Text/Image/Scrolling Text

region

4 zones are available

X coordinates

0-1920

Y coordinates

0-1080

LOGO

16 LOGOS can be uploaded

Font size

8-72

Background color

Clear/white/black

Font color

RGB colors are available

common

Internet

Gigabit

Configuration

management

Configuration management via the WEB

ONVIF

Support ONVIF to find and browse videos

power supply

12V 2A

power

consumption

<12W

Operating

temperature

-20℃+60℃

Operating

humidity

<90%, non-condensing

size

26.5cm x 10.4cm x 3.3cm

net weight

633g
