HP824LX-N is a professional high integration device which includes encoding, multiplexing. It supports 4/8/12/16/20/24 HDMI input,MPEG-4 AVC/H.264 encoding, 2 ASI input, IP input, ASI output, IP stream output ( SRT/HLS/HTTP/RTMP/UDP/RTP/RTSP ).
In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as IPTV live streaming multicast, cable TV digital head-end, digital TV broadcasting etc.
| Quantity: | |
|---|---|
HP824LX-N
CATCAST

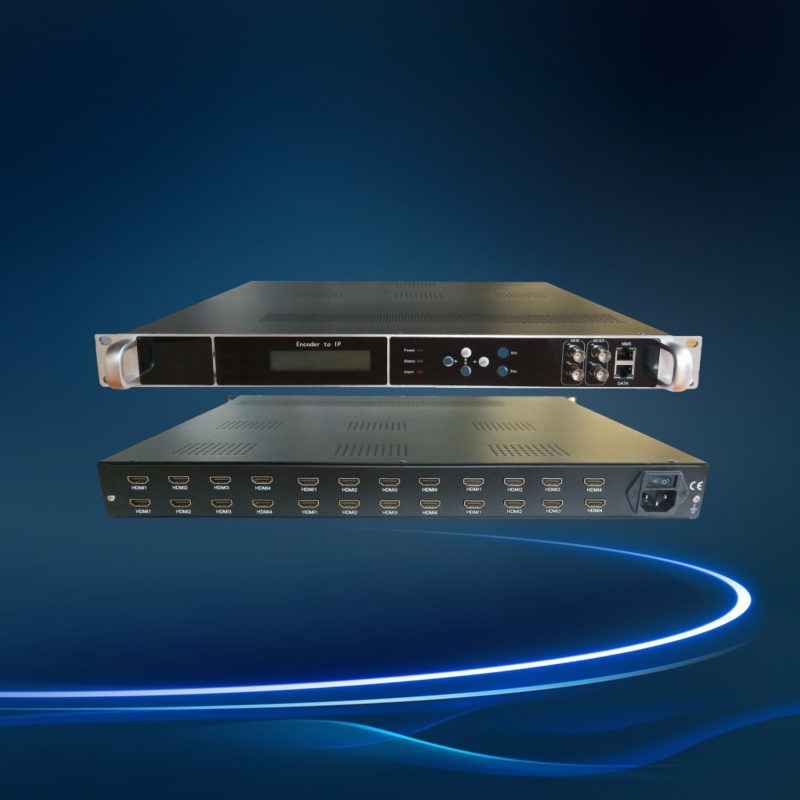

HP824LX-N Multi-channel HD Encoder
Product Overview
HP824LX-N is a professional high integration device that includes encoding, multiplexing. It supports 4/8/12/16/20/24 HD MI input, MPEG-4 AVC/H.264 encoding, 2 ASI input, IP input, ASI output, IP stream output (SRT/HLS/HTTP/RTMP/UDP/RTP/RTSP ). In conclusion, its highly integrated and cost-effective design makes the device widely used in a variety of digital distribution systems such as IPTV live streaming, multicast, cable TV digital head-end, digital TV broadcasting, etc.

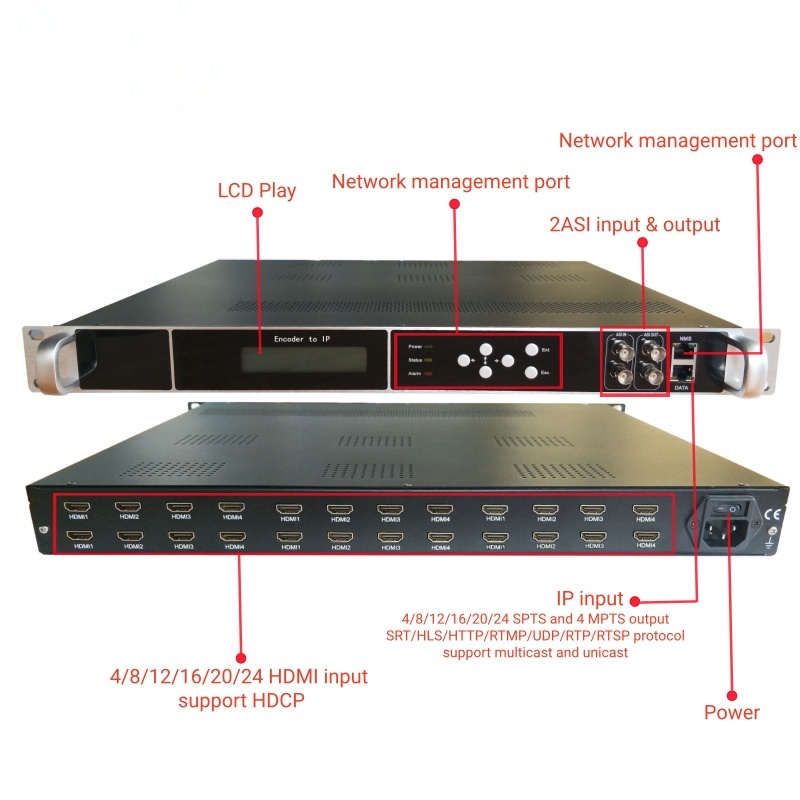

Key Features
·Support QR code, LOGO, OSD insertion for every local channel
·4/8/12/16/20/24 HD MI input, support HDCP
·Support MPEG-4 AVC/H.264 Video encoding
·Support MPEG1 Layer2, LC-AAC, HE-AAC v1&v2, AC3 audio encoding
·4/8/12/16/20/24 SPTS and 4 MPTS output, IP output over SRT/HLS/HTTP/RTMP/UDP/RTP/RTSP
protocol, support multicast and unicast
·2 ASI inputs
·2 ASI Independent output (optional) as a copy of 4MPTS
·Support “Null PKT Filter” function
·Support PID Remapping/ PCR accurate adjusting
·LCD, key function
·Control via web management, and easy updates via web
Specification
Input | 4/8/12/16/20/24 HD MI (support HDCP) | |
2 ASI input | ||
IP input over UDP/RTP/RTSP protocol, 1000M | ||
Output | 2 ASI output | |
IP output: 4/8/12/16/20/24 SPTS and 4 MPTS output, IP output over UDP and SRT/HLS/HTTP/RTMP/UDP/RTP/RTSP protocol, support multicast (for UDP only) and unicast | ||
Video | Encoding | MPEG-4 AVC/H.264 |
Resolution | Input: 1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720×576_50i,720×480_60i, | |
Output: 1920×1080_60P, 1920×1080_50P, 1280×720_60P, 1280×720_50P, 720×576_50P, 720×480_60P 1920×1080_30P,1920×1080_25P, 1280×720_30P,1280×720_25P, 720x576_25P,720x480_30P | ||
Bit-rate | 1Mbps~15Mbps（each channel) | |
Rate Control | CBR | |
Audio | Encoding | MPEG-1 Layer 2, LC-AAC, HE-AAC v1&v2, AC3 |
Sampling rate | 48Khz | |
Bit-rate | 64kbps,128Kbps,192kbps,224kbps,256kbps,320kbps,384kbps | |
Resolution | 24-bit | |
Audio Gain | 0-255 Adjustable | |
Multiplexing | Maximum PID Remapping | 180 output PIDS per channel |
Function | PID remapping ( automatically or manually) | |
Accurate PCR adjusting | ||
System function | Network management(WEB) | |
Chinese and English language | ||
Ethernet software upgrade | ||
Miscellaneous | Dimension (W×L×H) | 482mm×480mm×45mm |
Environment | 0~45℃(work)；-20~80℃(storage) | |
Power requirements | AC100~240V，50/60Hz | |
