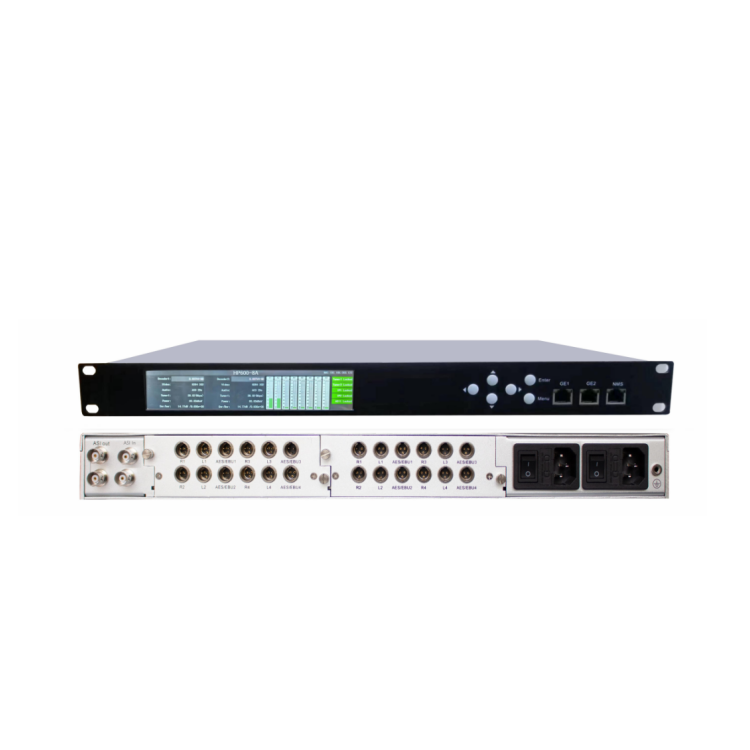

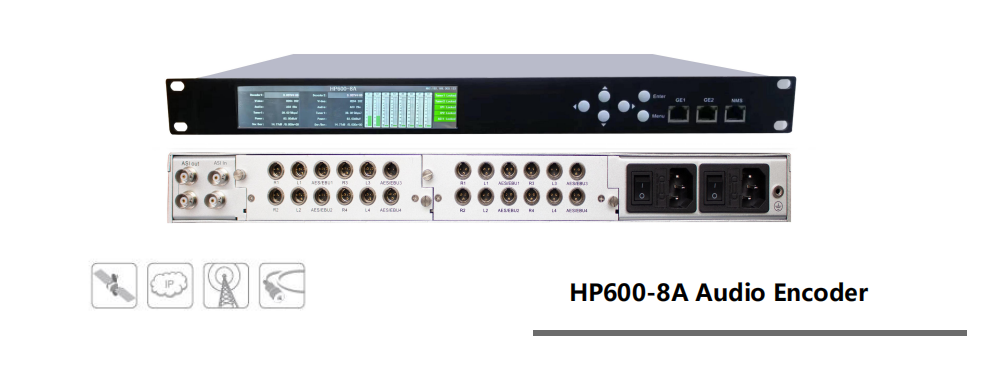

HP600-8A 8 Channels XLR AES/EBU Input Audio Encoder

HP600-8A 8 Channels XLR AES/EBU Input Audio Encoder

Outline

The HP600-8A audio encoder enables simultaneous encoding and multiplexing of 8 channels of analog stereo or 8 channels of digital AES/EBU audio within a 1RU chassis . It supports 8 SPTS/1 MPTS outputs, 2 ASI outputs, and 2 independent gigabit network ports that serve as backup IP outputs for each other .

Key Features

• Dual power supply configuration

• Supports flexible combinations of different types ofmodules

• Supports 8-channel XLR/8-channel AES-EBU

• Supports 2-channel ASI output

• Supports 100/1000M auto-sensing IP output

• Supports unicast and multicast output, and can be configured across network segments.

• Web-based network management based on B/S architecture .

• The user-friendly interface and easy-to-use menu system allow all operations to be performed on the LCD screen.

Application Scope

• Digital television front-end equipment.

• Digital TV interface converter,facilitating interchange between different interfaces on various devices.

• Video on demand ( VOD ), IPTV .

• Broadcast monitoring, etc.
