Product Overview

HP824VX Encoder is Catcast’s professional high integration device which includes encoding and multiplexing. It supports 6 module, each module load 4 HDMI encoding board, so 4/8/12/16/20/24 HDMI input (optional), MPEG-4 AVC/H.264 encoding for HDMI input, 2 ASI input/output, and 3*GE data port for IP input or output, In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, IPTV live streaming multicast, digital TV broadcasting etc.

Key Features

 Max. support 6 independent modules, each module load 4 HDMI encoding board, 4/8/12/16/20/24 HDMI input (optional)

 Support QR code, LOGO, OSD insertion for every local channel

 MPEG4 AVC/H.264 encoding for HDMI input

 Support MPEG-1 Layer2, LC-AAC, HE-AAC v1&v2 audio encoding

 1000M IP (SPTS/MPTS) input for remux, UDP protocol 2 ASI input for remux

 1000M IP (SPTS/MPTS) output, UDP/RTP/RTSP protocol, unicast/multicast

 2 ASI independent output as copy of 4MPTS

 Support “Null PKT Filter” function

 Support PID Remapping/ PCR accurate adjusting, PID pass

 LCD、key function, Web-NMS managment

 Single or Dual power supply (optional)

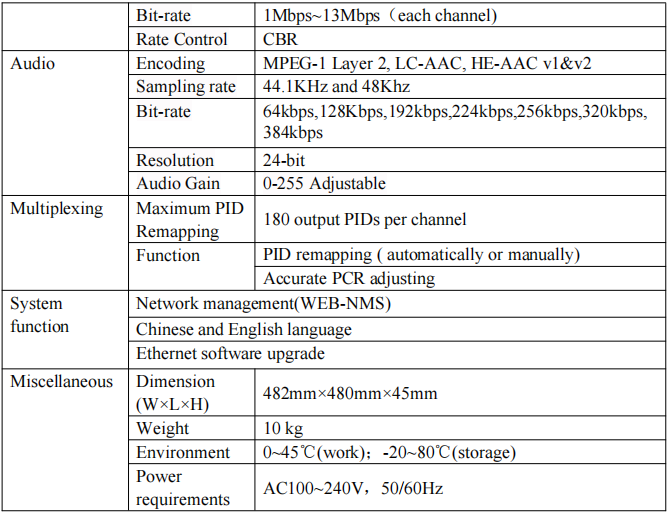

Specification
