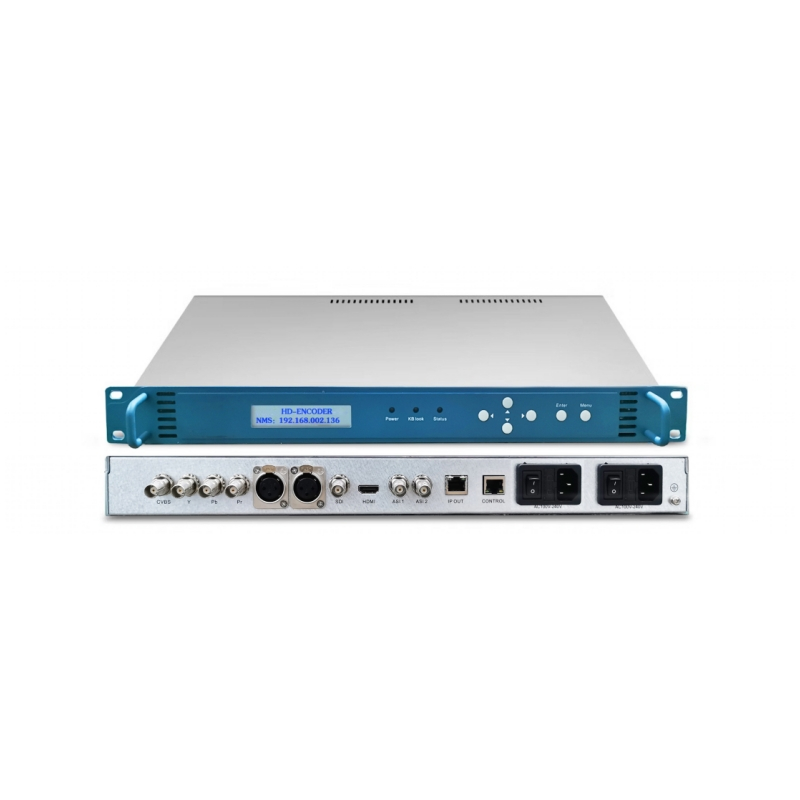

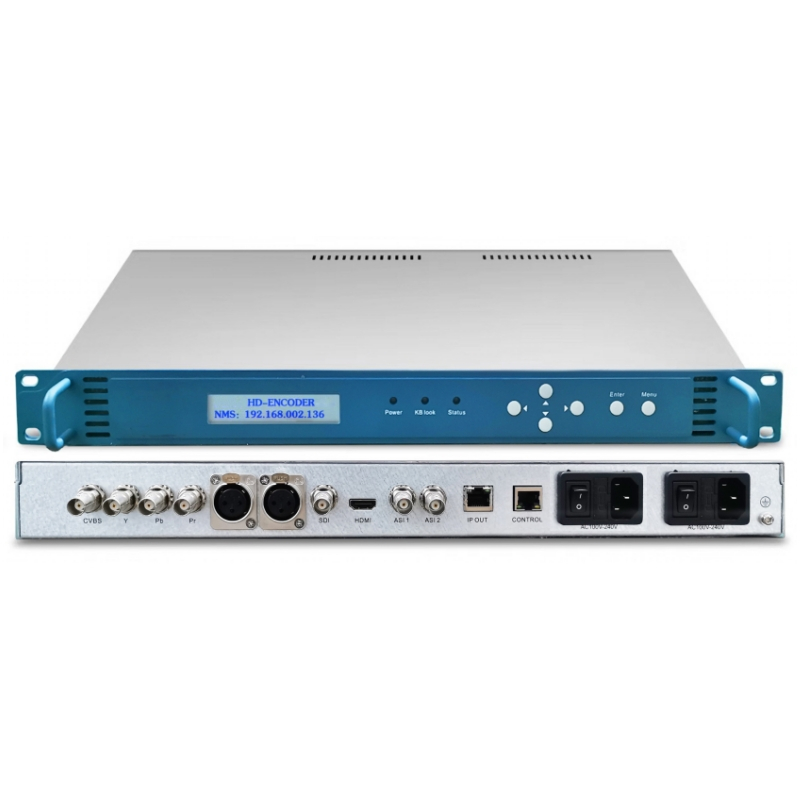

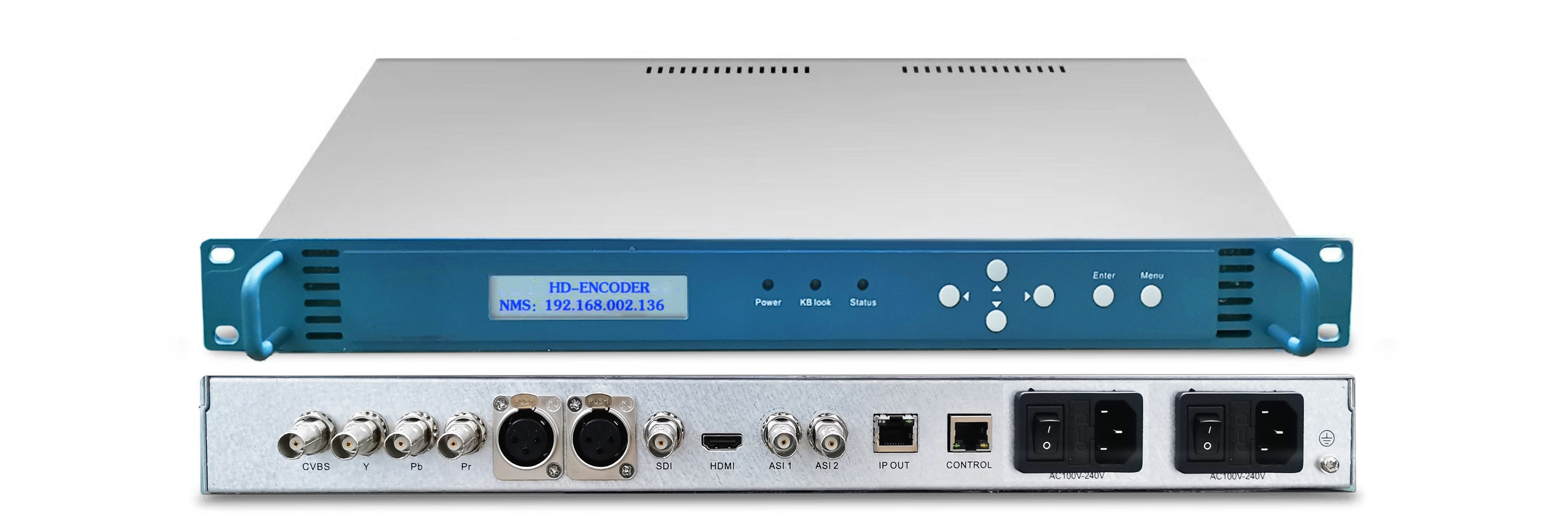

HP801S MPEG2 H.264 HD SD One Seg Encoder

HP801S MPEG2 H.264 HD SD One Seg Encoder

Product Overview

HP801S, premium MPEG-2/ H.264 encoder, this new professional HD SD video encoder for a solution to address the needs of early adopters of the premium TV standard, especially use in Multi-Audio channel MPEG-2 H.264 in High-End Cable TV and ISDB-Tb Application.

With high-quality MPEG-2 H.264 encoding, HP801S delivers FULL HD for an immersive experience with high-resolution and high-framerate.  It fully supports for SDI/ HD-SDI, CVBS, HD-MI, YPbPr interface inputs encoding, both IP and two identical ASI data outputs, and capable of simultaneously delivering low resolution channels for new applications such as picture-In-picture (PIP) and ISDB-Tb One-seg application.

HP801S highly bandwidth efficient MPEG-2, H.264 VBR CBR encoding and native IP output make it possible to deliver exciting and competitive HD services to broadcast operators.

Key Feature

• Advanced MPEG-2 MP@ML4:2:0 and MPEG-4 AVC 4:2:0 (H.264) video encoding

• ASIC technologies which offer broadcast, video quality, generally video bitrate advised: SD about 1.2mbps, 720p about 2mbps, 1080 about 6-8mbps for lowest bitrates

• HD-MI 1.3a interface, Auto detect the HD-MI input of resolutions

• Support the importation of SDI/HD-SDI, HD-MI, CVBS, YPbPr encoding

• Low resolution channels for applications such as picture-in-picture (PIP: One-seg for ISDB-Tb)

• Audio sampling Rates: 44.1 khz, 32khz, 48KHz

• MPEG-1 Layer II, MPEG-2 AAC-LC, MPEG-4 AAC-LC, MPEG-2 HE-AAC, MPEG-4 HE-AAC audio encoding

• Supports unicast and multicast IP output UDP protocol as well as two identical ASI outputs

• WEB Management and local front panel

• Supports resolution: 1080i@50/59.94/60fps, 720p@50/59.94/60fps, 480i, 576i

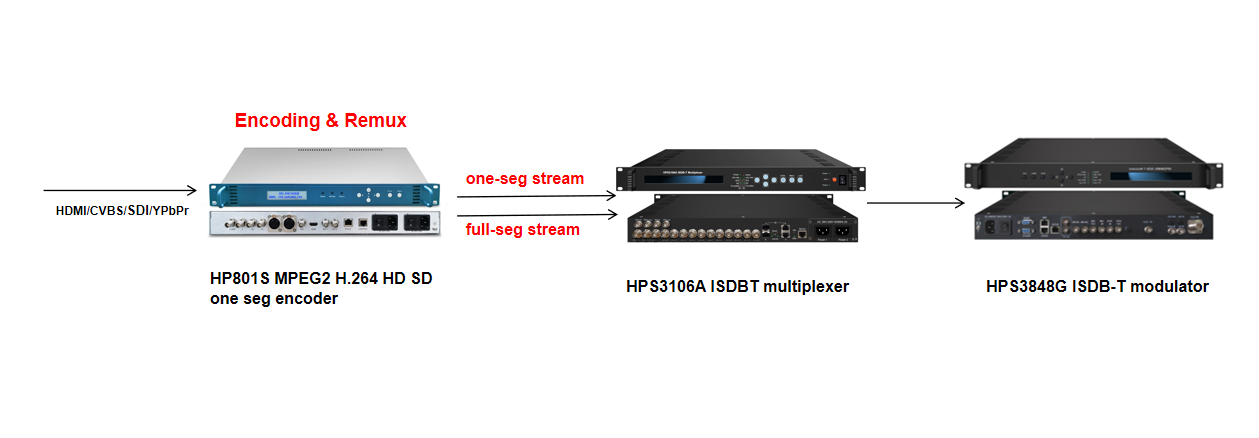

• DVB/ISDB-Tb compliance with 2 streams output simultaneously: for one-seg and full-seg

• Built-in time base correction and video pre-processing

• Easy-to-Use System Management

• Passed the EU CE certification

Main application

• Digital TV and IPTV headend system

• Point to Point video and audio over IP

• Remote live Rebroadcasts and real-time transmission

• Building, campus or metropolitan-area
