HP902D
CatCast
8543709990

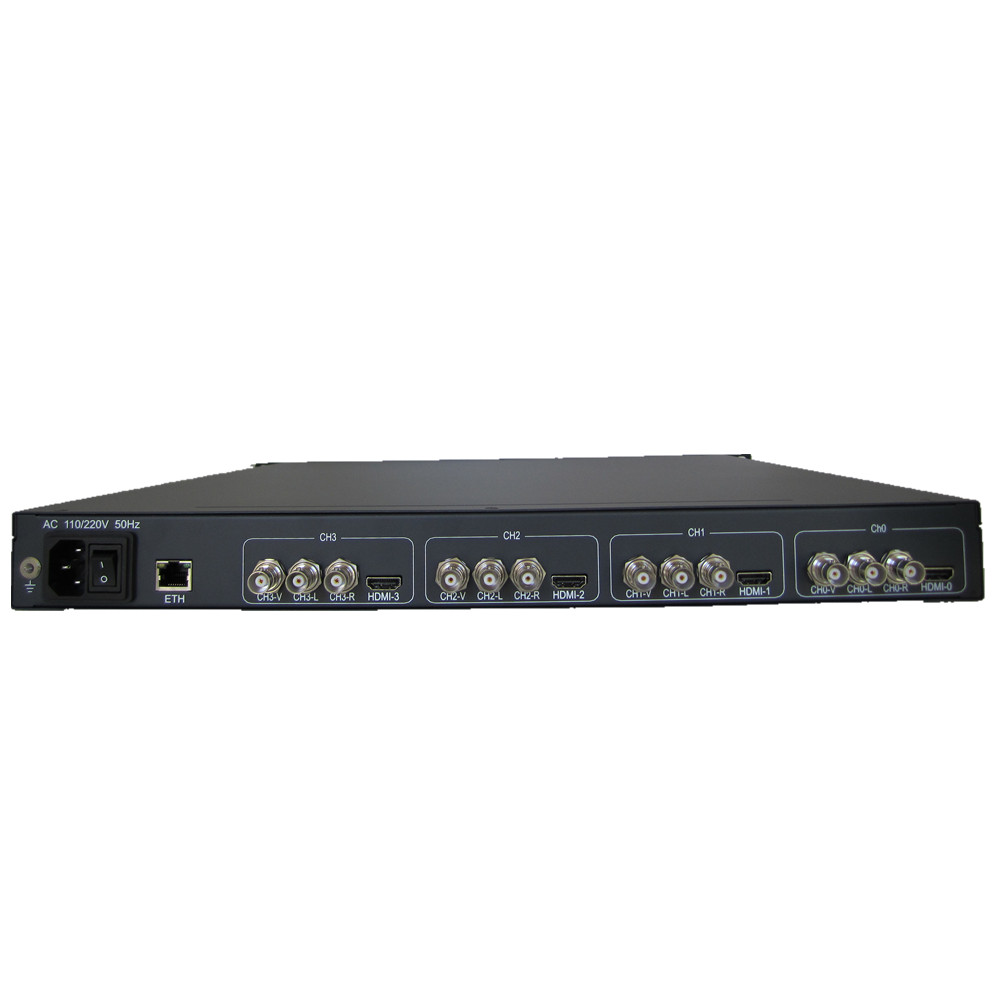

HP902D 4 in 1 Flash HD IP Encoder support HTTP/RTMP/RTP/RTSP/UDP protocol
HP902D 4in1 H.264 Flash HD Encoder is a professional IPTV broadcasting quality multimedia encoder, for high definition video for real-time streaming applications. It provides flexible streaming for low-bandwidth transmission applications using MPEG-4 AVC/ H.264 video and AAC audio encoding, outputting FLV over RTMP streaming, with seamless connection to Adobe Flash Media Server, RED5, Wowza, achieving live FLASH video . It also supports TS over HTTP streaming output and can achieve low latency HD video transmission over the i nternet . HP902D 4in1 H.264 Flash HD Encoder is perfectly used for IPTV live broadcasting, mobile video broadcast ing, hotel VOD, IPTV ponit to point streaming, E -learning, distance education, video conferencing, marketing and other multimedia streaming applications.
Features
u Support 4 HDMI channels input (support HDCP)
u Support 4 CVBS input
u Powered by DSP encoding chip and Linux operating system
u High quality and low bit rate encoding;
u H.264 High profile video encoding and AAC audio encoding;
u Support MPEG-4 AVC/ H.264 high profile level 4.1/4.0 video encoding
u IPTV stream output, Supports FLV OVER RTMP,TS OVER UDP and TS OVER HTTP;
u Video resolution rescaling
u Support VBR/CBR video bit rate mode
u S upport 720P, 1080I, 1080P HD video format and normal SD video format
u support real-time live streaming to Adobe FMS released
u Support Microsoft WMS publish from time to time live streaming
u Real-time output bit-rate monitoring
u Supports terminal wide range of output devices including:PC/iPhone/iPad/Android
u Support remote control via WEB -GUI network management , Supports a variety of devices including PC/Pad/Smart phones
u Update device through ethernet port
Technical Specification
Input | HD HDMI | 4xHDMI (support HDCP) |
SD CVBS | 4xCVBS (composite video&audio) | |
Output | IP stream | TS over HTTP,FLV over RTMP, TS over UDP, TS over CMP |
Standard | (MPEG-4 AVC/H.264)ISO/IEC14496-10 | |
Output bitrate | 1 to 20Mbps(4:2:0)per channelp | |
Control | WEB GUI management | |
Video Coding | MPEG-4 AVC/H.264 Encoding H.264 HP@L4 MP@L3 | |
H264 Adaptive Field Frame(AFF) | ||
H264 field based (FB) | ||
1920*1080*60p/50p, 1920*1080*60i/50i 1280*720*60p/50p, 720*480*60i(NTSC) 720*576*50i(PAL), 480x320p/i, 320x240p/i | ||
Audio | Bitrate | 30kb/s~384kb/s |
Property | MPEG-1 layer 2,MPEG4 LC-AAC | |
Sample bitrate | 24Bit | |
General Features | Size | 44mm*482mm*410mm(1RU) |
Environment | 0~45℃(work), -20~80℃(Storage) | |
Power | 100-240VAC±10%, 50Hz,25W |
