HP805D
CatCast
8543709990

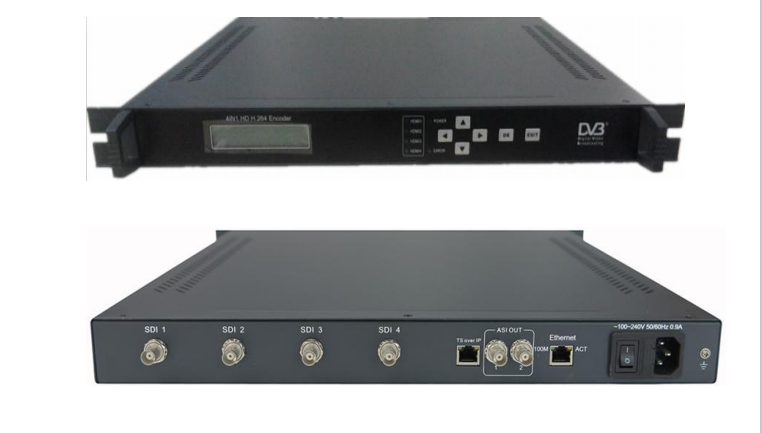

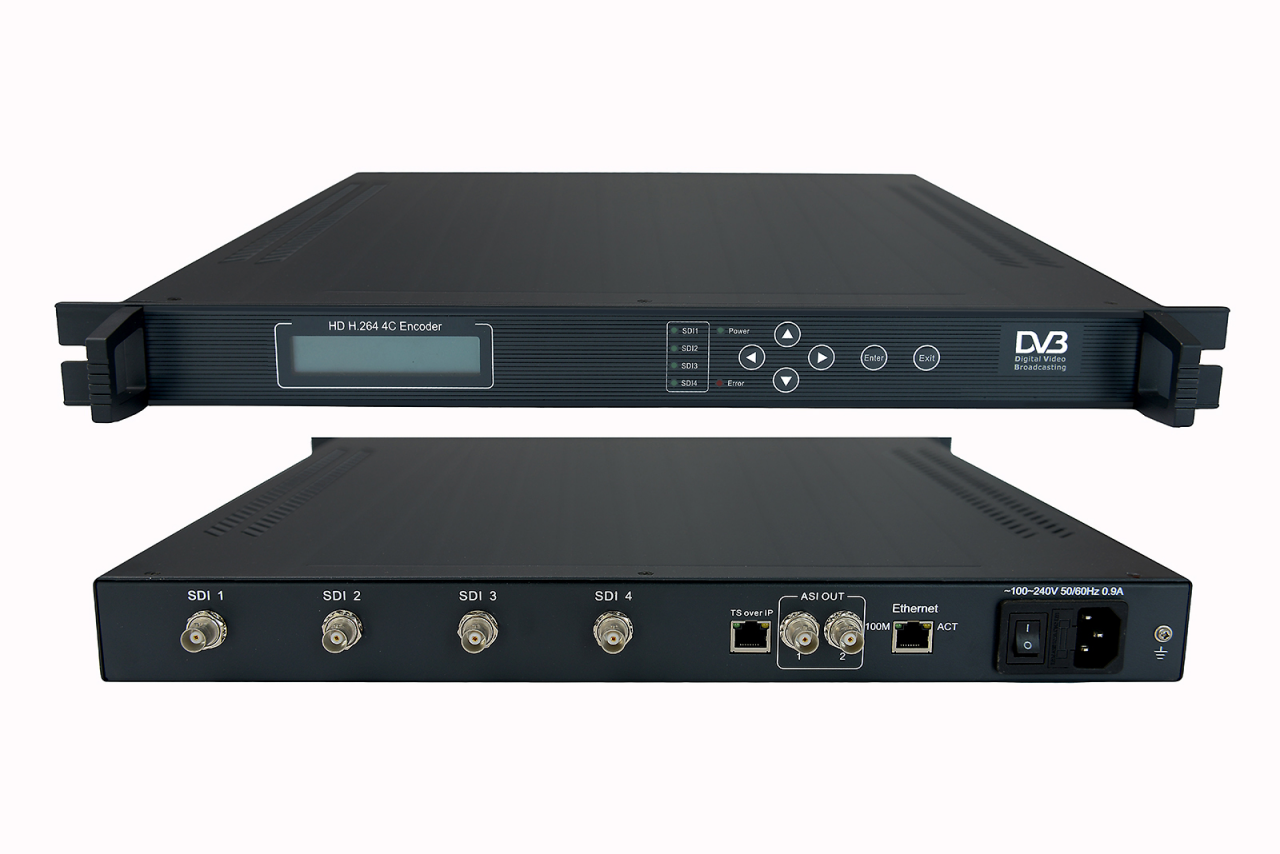

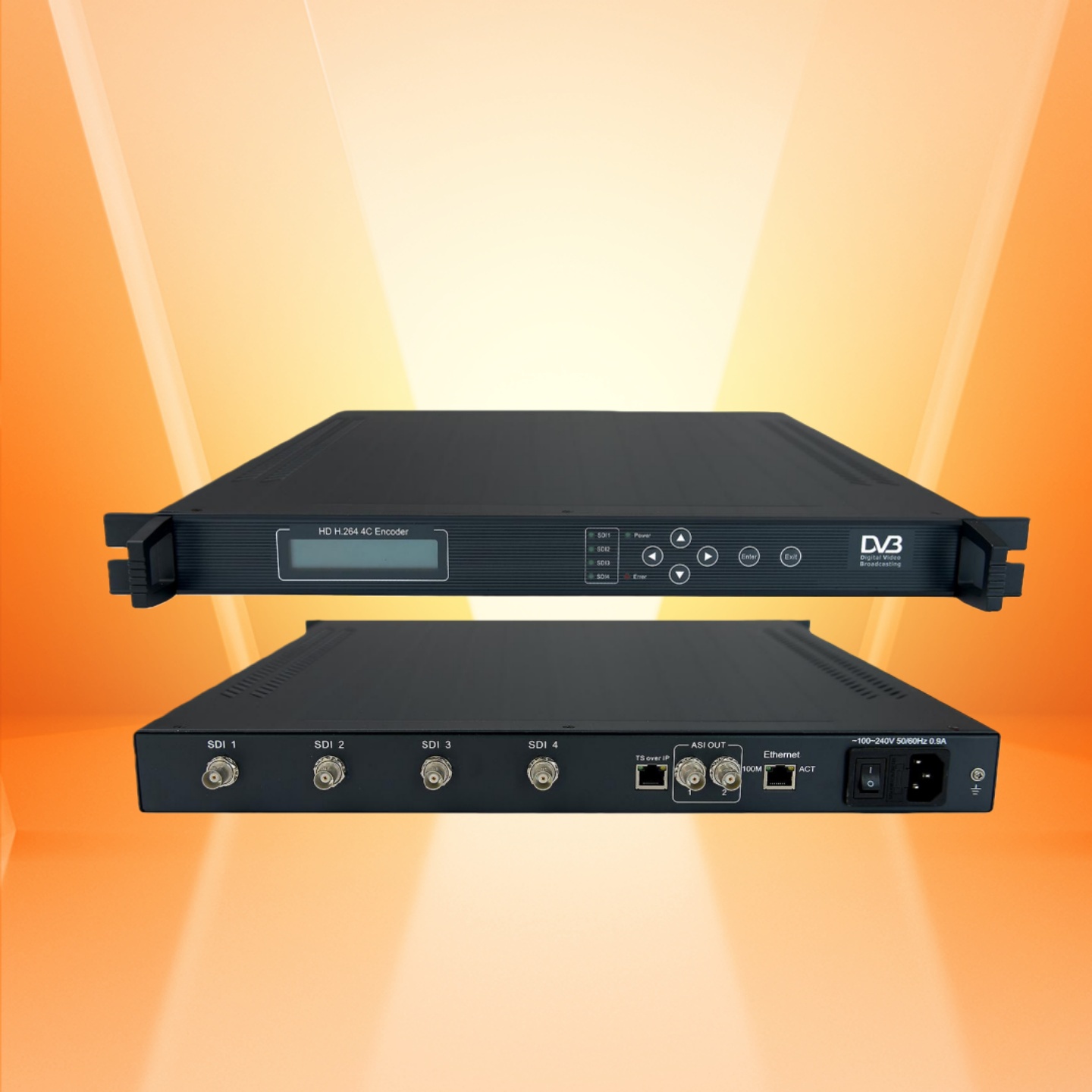

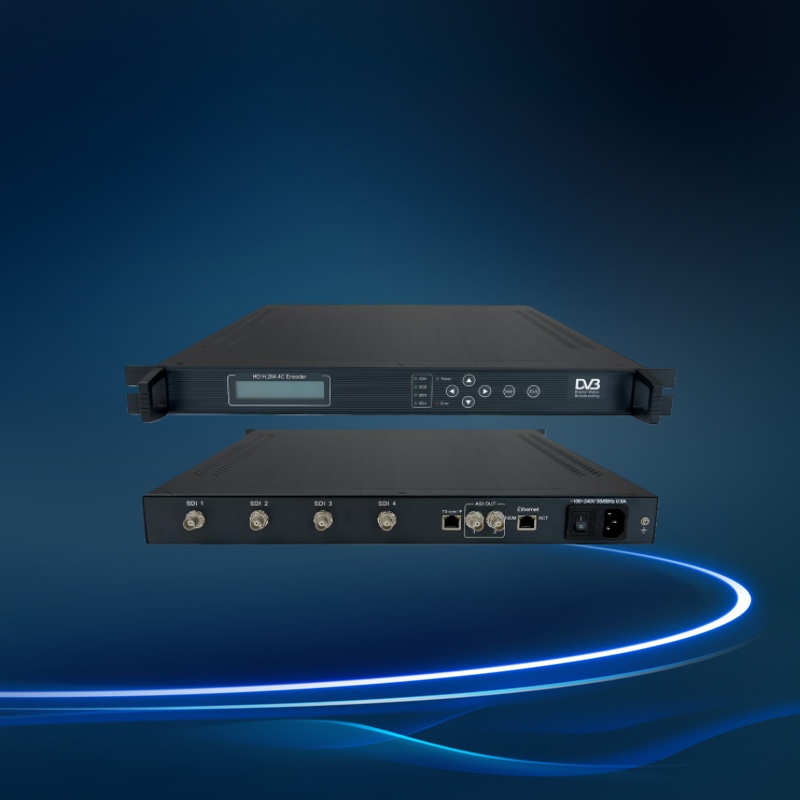

HP805D 4 in 1 SDI MPEG-4 H.264 HD Encoder with IP output
4 in 1 HD-SDI MPEG-4 AVC/H.264 high definition (HD) IPTV encoder is a user-friendly, powerful encoder with multi-service capability, flexibly delivering multiple full and low resolution services to a range of devices. It supports multiple HD formats including 1080i/p, 720p. Besides it supports TS (UDP) over IP output, combined with 4 HD-SDI inputs. Definitely, it conforms to the H.264 standard from the ITU.
Features
u Low bit rate
u H.264 compression
u 100M IP output
u 4 SDI inputs
u Real-time encoding and generate four SPTS /Multicast
u Support multiple HD formats including 1080i, 720p
u LCD/NMS management
u H.264/AVC High Profile Level 4.0 video encoding support, advanced video pretreatment algorithm
Technical Specification
| Input | 4×SDI | BNC interface |
Video Coding | 4:2:0 encoding H.264 HP@L4 MP@L3 | |
| H.264 Adaptive Field Frame (AFF) | ||
| H.264 Field-Based (FB) | ||
| full HD: 1920×1080×60/50i/p, 1280×720×60p/50p, 720×480×60i (NTSC), 720×576×50i (PAL) | ||
| Standard | ISO/IEC14496-10 (H.264/MPEG-4 AVC) | |
Audio Coding | Bitrate | 128, 160, 192, 224, 256, 320, 384Kbps |
| Property | MPEG-1 Layer2 | |
| Sample Bitrate | 32KHz, 44.1KHz, 48KHz | |
Output | 2×ASI | DVB standard, BNC interface |
IP | IP/UDP (TS over IP), SPTS/Unicast/Multicast | |
| Output Bitrate | 1 to 20Mbps (4:2:0) per channel | |
Control | NMS (Ethernet port, RJ-45), Keyboard + LCD | |
General Features | Size | 482mm×410mm×44mm |
| Temperature Range | 0~45°C (Operation); -20~80°C (Storage) | |
| Power | 100-240VAC, 50Hz, 25W | |
