HPS812D
Catcast

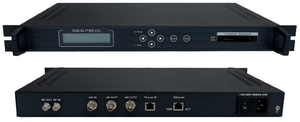

HPS812D 4 in 1 DVB-C,(T),S/S2 IRD
Product Introduction
HPS812D IRD is Catcast’s new design which integrates demodulation , de-scrambler in one case to convert RF signals into TS output after re-mux.It is a 1-U case which supports 4 tuner inputs. The 4 CAMs/CIs accompanied can descramble the programs input from encrypted RF, ASI and IP. The CAM requires NO unsightly external power cords, cables, or additional remote control device. BISS function is also embedded to descramble programs from any input. Its pluggable structure design greatly facilitates the change of Tuner modules as needed. To meet customers’ various requirements, HPS812D is also equipped with 1 ASI and 1 IP input for re-mux, and output with 2 ASI ports and IP port.
Key Features
* 4 Tuner inputs (DVB-C, (T), S/S2 Optional)
* 1 ASI & 1 IP (UDP) input for re-mux
* One CAM can decrypt multiple programs from Tuners/ASI/IP
* Support BISS descrambling(Up to 120 Mbps)
* 2 independent ASI output
* IP (1 MPTS & 8 SPTS) over UDP and RTP/RTSP output;
* Support maximum 128 PID mapping per input
* Pluggable and changeable demodulator modules
* LCD display, Remote control and Firmware, web NMS management
* Updates via web
Principle Chart
Technical Specifications:
Input
4x RF (DVB-C, (T), S/S2 optional), F type |
1×ASI input for de-mux, BNC interface |
4xIP input for de-mux (UDP) |
Tuner Section
DVB-C | ||
Standard | J.83A(DVB-C), J.83B, J.83C | |
Input Frequency | 47 MHz~860 MHz | |
Constellation | 16/32/64/128/256 QAM | |
DVB-(T) | ||
Input Frequency | 44-1002 MHz | |
Bandwidth | 6M, 7M, 8M | |
DVB-S | ||
Input Frequency | 950-2150MHz | |
Symbol rate | 1-45Mbauds | |
Signal Strength | - 65- -25dBm | |
Constellation | 1/2, 2/3, 3/4, 5/6, 7/8 QPSK | |
DVB-S2 | ||
Input Frequency | 950-2150MHz | |
Symbol rate | QPSK/8PSK1~45Mbauds | |
Code rate | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 | |
Constellation | QPSK, 8PSK | |
Output
IP | 48*SPTS over UDP, RTP/RTSP. 1000M Base-T Ethernet interface (unicast/multicast) 4*MPTS over UDP, RTP/RTSP. 1000M Base-T Ethernet interface, for RF in passthrough (one-to-one) |
ASI | 4 groups BNC interface, for RF or IP in passthrough (one-to-one) |
System
Local interface | LCD + control buttons |
Remote management | Web NMS Management |
Language | English |
General
Power supply | AC 100V~240V |
Dimensions | 482*400*44.5mm |
Weight | 3 kgs |
Operation temperature | 0~45℃ |
