HP704A
Catcast

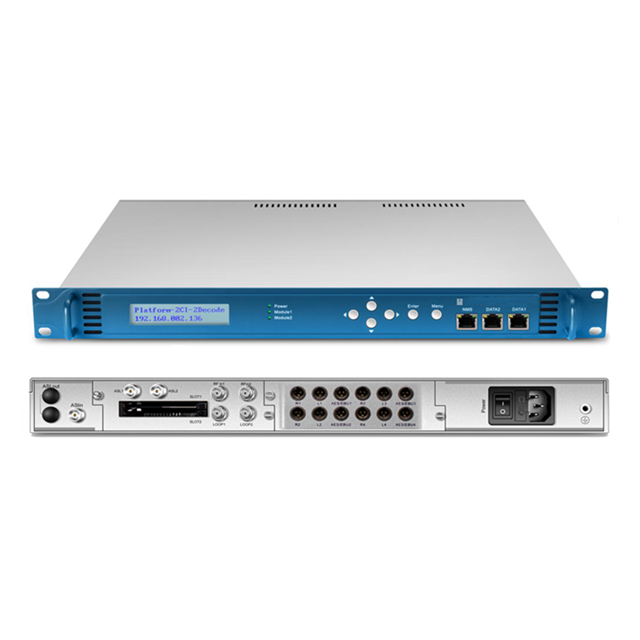

HP704A 2 DVB-C DVB-T DVB-S2 ASI IP Satellite Decoder
Overview
HP704A Satellite Audio Decoder complying with DRA/AC3/AAC/MPEG standards. It supports 2*RF (DVB-S/S2,DVB-T/(T), DVB-C ) inputs, 2*IP inputs, 1 ASI input, 4 channels audio decoding outputs on both AES/EBU and analog stereos. It is widely used in audio network broadcasting station.
Key Features
l Support RF/IP/ASI input
l Support AES/EBU/Analog Stereo/ASI/IP output
l Support DRA/AC3/EAC3/AAC/MPEG audio decoding
l Support AVS+/H.265/H.264/MPEG2 video decoding
l 2 independent CAM card can decrypt two programs
l Resolution can be automatically identified or manually set
l Friendly user interface to facilitate the operation of the menu system and all operations can be completed on the LCD
l B/S based web management
l Support dynamic monitoring of signal input strength and SNR and support signal lock-lose alarm
Application category
l DTV head-end equipment
l DTV interface converter, facilitate the conversion between different interfaces of various devices
l Support VOD in IPTV system
l Broadcast monitoring
Specifications
RF input |
DVB-S/S2 input | Input port | 2*RF input, 2*RF loopout, 75Ω |
Input frequency | 950~2150MHz | ||
Input level | -25~-65dBm | ||
Symbol rate | 1~45Msps | ||
LNB power supply | 13V, 18V, off , 22KHz | ||
Constellation | QPSK, 8PSK | ||
DVB-T/(T) input | Input port | 2*RF input, 2*RF loopout, 75Ω | |
Input frequency | 44~1002MHz | ||
Input level | -20~-100dbm | ||
Modulation mode | DVB-T: QPSK, 16/64 QAM DVB-(T): QPSK, 16/64/256 QAM | ||
Bandwidth | 6/7/8 MHz | ||
DVB-C input | Input port | 2*RF input, 2*RF loopout, 75Ω | |
Input frequency | 48~862MHz | ||
Input level | 45~75dbuV | ||
Modulation mode | 16/32/64/128/256QAM | ||
ASI in/ASI output | Interface | 1*BNC input, 75Ω | |
Interface | 2*BNC output, 75Ω | ||
Bitrate | ≤200Mb/s | ||
TS over IP | Interface | 2*RJ-45, 1000 Base-T | |
Effective rate | 900Mb/s (1000 Based-T) | ||
IP protocol | UDP/RTP, Unicast, Multicast | ||
Audio decoding | Decoding format | MPEG-1 LayerI/II, MPEG-2 layer II, MPEG-2 AAC, MPEG-4 AAC LC, 2-CHANNEL/5.1 CHANNEL AC3/DRA/EAC3 | |
Analog audio output | Interface | 4*XLR(Mini CANNON) | |
Output audio format | Left, Right, Dual Mono, Stereo | ||
Digital audio output | Interface | 4*AES/EBU(MiniCANNON) | |
Local and remote management | Interface | 1*RJ-45, 10/100 Base-T | |
Remote management | HTTP Web | ||
Local management | Front pannel button and LED | ||
Miscellaneous | Dimension (W×L×H) | 450mm×350mm×44mm | |
Net Weight | 5Kg | ||
Power | AC 90V~250V, 50/60Hz | ||
Consumption | 24W (Power supply without LBN) | ||

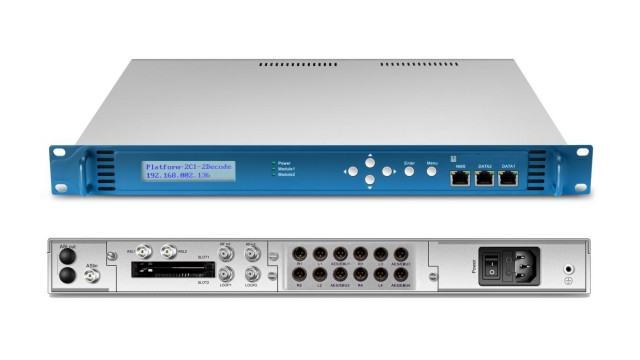

HP704A 2 DVB-C DVB-T DVB-S2 ASI IP Satellite Decoder
