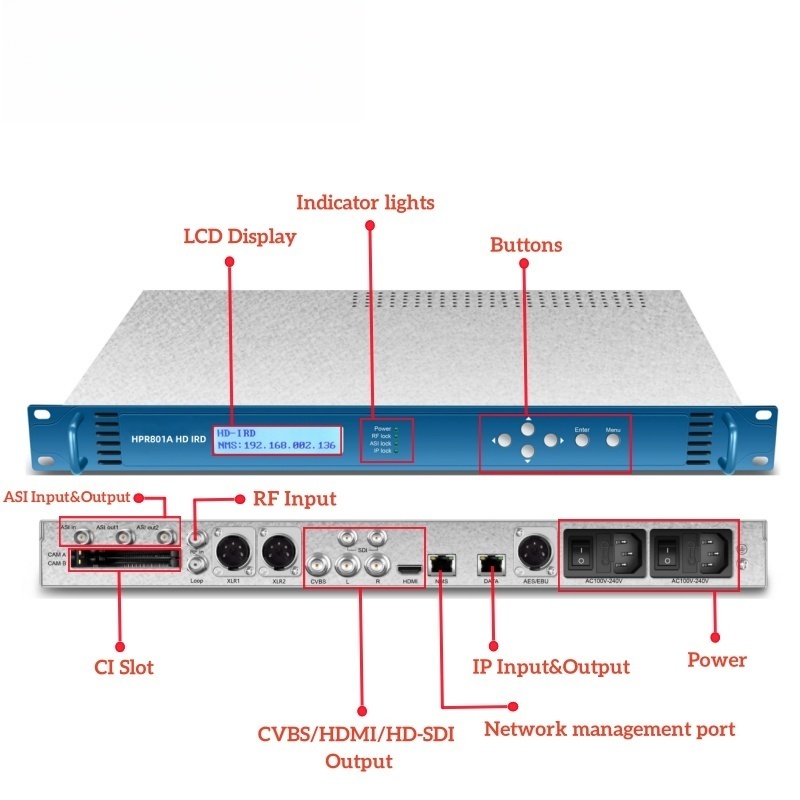

HPR801A
CATCAST
HPR801A HD IRD support AVS+/H.265/H.264/MPEG2 video decoding and DRA/AC3/EAC3/AAC/MPEG audio decoding. It support DVB-S/S2,DVB-T/T2,DVB-C tuner/ASI/IP input and 1080P/1080I/ 720P/576I/480I output resolution.The two CAMs/CIs accompanied and BISS modules can descramble the programs input from encrypted Tuner, ASI and IP.
Key Features
Support RF input (DVB-S/S2/S2X,DVB-T/T2,DVB-C tuner) optional, ASI/IP input
Support CVBS/HDMI/SD/HD-SDI/AES/EBU/analog stereo/ASI/IP output
Support DRA/AC3/EAC3/AAC/MPEG audio decoding
Support AVS+/H.265/H.264/MPEG2 video decoding
Each CAM can decrypt multiple programs from Tuner/ASI/IP
Support Biss_1/Biss_E descrambling mode
Support HD and SD signal input
Resolution can be automatically identified or manually set
Friendly user interface to facilitate the operation of the menu system and all operations can be completed on the LCD
B/S based web management
Support dynamic monitoring of signal input strength and SNR and support signal lock-lose alarm
Application category
DTV head-end equipment
Receiving DVB-S/S2/S2X, DVB-T/T2 and DVB-C DTV signals
Support VOD and IPTV
Broadcast monitoring
Specifications
RF input | DVB-S/S2/S2X input | Input port | 1*RF input, 1xRF loopout, 75Ω |
Input frequency | 950~2150MHz | ||
Input level | -25~-65dBm | ||
Symbol rate | 1~45Msps | ||
LNB power supply | 13V, 18V, off , 22KHz | ||
Constellation | QPSK, 8PSK | ||
DVB-T/T2 input | Input port | 1*RF input, 1*RF loopout, 75Ω | |
Input frequency | 44~1002MHz | ||
Input level | -20~-100dbm | ||
Modulation mode | DVB-T: QPSK, 16/64 QAM DVB-T2: QPSK, 16/64/256 QAM | ||
Bandwidth | 6/7/8 MHz | ||
DVB-C input | Input port | 1*RF input, 1*RF loopout, 75Ω | |
Input frequency | 48~862MHz | ||
Input level | 45~75dbuV | ||
Modulation mode | 16/32/64/128/256QAM | ||
ASI input/output | Input/output interface | 1*BNC input, 75Ω; 2*BNC output, 75Ω | |
Input/output bitrate | ≤200Mb/s | ||
TS over IP | Interface | 1*RJ-45, 10/100 Base-T | |
Effective rate | 90Mb/s (100 Based-T) | ||
IP protocol | UDP/RTP, Unicast, Multicast | ||
HDMI output | Interface | 1*HDMI | |
Resolution and frame rate | 1080P60/1080P50/1080I60/1080I50/720P60/720P50/576P/576I/480P/480I | ||
Video decoding | Decoding format | MPEG-2/MPEG 4/H.264 AVC/H.265(HEVC)/AVS+ | |
Audio decoding | Decoding format | MPEG-1 LayerI/II, MPEG-2 layer II, MPEG-2 AAC, MPEG-4 AAC LC, 2-CHANNEL/5.1 CHANNEL AC3/DRA/EAC3 | |
HD/SD-SDI output | Interface | 2*BNC, 75Ω | |
SD-SDI output | SMPTE 259M, 270Mb/s(10bit) | ||
HD-SDI resolution | SMPTE 292M, 1.485 Gbit/s(20bit) | ||
Analog audio output | Interface | 2*BNC, 2*XLR | |
Output audio format | Left, Right, Dual Mono, Stereo | ||
Digital audio output | Interface | 2*AES/EBU | |
Analog video output | Video interface | 1*BNC, 75Ω | |
CVBS format | PALBDGHI, PALN, NTSCM, PALN-C, NTSCM, NTSCM443, PALM, SECAM, NTSCMJ | ||
Data output | Subtitle | DVB/EBU | |
Teletext | DVB/EBU | ||
Closed Caption | EIA 608, EIA 708, EIA 608-to-708 | ||
Local and remote management | Interface | 1*RJ-45, 10/100 Base-T | |
Remote management | HTTP Web | ||
Local management | Front pannel button and LED | ||
Miscellaneous | Dimension (W×L×H) | 450mm×280mm×44mm | |
Net Weight | 3Kg | ||
Power | AC 90V~250V, 50/60Hz | ||
Consumption | 24W(Power supply without LBN) |
