HP3708D
Catcast
85437099

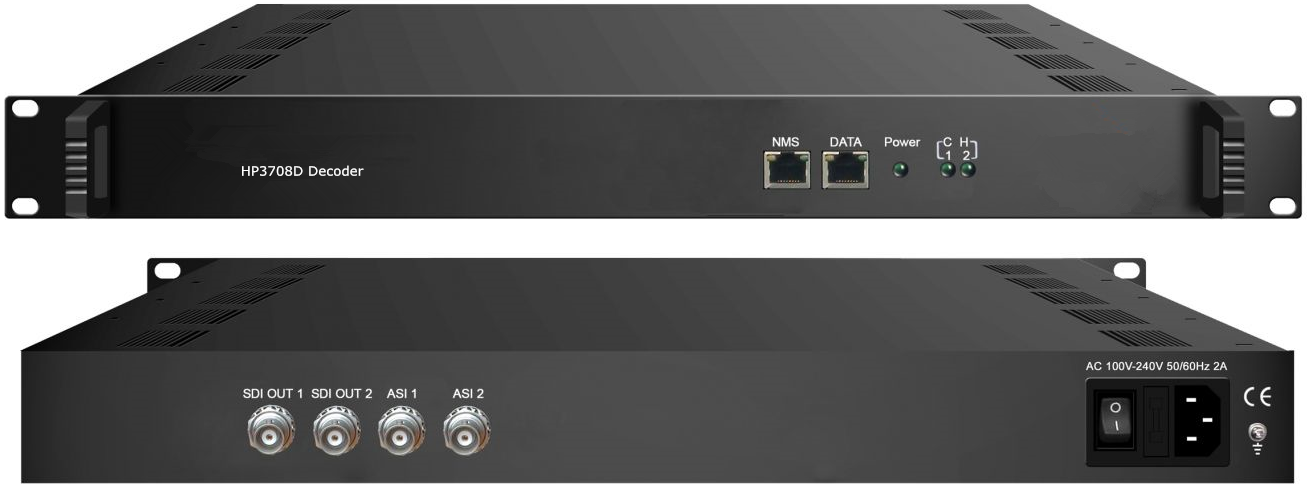

HP3708D IP/ASI to SDI HD Decoder
Product Overview
HP3708D is a HD IP decoder designed by Catcast Digital with proprietary intellectual property rights.
It is a 1-U case supporting both IP and ASI input. After decoding process, it outputs 2 channels of HD/SD-SDI videos with dual stereo audios embedded in each port. It also supports 1 IP (MPTS) output and featured with dual bi-directional ASI ports for input and output alternatively.
Key Features
2 IP input and 1 IP output
2 bi-directional ASI ports with input and output alternatively
2*HD/SD-SDI decoding out with dual stereo audios embedded in each port
MPEG-2 and MPEG-4 AVC/H.264 Decoding for video
MPEG1 Layer2, LC-AAC, HE-AAC, AC3 (2.0/5.1), AC3 Passthrough for audio
Support CC/Subtitle
Easy manage with web-server remote control

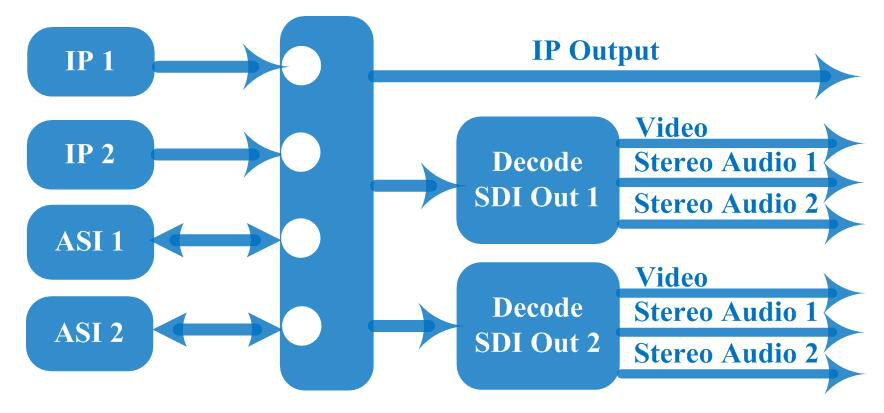

Principle Chart
HP3708D IP/ASI to SDI HD Decoder
Product Overview
HP3708D is a HD IP decoder designed by Catcast Digital with proprietary intellectual property rights.
It is a 1-U case supporting both IP and ASI input. After decoding process, it outputs 2 channels of HD/SD-SDI videos with dual stereo audios embedded in each port. It also supports 1 IP (MPTS) output and featured with dual bi-directional ASI ports for input and output alternatively.
Key Features
2 IP input and 1 IP output
2 bi-directional ASI ports with input and output alternatively
2*HD/SD-SDI decoding out with dual stereo audios embedded in each port
MPEG-2 and MPEG-4 AVC/H.264 Decoding for video
MPEG1 Layer2, LC-AAC, HE-AAC, AC3 (2.0/5.1), AC3 Passthrough for audio
Support CC/Subtitle
Easy manage with web-server remote control
Principle Chart
