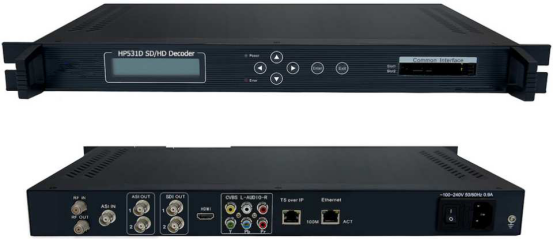

HP531D HD/SD DVB-S/S2 RF MPEG4 Avc/H. 264 and MPEG2 Decoder

Input:RF,ASI,IP Output:ASI,SD CVBS,Audio,SDI,HDMI,YPbPr,IP Video Decoding:SD: MPEG-2 SD 4:2:0 MP@ML,SD: MPEG-4 AVC SD MP@L4,HD: MPEG-4 AVC HD MP@L5.0/HP@5.0 Audio Decoding:MPEG-1 layer2/MP3 Size:1U Min Oder:1pcs

HD/SD DVB-S/S2 RF MPEG4 AVC/H.264 and MPEG2 Decoder

HP531D SD/HD satellite decoder with CI slot has 1*DVB-S/S2 RF and 1*ASI input interfaces and supports MPEG4 AVC/H.264 and MPEG2 video encoding. The input DVB satellite signal will be demodulated to TS stream and output by AV, ASI, SDI, HDMI, YPbPr, or IP interface. It has 2 CI slots, supporting 2 CAM cards. It provides powerful signal receiving, descrambling and decoding, which meets a variety of application requirements. It's one of the main digital head-end equipments for receiving and encrypted satellite programs.
Main Feature
1. Support DVB-S/S2 or ASI input
2. Support 2 CI slots
3. Support AV, ASI, SDI, HDMI, YPbPr, IP output
4. Support MPEG-2,MPEG-4,H.264 video decoding
5. Support audio resample (32KHz, 44.1KHz, 48KHz)
6. Real-time monitoring of input and output signal
7. LCD/Keyboard control by front panel and network management by Ethernet

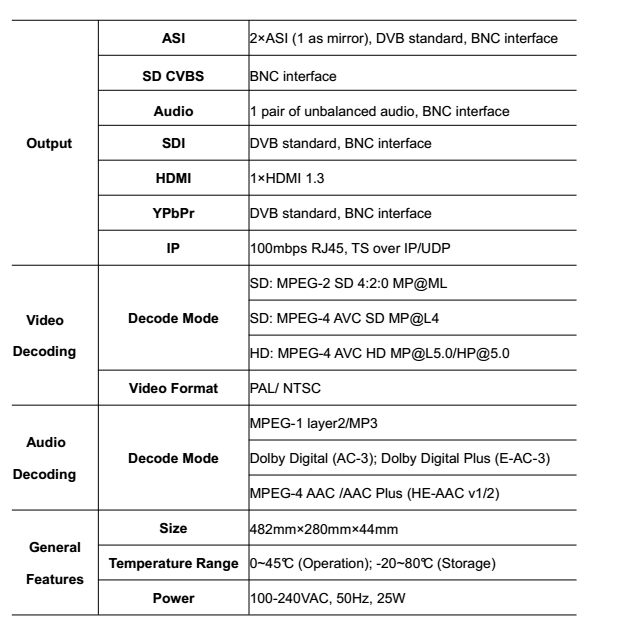

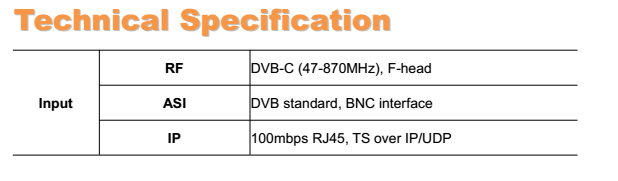

Technical Specification

We offer not only products, but also our after-sales service. Welcome to contact us to know more.
