HP801ND
Catcast

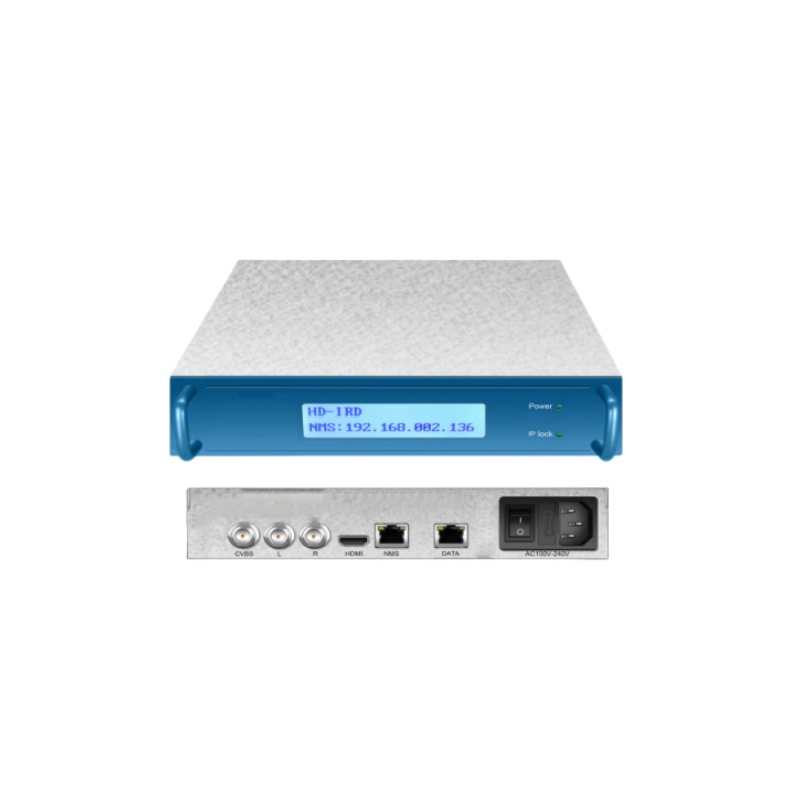

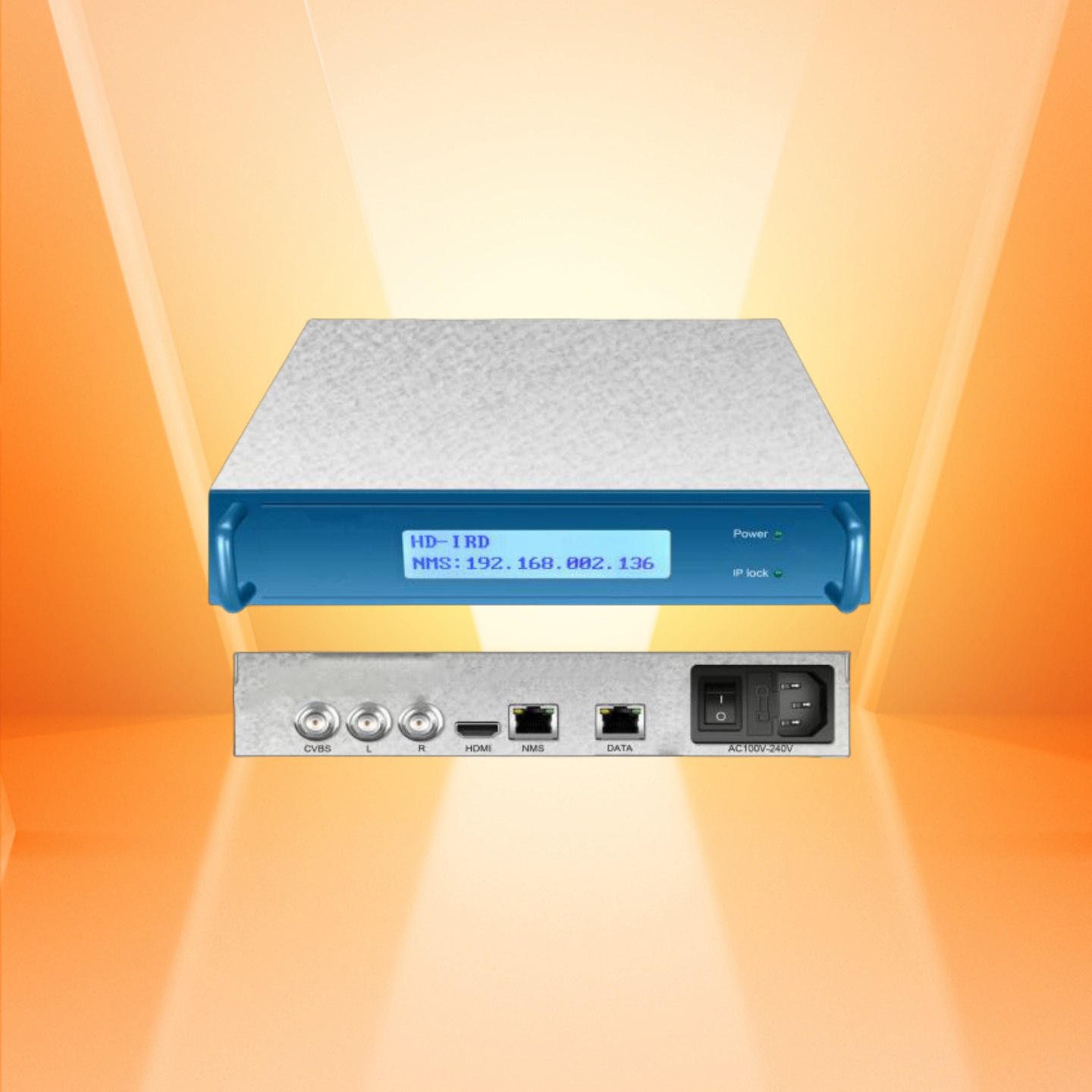

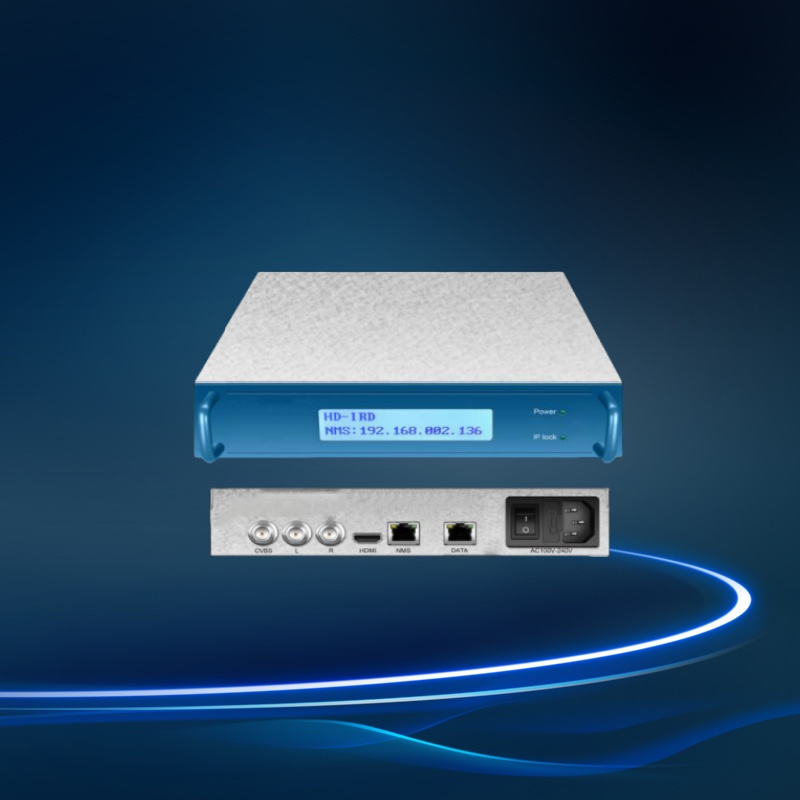

HP801ND HD IRD Network Decoder (1/2U racked)
Overview
HP801ND HD IRD Network decoder support AVS+/H.265/H.264/MPEG2 video decoding and DRA/AC3/EAC3/AAC/MPEG audio decoding. It also support HTTP/HTTPS/HLS/M3U8/RTSP/RTMP/MMS/Bluary IP input protocol (SRT is optional) 1080P/1080I/ 720P/576I/480I output resolution.
Key Features
* Support multiple network protocol inputs
* Support CVBS/HD-SDI/HDMI/IP UDP output ( SDI output is optional) AES/EBU,2xXLR(CANNON) output, optional
* Support HTTP/HTTPS/HLS/M3U8/RTSP/RTMP/MMS/Bluray IP protocol (SRT is optional)
* Support AVS+/H.265 HEVC/H.264/MPEG2 video decoding
* Support DRA/AC3/EAC3/AAC/MPEG audio decoding
* Support Biss_1/Biss_E descrambling mode
* Support HD and SD signal input
* Resolution can be automatically identified or manually set
* Friendly user interface to facilitate the operation of the menu system and all operations can be completed on the LCD
* B/S based web management
Application category
Receiving live webcast live programs
Support VOD in IPTV system
Broadcast monitoring
Specifications
TS over IP | Interface | 1*RJ-45, 10/100 Base-T |
Effective rate | 90Mb/s (100 Based-T) | |
Frame length | (1~7)x188 adjustable byte | |
IP output protocol | UDP/RTP/HTTP/HTTPS/HLS/M3U8/RTSP/RTMP/MMS/Bluray (SRT is optional) | |
HDMI output | Interface | 1*HDMI |
Resolution and frame rate | 1080P60/1080P50/1080I60/1080I50/720P60/720P50/576P/576I/ 480P/480I | |
Embed audio | 1stereo | |
Video decoding | Decoding format | MPEG-2/MPEG 4/H.264 AVC/H.265(HEVC)/AVS+ |
Audio decoding | Decoding format | MPEG-1 LayerI/II, MPEG-2 layer II, MPEG-2 AAC, MPEG-4 AAC LC, 2-CHANNEL/5.1 CHANNEL AC3/DRA/EAC3 |
HD/SD-SDI output | Interface | 2*BNC, 75Ω |
SD-SDI output | SMPTE 259M, 270Mb/s(10bit) | |
HD-SDI resolution | SMPTE 292M, 1.485 Gbit/s(20bit) | |
Output | Level 800mV+-20 p-p | |
Analog audio output | audio interface | 2*BNC, 2*XLR |
Output audio format | Left, Right, Dual Mono, Stereo | |
Digital audio output | Interface | 1*AES/EBU |
Analog Video output | video interface | 1*BNC, 75Ω |
Output Level | 1.0Vp-p±5% | |
CVBS format | PALBDGHI, PALN, NTSCM, PALN-C, NTSCM, NTSCM443, PALM, SECAM, NTSCMJ | |
Video SNR | ≥56dB | |
Video sync amplitude | 300±20mVP-P | |
Video amplitude characteristic | ±0.8Db(4.8MHz) ±1dB(4.8-5MHz) ±0.5/-4dB(5.5MHz) | |
Video output amplitude | 700±30mVP-P | |
Differential gain | ≤8% | |
Data output | Subtitle | DVB/EBU |
Teletext | DVB/EBU | |
Closed Caption | EIA 608, EIA 708, EIA 608-to-708 | |
Local and remote management | Interface | 1*RJ-45, 10/100 Base-T |
Remote management | HTTP Web | |
Local management | Front pannel button and LED | |
Device upgrade | IP | |
Miscellaneous | Dimension (W×L×H) | 450mm×280mm×44mm |
Net Weight | 1.2 Kg | |
Power | AC 90V~250V, 50/60Hz | |
Consumption | 24W | |
Temperature | 0~45℃(work);-10~60℃(Storage) | |
Humidity | 10~90%(Non-Condensing) |
