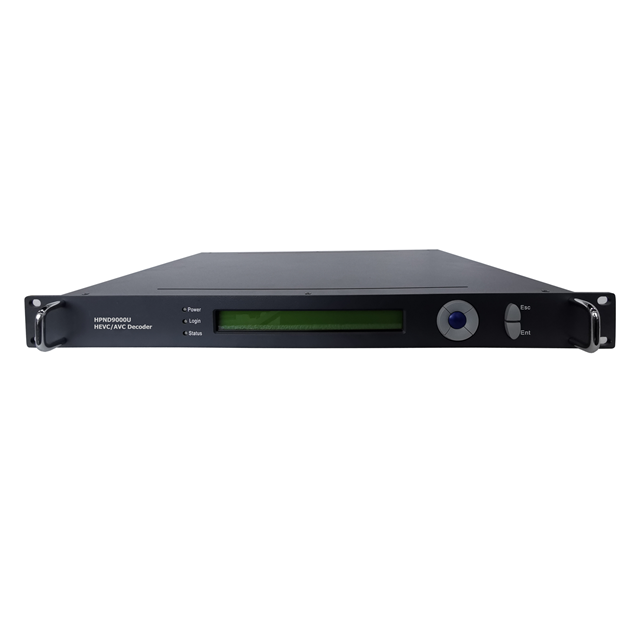

HPND9000U HEVC HD Network Media Decoder
Outline
HPND9000U HEVC/AVC HD Network Media Decoder adopts full hardware decoding, which can decode H.265 (HD and SD) and H.264 (HD and SD) stream and other popular stream, HPND9000U has excellent video performance under the harsh conditions of low network bandwidth and audio reproducibility.
In order to adapt to various complex network audio and video application environments, HPND9000U support multiple protocols media streaming input, such as HLS/HTTP/RTMP/RTP/RTSP/UDP/SRT protocol (SRT is optional).
It has multiple interfaces output: SDI、HDMI、CVBS、XLR、Analog L-R, It is conviently used for high definition video and high fidelity audio transmission and decoding. This full function device makes it ideal for point to point transmission over LAN/Internet, emergency communication, online video live broadcast, remote conference, campus broadcasting, hospital expert consultation.
Key Feature
1. High reliability, embed process,low power
2. H.265/HEVC, H.264/AVC video decoding & AAC audio decoding
3. Support decoding buffer time adjustment
4. Ultra low delay decoding, the decoding delay is less than 160ms
5. IP input, HLS/HTTP, RTSP/RTP, RTMP, UDP, SRT protocol (SRT is optional )
6. HDMI, HD/SD-SDI,CVBS output, XLR, analog audio output
7. Support a variety of HD/SD video format decoding
8. Support 1080p@60fps decoding ability
9. Support multiple audio format decoding
10. Support two-way voice interco, 3.5mm Headphone interface
11. Web-NMS management
Specification
Input | Interface | Ethernet 10/100/1000Mbps (RJ45) |
Protocol | HLS(m3u8) | |
TS UDP (SPTS, MPTS) | ||
TS HTTP | ||
RSTP | ||
RTMP | ||
SRT optional | ||
Vdieo decoding | Max.decoding Capacity | 1920x1080P60 |
Standard | H.264/AVC | |
H.265/HEVC | ||
Audio decoding | Channel | Stereo, Mono-L, Mono-R |
Standard | MP2 | |
MP3 | ||
AAC | ||
AC3 | ||
Output | Video resolution | 1080P50/60, 1080i50/60, 720P50/60, 576i50, 480i60 |
Video interface | SD/HD SDI | |
HDMI (support HDMI DVI) | ||
CVBS | ||
Audio interface | SD/HD SDI embeded | |
HDMIembeded | ||
XLR | ||
Analog L-R | ||
Two-way voice | Input | 3.5mm microphone input |
Output | 3.5mm headphone output | |
Management | Front Panel | 7 Keys + LCD indicator |
Network | Web-NMS | |
General | Weight | 3 KG |
Size | 1U standard | |
Power | AC 110V~ 220V 50/60Hz | |
Consumption | 10W |
