HP702A
Catcast

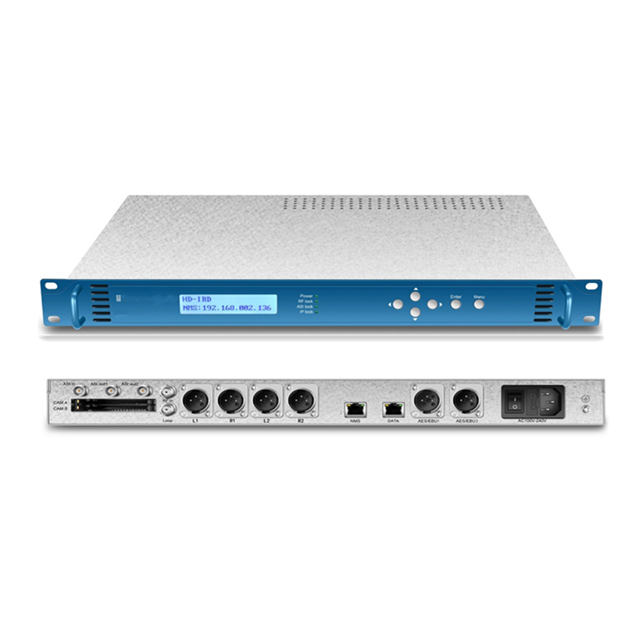

HP702A DRA/AC3/AAC/MPEG Satellite Audio Decoder
Outline
HP702A Satellite Audio Decoder complying with DRA/AC3/AAC/MPEG standards. It supports 1*RF (DVB-S/S2,DVB-T, DVB-C ) inputs, 1*IP inputs, 1 ASI input, 4 channels audio decoding outputs on both AES/EBU and analog stereos. It is widely used in audio network broadcasting station.
Key Features
Support RF/IP/ASI input
Support AES/EBU/analog stereo/ASI/IP
Support DRA/AC3/EAC3/AAC/MPEG audio decoding
Support AVS+/H.265/H.264/MPEG2 video decoding
2 independent CAM card can decrypt two programs
Resolution can be automatically identified or manually set
Friendly user interface to facilitate the operation of the menu system and all operations can be completed on the LCD
B/S based web management
Support signal input strength and SNR dynamic monitoring and support signal lock-lose alarm
Application category
DTV head-end equipment
Receive DVB-S and DVB- C DTV signals
Support VOD in IPTV system
Broadcast monitoring
Specifications
RF input |
DVB-S/S2 input | Input port | 1*RF input, 1*RF loopout, 75Ω |
Input frequency | 950~2150MHz | ||
Input level | -25~-65dBm | ||
Symbol rate | 1~45Msps | ||
LNB power supply | 13V, 18V, off, 22KHz | ||
Constellation | QPSK, 8PSK | ||
DVB-T/(T) input | Input port | 1*RF input, 1*RF loopout, 75Ω | |
Input frequency | 44~1002MHz | ||
Input level | -20~-100dbm | ||
Modulation mode | DVB-T: QPSK, 16/64 QAM DVB-(T): QPSK, 16/64/256 QAM | ||
Bandwidth | 6/7/8 MHz | ||
DVB-C input | Input port | 1*RF input, 1*RF loopout, 75Ω | |
Input frequency | 48~862MHz | ||
Input level | 45~75dbuV | ||
Modulation mode | 16/32/64/128/256QAM | ||
ASI input/output | Input/output interface | 1*BNC input, 75Ω; 2*BNC output, 75Ω | |
Input/output bitrate | ≤200Mb/s | ||
TS over IP | Interface | 1*RJ-45, 10/100 Base-T | |
Effective rate | 90Mb/s (100 Based-T) | ||
Frame length | (1-7)x188 adjustable byte | ||
IP protocol | UDP/RTP, Unicast, Multicast | ||
Audio decoding | Decoding format | MPEG-1 LayerI/II, MPEG-2 layer II, MPEG-2 AAC, MPEG-4 AAC LC, 2-CHANNEL/5.1 CHANNEL AC3/DRA/EAC3 | |
Analog audio output | Interface | 2xXLR(CANNON) | |
Output audio format | Left, Right, Dual Mono, Stereo | ||
Digital audio output | Interface | 2*AES/EBU(CANNON) | |
Local and remote management | Interface | 1*RJ-45, 10/100 Base-T | |
Remote management | HTTP Web | ||
Local management | Front pannel button and LED | ||
Miscellaneous | Dimension (W×L×H) | 450mm×280mm×44mm | |
Net Weight | 3Kg | ||
Power | AC 90V~250V, 50/60Hz | ||
Consumption | 24W(Power supply without LBN) | ||
