HP3908D
Catcast

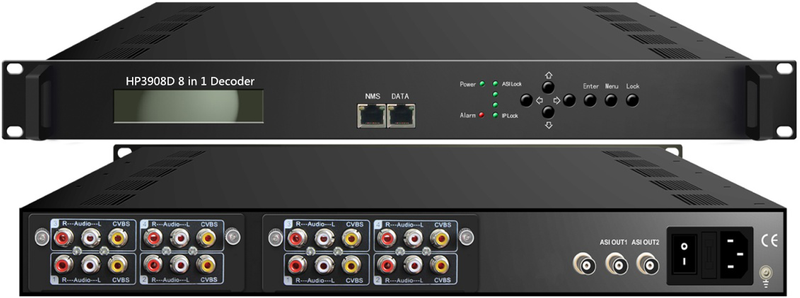

HP3908D 8 in 1 IP to AV Decoder
Overview
HP3908D is a digital decoder designed by Catcast with proprietary intellectual property rights. It is a 1-U case which supports digital TS input via both IP and ASI. After decoding process, it outputs as much as 8 channels of analog A/V signals. Its pluggable structure design greatly facilitates the change of decoder modules as needed.
To meet customers’ various requirements, HP3908D is also equipped ASI output to transfer the TS to other equipment for more purposes.
Key Features
* 8*IP and 1*ASI input
* 8*CVBS video/unbalanced stereo audio decoding out
* MPEG-2/H.264/AVS+ Video Decoding, MPEG1 Lay2/AC3 (2.0) Audio Decoding
* Real-time bit rate monitoring
* High reliability design, stable performance
* Easy manage with LCD and web-server remote control

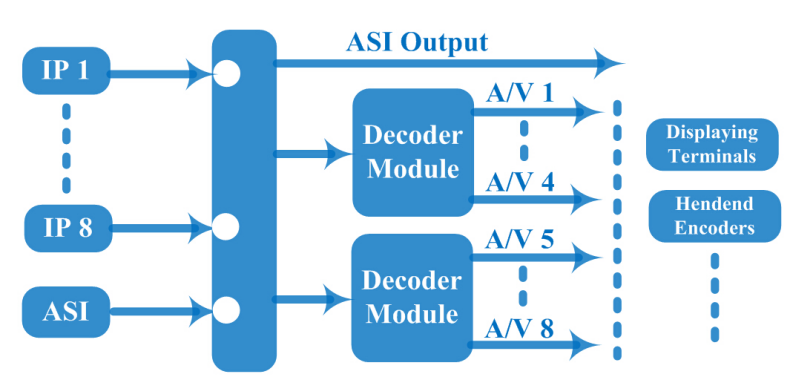

Principle Chart
Specification
Input | 8*IP (MPTS/SPTS) (100Mbps Ethernet) (RJ45) | ||
IP Protocol | UDP and RTP (Unicast/multicast) | ||
1* ASI (BNC) | |||
Decode | Video Format | MPEG-2/H.264/AVS+ | |
Interface | 8* CVBS（RCA） | ||
Video Resolution | 576i@25fps, 480i@29.97fps | ||
Audio Format | MPEG-1 Layer 2, AC3 (2.0) | ||
Interface | 8*Unbalanced stereo (RCA) | ||
General | Operation | LCD display/Control button; Web-server | |
Language | Chinese/English | ||
Dimension (LxWxH) | 44 mm×482 mm×410mm | ||
Environment | 0~45℃(Work)；-20~80℃(Storage) | ||
Power Supply | 220VAC±10%，50Hz | ||
Consumption | <25W | ||

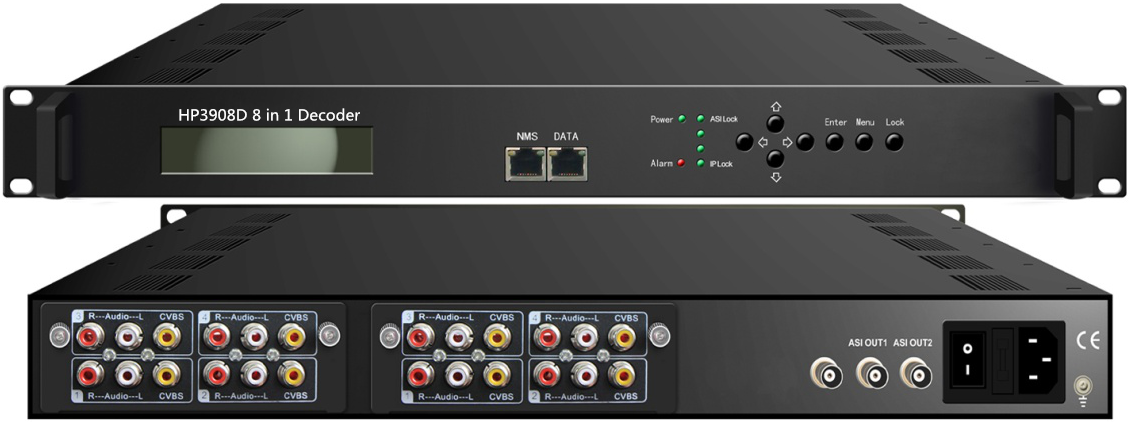

HP3908D 8 in 1 IP to AV Decoder
