HPR801UHD
Catcast

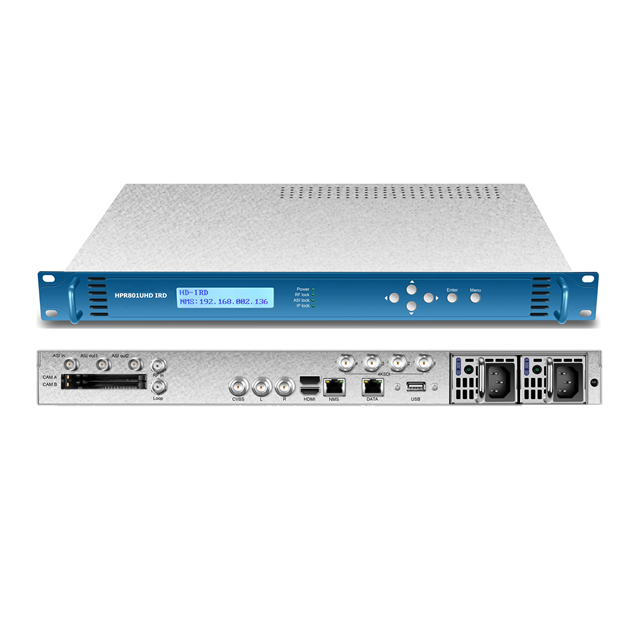

HPR801UHD DVB-S2 4K HD IRD Decoder
Overview
HPR801UHD DVB-S2 4K HD IRD supports AVS2.0/AVS+/H.265 HEVC/H.264/MPEG2 video decoding and DRA/AC3/EAC3/AAC /MPEG audio decoding. With RF/ASI/IP input, it supports 4K/1080P/1080I/720P/576I/480I resolution output through HDMI and also support 4*3GSDI 4K outputs.
Key Features
Support DVB-S2 RF/IP/ASI input
Support CVBS/HDMI/4*3G-SDI/CVBS/ASI/IP output
Support AVS2.0/AVS+/H.265 HEVC/H.264/MPEG2 video decoding
2 independent CAM card can decrypt two programs
Support Biss_1/Biss_E descrambling mode
Support DRA/AC3/EAC3/AAC/MPEG audio decoding
Support 4*3G SDI 4K output
Resolution can be automatically identified or manually set
Friendly user interface to facilitate the operation of the menu system and all operations can be completed on the LCD
B/S based web management
Support dynamic monitoring of signal input strength and SNR and support signal lock-lose alarm
Application category
DTV head-end equipment
DTV interface converter, Facilitate the conversion between different interfaces of various devices
Receiving 4K programs
Broadcast monitoring
Specifications
RF input |
DVB-S/S2 input | Input port | 1xRF input, 1xRF loopout, 75Ω |
Input frequency | 950~2150MHz | ||
Input level | -25~-65dBm | ||
Symbol rate | 1~45Msps | ||
LNB power supply | 13V, 18V, off, 22KHz | ||
Constellation | QPSK, 8PSK | ||
DVB-C input | Input port | 1*RF input, 1*RF loopout, 75Ω | |
Input frequency | 48~862MHz | ||
Input level | 45~75dbuV | ||
Modulation mode | 16/32/64/128/256QAM | ||
ASI input/output | Input/Output interface | 1*BNC input, 75Ω; 3*BNC output, 75Ω | |
Input/output bitrate | ≤200Mb/s | ||
TS over IP | Interface | 1*RJ-45, 10/100 Base-T | |
Effective rate | 90Mb/s (100 Based-T) | ||
IP input protocol | UDP/HTTP/HTTPS/HLS/M3U8/RTSP/RTMP/MMS/Bluray | ||
IP output protocol | UDP/MPTS | ||
HDMI output | Interface | 1*HDMI | |
Resolution and frame rate | 4K60/4K50/4K30/1080P60/1080P50/1080I60/1080I50/720P60/720P50/576P/576I/480P/480I | ||
Video decoding | Decoding format | MPEG-2/MPEG 4/H.264 AVC/H.265(HEVC)/AVS+ | |
Audio decoding | Decoding format | MPEG-1 LayerI/II, MPEG-2 layer II, MPEG-2 AAC, MPEG-4 AAC LC, 2-CHANNEL/5.1 CHANNEL AC3/DRA/EAC3 | |
4K 3G-SDI output | Interface | 4xBNC, SMPTE-259/292/424 | |
HD-SDI output | 4x3GSDI, 4:2:2/4:4:4 YCbCr 4:4:4 RGB, 10bit | ||
4Kx3G-SDI resolution | (UltraHD)3840x2160p 23.98, 24, 25, 29.97,30, 50, 59.94,60 (UltraHD)3840x2160PsF*23.98, 24, 25, 29.97, 30 (2K) 2048x1080p, 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (2K) 2048x1080PsF, 23.98, 24, 25, 29.97, 30 (HD)1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HD)1920x1080PsF 23.98, 24, 25, 29.97, 30 (HD)1920x1080i 25, 29.97, 30 (HD)1280x720p*50, 59.94, 60 | ||
Analog video output | Video interface | 1*BNC, 75Ω | |
CVBS format | PALBDGHI, PALN, NTSCM, PALN-C, NTSCM, NTSCM443, PALM, SECAM, NTSCMJ | ||
Data output | Subtitle | DVB/EBU | |
Teletext | DVB/EBU | ||
Closed Caption | EIA 608, EIA 708, EIA 608-to-708 | ||
Local and remote management | Interface | 1*RJ-45, 10/100 Base-T | |
Remote management | HTTP Web | ||
Local management | Front pannel button and LED | ||
Miscellaneous | Dimension (W×L×H) | 450mm×350mm×44mm | |
Net Weight | 5Kg | ||
Power | AC 90V~250V, 50/60Hz | ||
Consumption | 24W(Power supply without LBN) | ||
