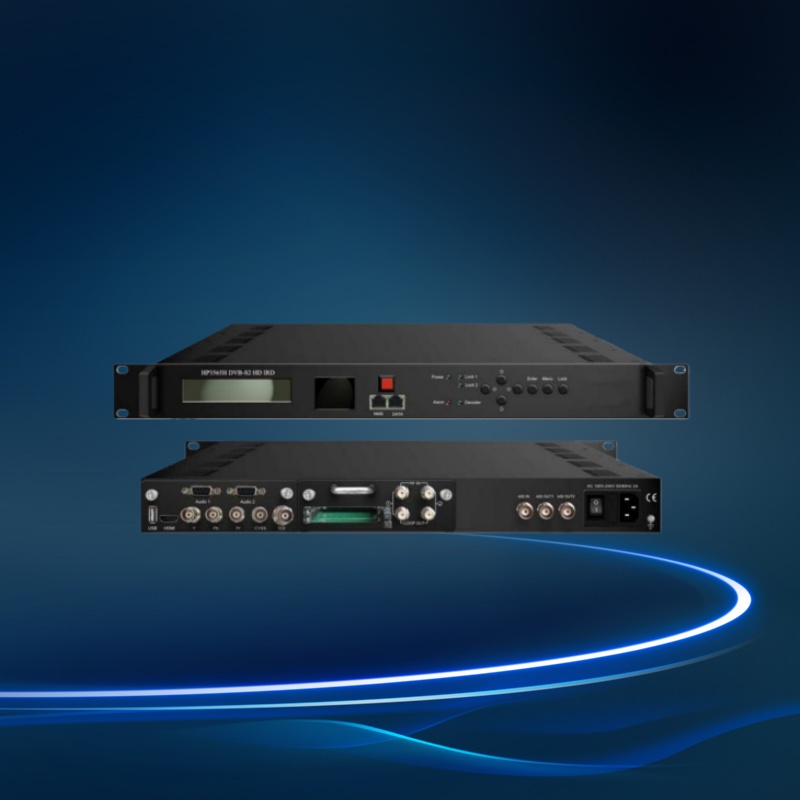

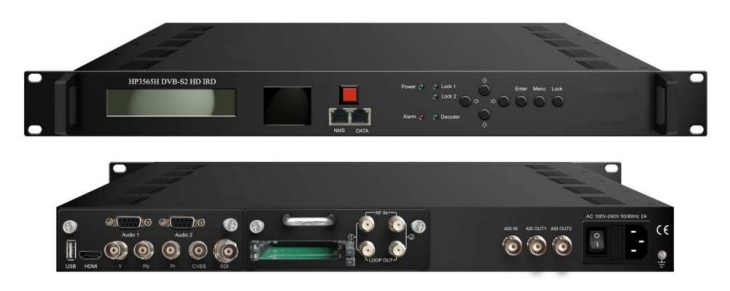

HP3565H DVB-S2 HD IRD
Product Introduction
HP3565H DVB-S2 HD IRD is all-in-one device which integrates demodulation, de-scrambler, re-mux and decoding in one case to convert RF signals into audio/video, (CVBS/YPbPr/HDMI/SDI) output.
It is a 1-U case which supports 2 tuner inputs to receive signal from satellite, cable or terrestrial devices. The two CAMs/CIs accompanied and BISS modules can descramble the programs input from encrypted RF, ASI and IP.
Its pluggable structure design greatly facilitates the change of modules (demodulator or decoder) as needed.
To meet customers’ various requirements, HP3565H is also equipped with ASI and IP input for re-mux, and output with 2 ASI ports and IP port.
Key Features
Demodulation + descrambler +re-mux+decoder modules in one box
2 DVB-C/(T)/S/S2/ATSC-T Tuner inputs optional
1 ASI & 1 IP (UDP) input for re-mux
One CAM can decrypt multiple programs from Tuners/ASI/IP
Support BISS descrambling (Up to 120Mbps)
One channel video output with various interface option (MPEG2/H.264)
Dual stereo audio output, or one Dolby Digital/Dolby Digital Plus (5.1) channel output
Support Dolby Digital/Dolby Digital Plus Decoding and passthrough
IP (1 MPTS & 8 SPTS) over UDP and RTP/RTSP output; ASI out
Support CC, Subtitle and Teletext
Support maximum 128 PID mapping per input
Pluggable and changeable demodulator and decoder modules
LCD display, Remote control and Firmware, web NMS management
Updates via web
Principle Chart
Technical Specifications
| Input | |
| 2 x DVB-S/S2 RF, F type | |
| 1×ASI input for re-mux, BNC interface | |
| 1xIP input for re-mux (UDP) | |
| Demodulating Section | |
| DVB-S | |
| nput Frequency | 950-2150MHz |
| Symbol rate | 2-45Msps |
| Signal Strength | - 65- -25dBm |
| Constellation | 1/2, 2/3, 3/4, 5/6, 7/8 QPSK |
| DVB-S2 (Version 1) | |
| Input Frequency | 950-2150MHz |
| Symbol rate | QPSK 1~45Mbauds; 8PSK 2~30Mbauds |
| Code rate | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
| Constellation | QPSK, 8PSK |
| DVB-S2 (Version 2) | |
| Input Frequency | 950-2150MHz |
| Code rate | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
| Constellation | QPSK, 8PSK, 16APSK, 32APSK |
| Symbol rate | QPSK 1~45 Msps; 8PSK1~45 Msps; 16APSK 1~45 Msps; 32APSK 1-32 Msps |
| Descrambling | |
| CAM/CI Quantity | 2 |
| BISS Mode | Mode 1, Mode E (up to 120Mbps) |
| Output | |
| IP Output | 1*MPTS & 8*SPTS over UDP, RTP/RTSP. 100 Base-T Ethernet interface (unicast / multicast) |
| 2×ASI | BNC interface, mirrored out |
| Decode Output | Video Interface: 1xCVBS/YPbPr/HDMI/SDI Video Decode: MPEG-2; MPEG4 AVC/H.264Resolution: 480i, 480p, 576i, 576p, 720p@50/59.94/60, 1080i@50/59.94/60 Chroma: 4:2:0 Audio Interface: 2 x Stereo/4xmono, HDMI, SDI Audio Decode: MPEG 1 Layer II, LC-AAC, HE-AAC, Dolby Digital/ Dolby Digital Plus Audio Output Mode: Left, Right, Stereo, 5.1 CH (for HDMI/SDI out only) |
| System | |
| Local interface | LCD + control buttons |
| Remote management | Web-server Management |
| Language | English |
| Upgrade | USB, web management |
| General | |
| Power supply | AC 100V~240V |
| Dimensions | 482*300*44.5mm |
| Weight | 3 kgs |
| Operation temperature | 0~45℃ |
