HPR802H
CATCAST

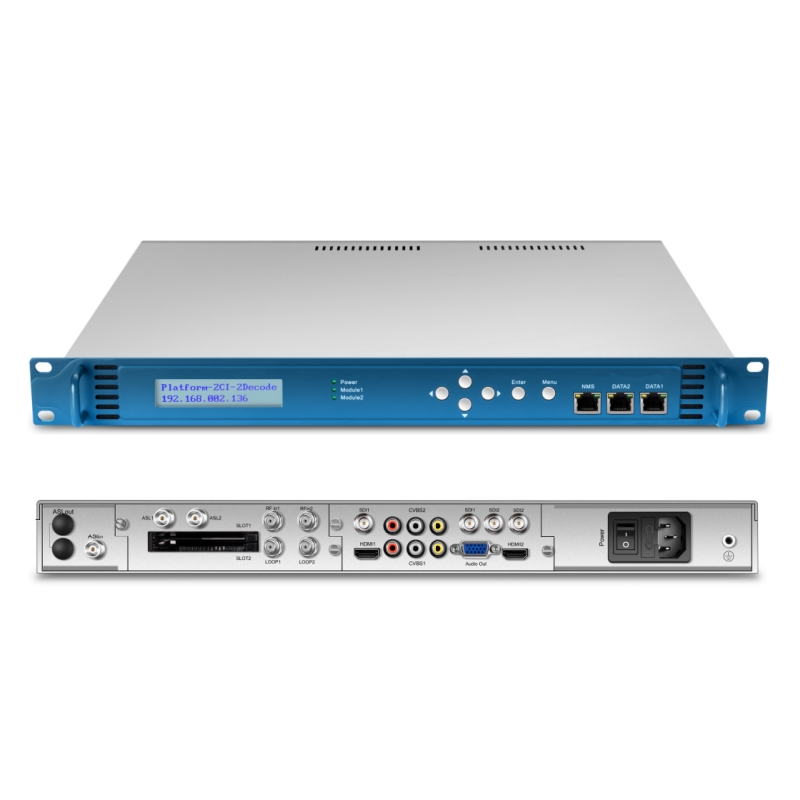

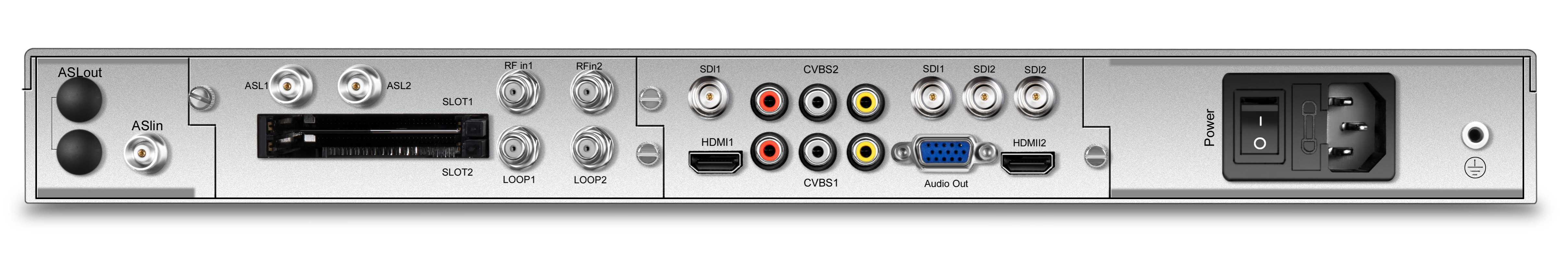

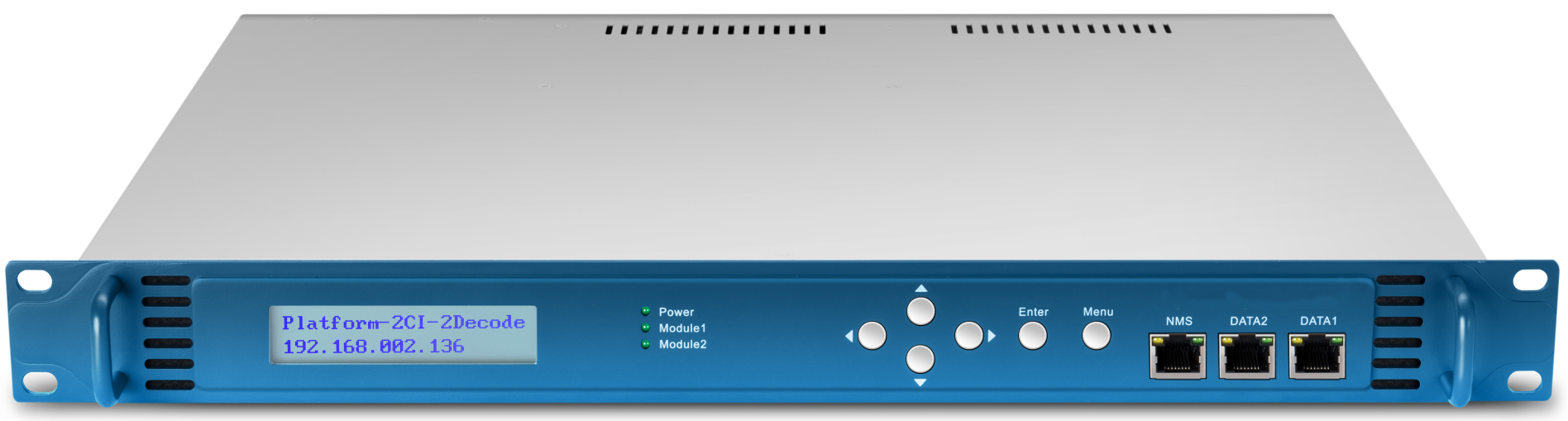

HPR802H 2 in 1 IRD is a pluggable structure design device. It supports 2 Tuners, 2 IP and 1 ASI input, 2 channels decoding output with AVS+/H.265/H.264/MPEG2 decoding format. With it’s abundant output interface, it support 4 HD-SDI, 2 HDMI, 2 CVBS, 2 AES/EBU and 2 analog stereo output. IP (2*MPTS/24*SPTS) output through Dual Gigabit Ethernet output. It also support 4K/1080P/1080I/720P/576I/480I resolution.
Key Features
Support CVBS/HDMI/SD/HD-SDI/AES/EBU/Analog Stereo/ASI/IP output
Support DRA/AC3/EAC3/AAC/MPEG audio decoding
Support AVS+/H.265/H.264/MPEG2 video decoding
Support AC3 passthrough（ unvarnished transmission）
2 independent CAM card can decrypt two programs
Support Biss_1/Biss_E descrambling mode
Support Closed caption/subtitle/Teletext function
Resolution can be automatically identified or manually set
Friendly user interface to facilitate the operation of the menu system and all operations can be completed on the LCD
B/S based web management
Support dynamic monitoring of signal input strength and SNR and support signal lock-lose alarm
Application category
DTV head-end equipment
DTV interface converter, facilitate the conversion between different interfaces of various devices
Support VOD in IPTV system
Broadcast monitoring
Specifications
RF input | DVB-S/S2 input | Input port | 2*RF input, 2*RF loopout, 75Ω |
Input frequency | 950~2150MHz | ||
Input level | -25~-65dBm | ||
Symbol rate | 1~45Msps | ||
LNB power supply | 13V, 18V, off , 22KHz | ||
Constellation | QPSK, 8PSK | ||
DVB-T/T2 input | Input port | 2*RF input, 2*RF loopout, 75Ω | |
Input frequency | 44~1002MHz | ||
Input level | -20~-100dbm | ||
Modulation mode | DVB-T: QPSK, 16/64 QAM DVB-T2: QPSK, 16/64/256 QAM | ||
Bandwidth | 6/7/8 MHz | ||
DVB-C input | Input port | 2*RF input, 2*RF loopout, 75Ω | |
Input frequency | 48~862MHz | ||
Input level | 45~75dbuV | ||
Modulation mode | 16/32/64/128/256QAM | ||
ASI in/ASI output | Interface | 1*BNC input, 75Ω | |
Interface | 2*BNC output, 75Ω | ||
Bitrate | ≤200Mb/s | ||
TS over IP | Interface | 2*RJ-45, 1000 Base-T | |
IP protocol | UDP/RTP, Unicast, Multicast, IGMP(V1,2,3) | ||
HDMI output | Interface | 2*HDMI port(support 4K resolution and 1.4a frame rate) | |
Resolution and frame rate | 4K30/1080P60/1080P50/1080I60/1080I50/720P60/720P50/576P/576I/480P/480I | ||
Video decoding | Decoding format | MPEG-2/MPEG 4/H.264 AVC/H.265(HEVC)/AVS+ | |
Audio decoding | Decoding format | MPEG-1 LayerI/II, MPEG-2 layer II, MPEG-2 AAC, MPEG-4 AAC LC, 2-CHANNEL/5.1 CHANNEL AC3/DRA/EAC3 | |
HD/SD-SDI output | Interface | 4*BNC, 75Ω | |
SD-SDI output | SMPTE 259M, 270Mb/s(10bit) | ||
HD-SDI output | SMPTE 292M, 1.485Gbit/s(20bit) | ||
Analog audio output | Interface | 2*RCA, 2xXLR | |
Output audio format | Left, Right, Dual Mono, Stereo | ||
Digital audio output | Interface | 2*AES/EBU | |
Analog video output | Video interface | 2*RCA, 75Ω | |
CVBS format | PALBDGHI, PALN, NTSCM, PALN-C, NTSCM, NTSCM443, PALM, SECAM, NTSCMJ | ||
Data output | Subtitle | DVB/EBU | |
Teletext | DVB/EBU | ||
Closed Caption | EIA 608, EIA 708, EIA 608-to-708 | ||
Local and remote management | Interface | 1*RJ-45, 10/100 Base-T | |
Remote management | HTTP Web | ||
Local management | Front pannel button and LED | ||
Miscellaneous | Dimension (W×L×H) | 450mm×350mm×44mm | |
Net Weight | 5Kg | ||
Power | AC 90V~250V, 50/60Hz | ||
Consumption | 24W(Power supply without LBN) | ||
