HP714D
Catcast

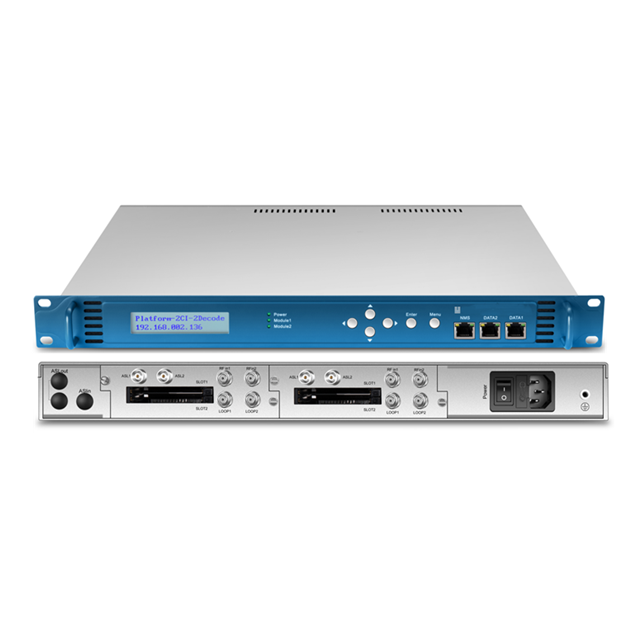

HP714D 4 in 1 4 DVB-C/S2/T Tuner to ASI IP CAM CI IRD
Overvier
HP714D 4 IN 1 IRD is a integrated receiving device which can receive the transmission stream from tuners. This 4 in 1 IRD is equipped with CAMs/CIs and can decrypt 4 tuners input programs. It support 4 DVB-C/S2/T Tuner inputs and IP(4*MPTS&64*SPTS) output throught dual gigabit ethernet and 4 ASI output.
Key Features
lSupport 4 tuner input(DVB-S/S2/T//C)
lIndependent dual gigabit Ethernet output ports(one for backup)
lSupport 4 ASI output
lSupport 4 CAM card slots, and support common CA system
lSupport 4 MPTS and 64 SPTS output
lSupport IP input buffer, strong ability of adapting to data burst
lIP output packet is adjustable: (1-7) x 188
lPluggable structure design, flexible application
lSupport Chinese and English language
lSupport AVS+/H.265/H.264/MPEG2 video decoding
lSupport DRA/AC3/EAC3/AAC/MPEG audio decoding
lSupport AC3 passthrough
lSupport Biss_1/Biss_E descrambling mode
lSupport Closed caption/subtitle/Teletext function
lResolution can be automatically identified or manually set
lFriendly user interface to facilitate the operation of the menu system and all operations can be completed on the LCD
lB/S based web management
lSupport dynamic monitoring of signal input strength and SNR and support signal lock-lose alarm
Application category
lDTV head-end equipment
lSupport VOD and IPTV
lBroadcast monitoring
Specifications
RF input |
DVB-S/S2 input | Input port | 4*RF input, 4*RF loopout, 75Ω |
Input frequency | 950~2150MHz | ||
Input level | -25~-65dBm | ||
Symbol rate | 1~45Msps | ||
LNB power supply | 13V, 18V, 22KHz or off | ||
FEC | All proportions compatible with the standard | ||
Constellation | QPSK, 8PSK | ||
Roll-off Factor | 0.2, 0.25, 0.35 | ||
DVB-T/(T) input | Input port | 4*RF input, 4*RF loopout, 75Ω | |
Input frequency | 44~1002MHz | ||
Input level | -20~-100dbm | ||
Modulation mode | DVB-T: QPSK, 16/64 QAM DVB-(T): QPSK, 16/64/256 QAM | ||
Bandwidth | 6/7/8 MHz | ||
Carrier Mode | DVB-T:2K/8K DVB-(T): 1K/2K/4K/8K/16K/32K | ||
Guard Interval | DVB-T: 1/4, 1/8, 1/16, 1/32 DVB-(T): 1/4, 1/8, 1/16, 1/32, 1/64, 1/128 | ||
FEC | DVB-T: 1/4, 1/8, 1/16, 1/32 DVB-(T): 1/2, 3/5, 2/3, 3/4, 4/5, 5/6 | ||
DVB-C input | Input port | 4*RF input, 4*RF loopout, 75Ω | |
Input frequency | 48~862MHz | ||
Input level | 45~75dbuV | ||
Modulation mode | 16/32/64/128/256QAM | ||
ASI output | Interface | 4*BNC input, 75Ω | |
Standard | DVB-ASI, EN50083-9 | ||
Bitrate | ≤200Mb/s | ||
IP output | Interface | 2*RJ-45, 10/100/1000 Base-T | |
Effective rate | 900Mb/s (1000 Based-T) | ||
Frame length | (1-7)x188 adjustable byte | ||
IP protocol | UDP/RTP, Unicast, Multicast | ||
CAM | DVB-C Interface | 4*PCMCIA slots | |
Decrypt | Compatible with European DVB-CSA | ||
Built-in DVB descramble | BISS-1, BISS-E | ||
Local and remote management | Interface | 1*RJ-45, 10/100 Base-T | |
Remote management | HTTP Web | ||
Local management | Front pannel button and LED | ||
Device upgrade | IP or USB | |
Miscellaneous | Dimension (W×L×H) | 450mm×350mm×44mm |
Net Weight | 5Kg | |
Power | AC 90V~250V, 50/60Hz | |
Consumption | 24W(Power supply without LBN) | |
Temperature | 0~45℃(work)；-10~60℃(Storage) | |
Humidity | 10~90%(Non-Condensing) |
