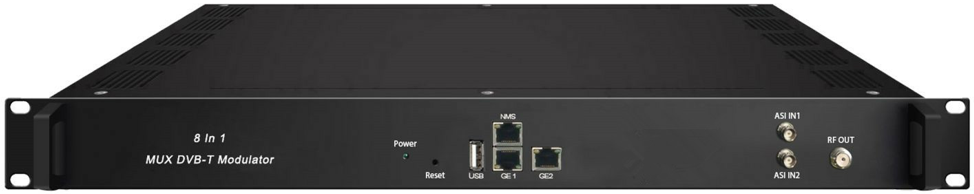

HP8516T 8 in 1 Mux DVB-T Modulator

Input:16 DVB-S/S2 ,IP,2 ASI Output:8 IP,8 DVB-T RF Constellation: QPSK, 16QAM, 64QAM Size:1U Min Oder:1pcs


HP8516T is a high performance and cost-effective DVB-T modulator designed by Catcast. It has 16 DVB-S/S2 FTA tuner input, 8 groups multiplexing and 8 groups modulating, and supports maximum 512 IP input through GE1 and GE2 port and 8 IP (MPTS) output through GE1 port and 8 non-adjacent carriers (50MHz960MHz) output through the RF output interface. To meet customers’ various requirements, this device is also equipped with 2 ASI input ports.

HP8516T is also characterized with high integrated level, high performance and low cost. It supports dual power supply (optional). This is very adaptable to newly generation broadcasting system.

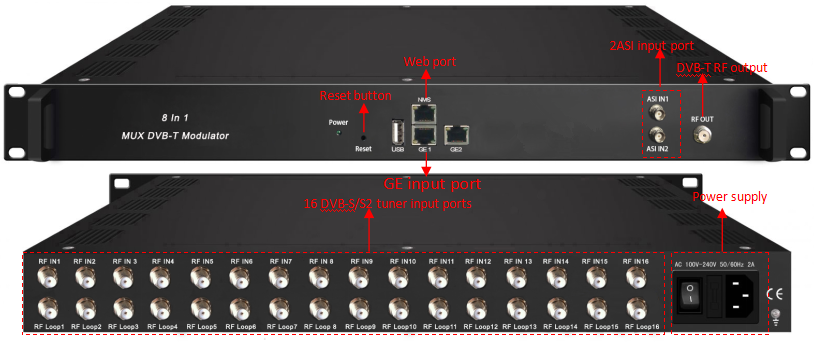

HP8516T 1.png

Key Features

16 DVB-S/S2 FTA Tuner + 2 ASI input+512 IP (GE1 and GE2) input over UDP and RTP protocol

8*DVB-T RF output

Excellent RF output performance index, MER≥40db

Support 8 groups multiplexing + 8 groups DVB-T modulating

Support accurate PCR adjusting

Support PSI/SI editing and inserting

Support Web management, Updates via web

Redundancy Power Supply (optional)


We offer not only products, but also our after-sales service. Welcome to contact us to know more.
