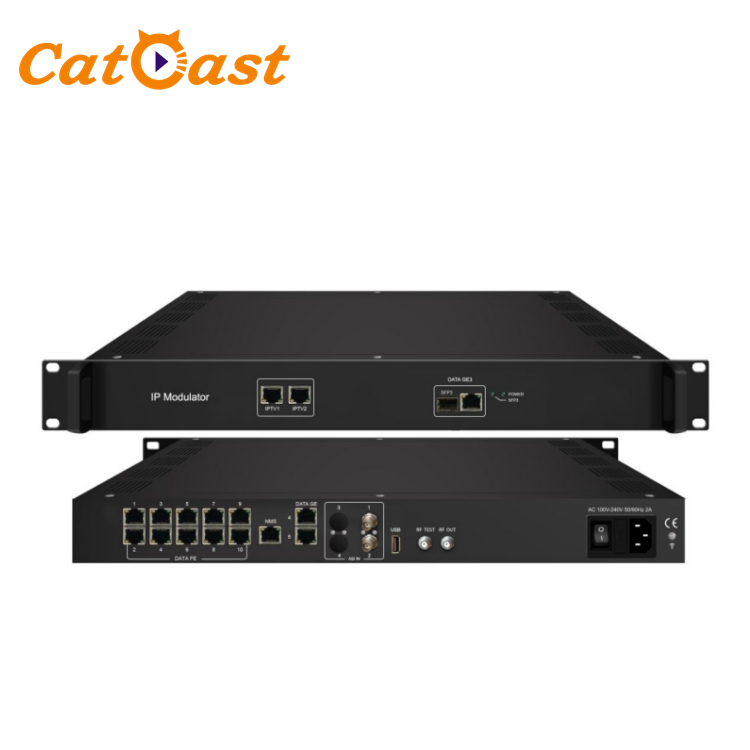

HPS3344M-N Multiple Protocols IP To RF Modulator

HPS3344M-N Multiple Protocols IP To RF Modulator

ATSC/ISDB-T/DVB-T/DVB-C Modulation mode in one device, Modulation dynamic switching (only 2 modes are available for option)

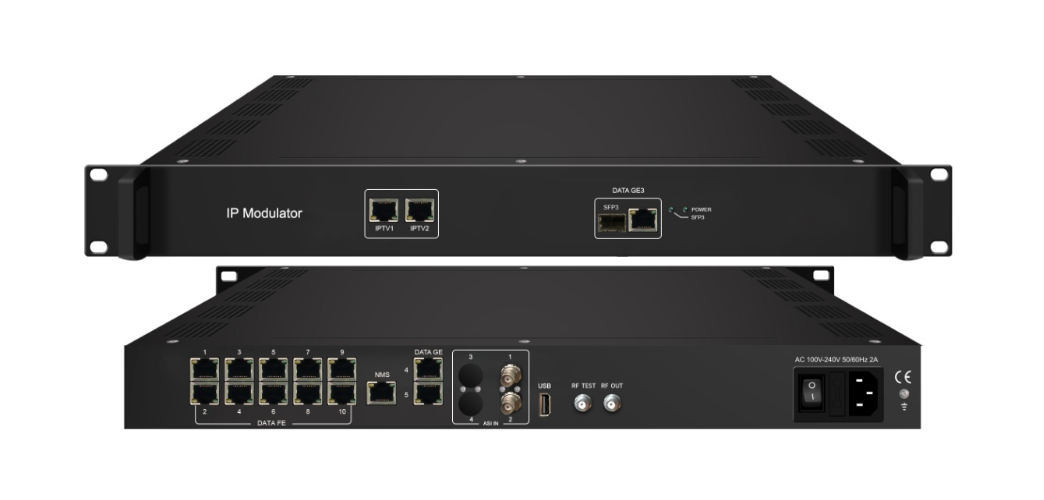

IPTV1 port+IPTV2 port+ 1 GE/SFP port+2 GE ports+10 FE ports

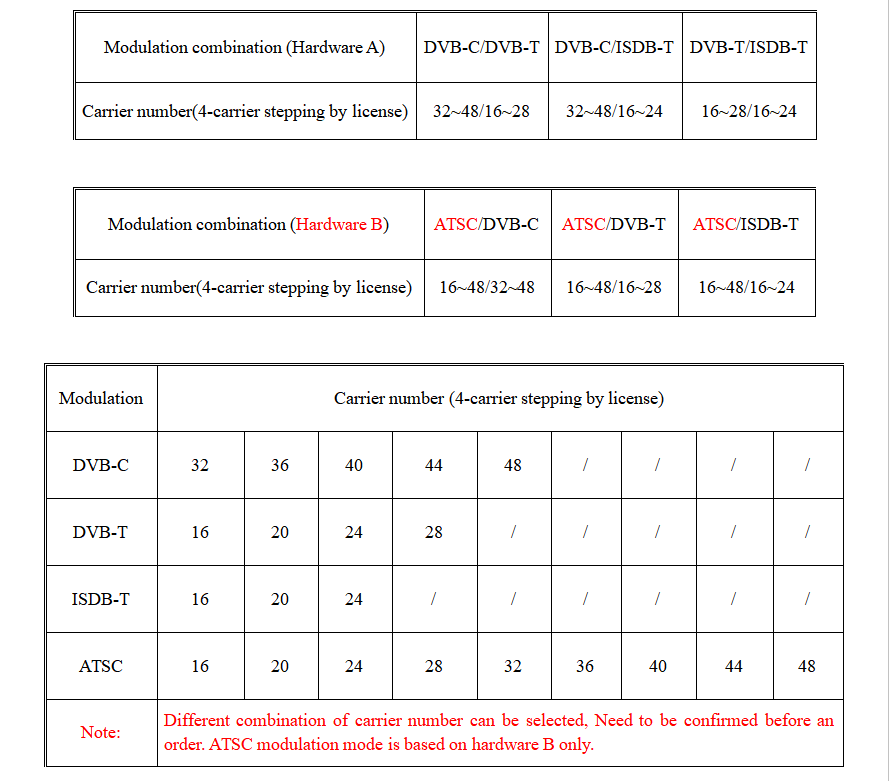

License control of carrier number

Product Overview

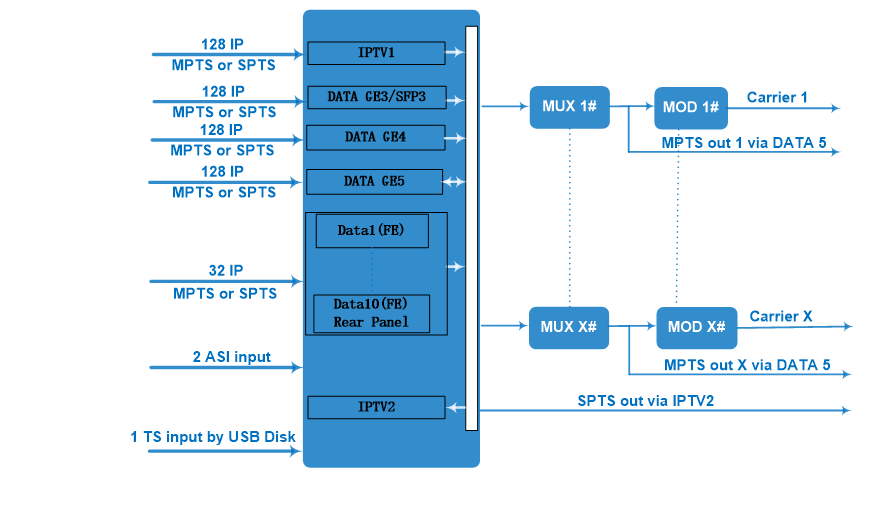

HPS3344M-N IP Modulator is a new generation of Mux-modulating integrated device developed by CATCAST. It supports max 128 IP input channels via GE ports (IPTV1, DATA GE3/SFP3, DATA GE4/5), max 32 IP input channels via the 10 FE ports (DATA FE 1-10), 2 ASI inputs and 1 USB input (TS Playing). It supports max 48 ATSC & 24 ISDB-T & 28 DVB-T & 48 DVB-C non-adjacent out carriers (50MHz~960MHz), and max 48&24&28&48 MPTS outputs as the mirror of the out carriers via DATA 5 and SPTS output via IPTV 2 port. The device is characterized with high integrated level, high performance and low cost, so it is very adaptable for a DTV broadcasting system.

 Key Features

l Support multi-protocol MPTS/SPTS inputs over UDP/RTP/RTSP/HLS/HTTP/SRT via IPTV1, max 128 IP input channels, 100Mbps-300Mbps data processing (up to the actual protocols/network conditions etc)

l MPTS/SPTS input over UDP and RTP via DATA GE3/SFP3, DATA GE4/5, max 128 IP input channels per port, max 840Mbps data processing per port, IGMP V2/V3

l MPTS/SPTS input over UDP and RTP via the 10 FE ports, max 32 IP input channels per port, about 80Mbps data processing per port, , IGMP V2/V3

l Support multi-protocol SPTS output over UDP/RTP/RTMP/RTSP/HLS/HTTP/SRT via IPTV2, max 64 IP output channels, 100Mbps-300Mbps data processing (up to the actual protocols/network conditions etc)

l MPTS output over UDP/RTP via DATA GE 5, max 48/24/28/48 IP output channels (as the mirror of out carriers as per modulation mode)

l Max 48 ATSC/24 ISDB-T /28 DVB-T /48 DVB-C non-adjacent carriers output within 384 MHz bandwidth

l ATSC/ISDB-T/DVB-T /DVB-C modulation mode in one device, Modulation dynamic switching (only two modulation modes can be chosen in on device)

l Supports accurate PCR adjusting

l Supports PID remapping and PSI/SI editing , PIDs remapping per channel

l Supports up to 256 PID per out channel

l Supports 2ASI inpust

l Support 1 USB Player (Insert an USB disk with “xxx.ts” files and play back the content in an easy way; file system FAT 32)

l Support Web-based Network management
