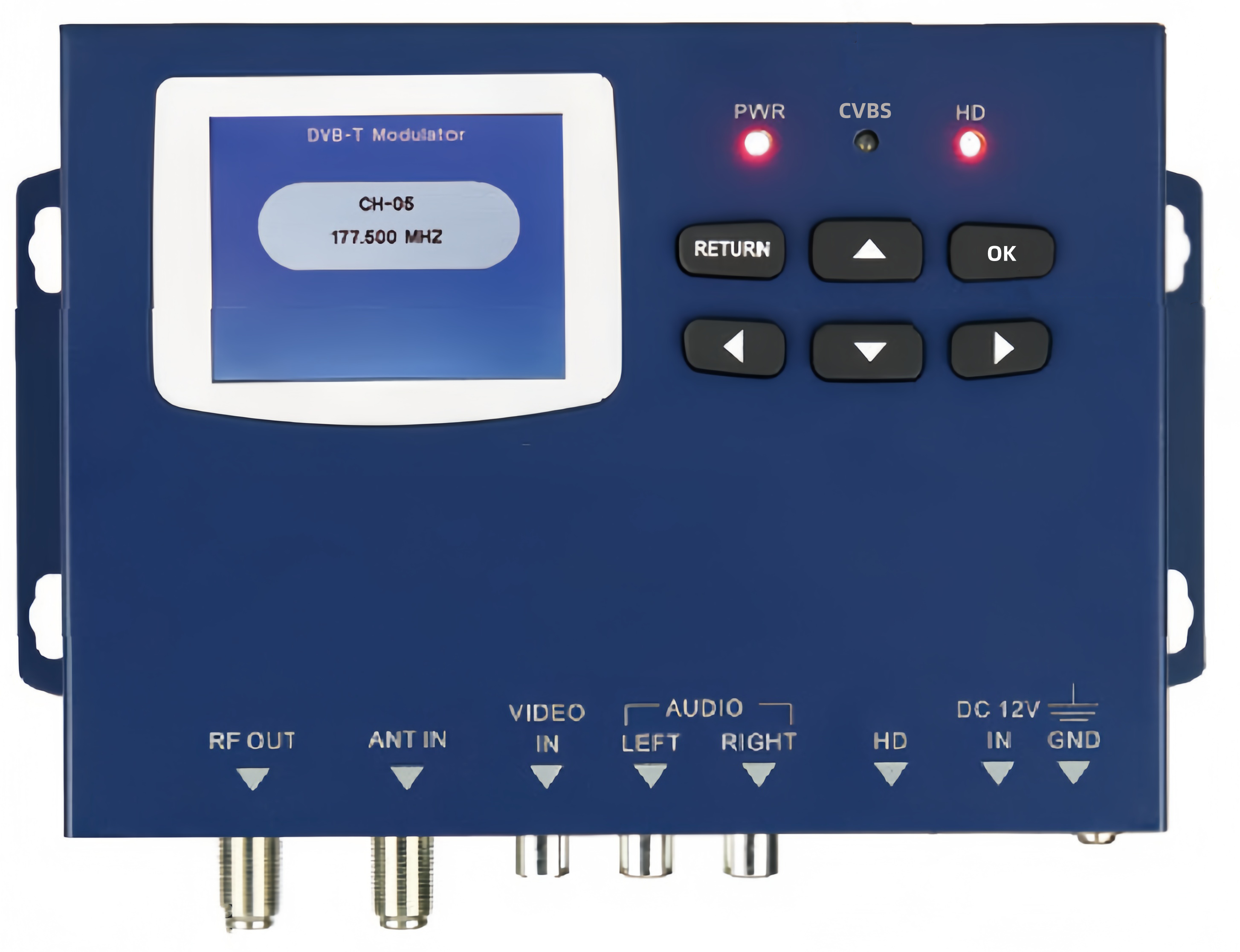

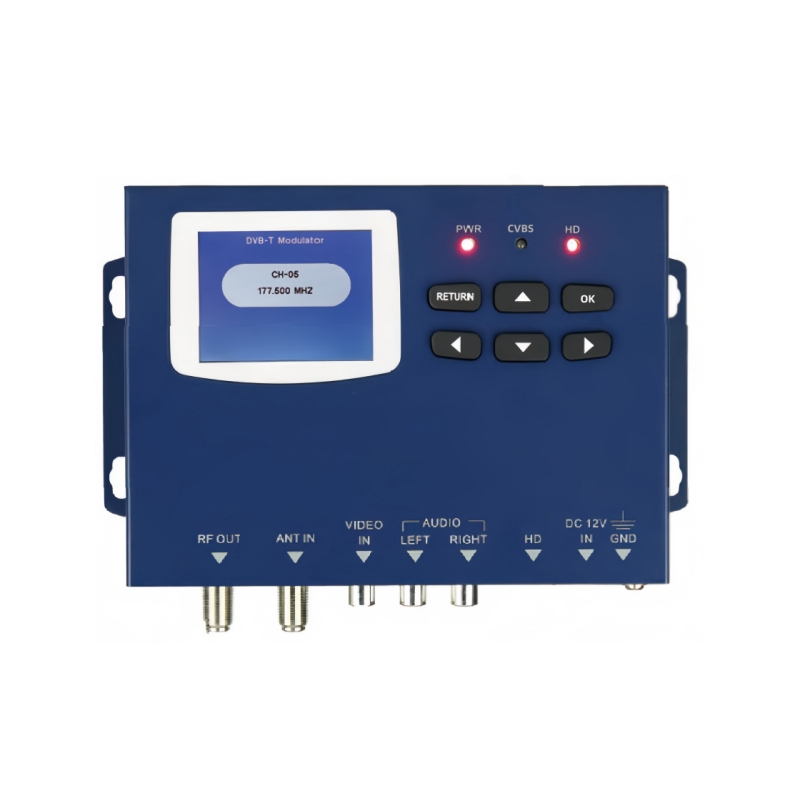

HP1801 1 HD/AV To DVB-T/DVB-C/ISDB-T RF Modulator
Product Description
HP1801 is developed to adapt global terrestrial digital television.It's mainly applied in home entertainment, surveillance control, hotel Digital Signage, shops etc. And it is integrating MPEG-4 AVC/H.264 encoding and modulating to convert HD/AV signals into DVB-T/DVB-C/ISDB-T RF out.
Key Features
●
High level of integration, high-performance, Full-featured,integrated design
● single input modulator convert to one DVB-T channel
● Standard COFDM modulation and H.264 encoding
● Multiple video format compatibility including 576i(PAL) / 480i(NTSC) / 1080p
● Bandwidth: 6/7/8MHz
● Frequency range: 100~860MHz
● Continuously adjustable RF signal output level range 70dBuV from 100dBuV,step 1dBuV
● 2.4-inch color LCD display
● Carriers 2K and 8K
● User friendly setup and control
● Compact and wall mountable

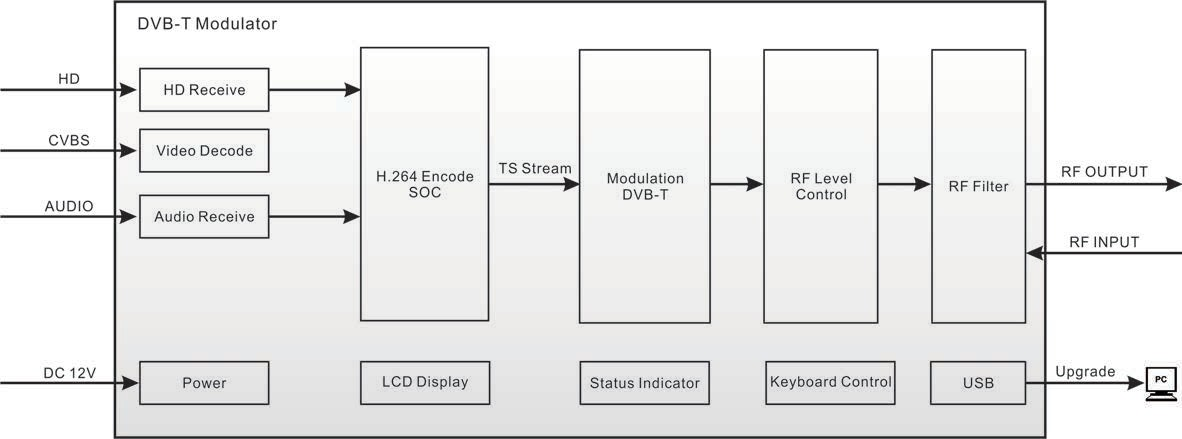

Functional Block Diagram
Technical Specifications
DVB-T Mode | ISDB-T Mode | ||
MER | >32dB | Bandwidth | 6M |
Constellation | QPSK / 16QAM / 64QAM | Carrier | 2K/4K/8K |
Bandwidth | 6 / 7 / 8 MHz | Constellation | QPSK/QAM-16/QAM-64 |
Carriers | 2K / 8K | Code Rate | 1/2, 2/3, 3/4, 5/6, 7/8 |
Guard Interval | 1/4, 1/8, 1/16, 1/32 | Guard Interval | 1/4, 1/8, 1/16, 1/32 |
Code Rate | 1/2, 2/3, 3/4, 5/6, 7/8 | MER | >32dB |
Frequency Range | 50 ~ 860MHz | Frequency Range | 50 ~ 860MHz |
Attenuator | 0 ~ 30dB | Attenuator | 0 ~ 30dB |
Output Impedance | 750 | Output Impedance | 750 |
DVB-C Mode | HD Input | ||
Bandwidth | 8M | Compression | H.264 - bitrate 1-20 Mb/s |
Symbol Rate | 6875kbps, editable |
Video Resolution | 1920*1080_60P, 1920*1080_50P; 1920*1080_60i, 1920*1080_50i; 1280*720_60p, 1280*720_50P
|
Constellation | QAM-16/QAM-32/QAM-64/ QAM-128/QAM-256 | ||
Connector | HD | ||
MER | >32dB | ||
General | |||
Frequency Range | 50 ~ 860 MHz | ||
Power Source | DC 12V/1.5A | ||
Attenuator | 0 ~ 30dB | ||
Operating Temperature | 0 ~ +45°C | ||
Output Impedance | 750 | ||
Dimensions | 155mm( L ) ×114mm(W) × 33mm(H) | ||
Video Output | |||
Video Resolution | 11920*1080_30P, 1920*1080_25P; 1920*1080_30i, 1920*1080_25i; 1280*720_30p, 1280*720_25P
| ||
Weight | 0.34Kg | ||
