HP3332C 16 32 Carrier IP To DVB-C Modulator with Mux-scrambling

HP3332C 16 32 Channels IP To DVB-C Modulator with Mux-scrambling

Product Overview

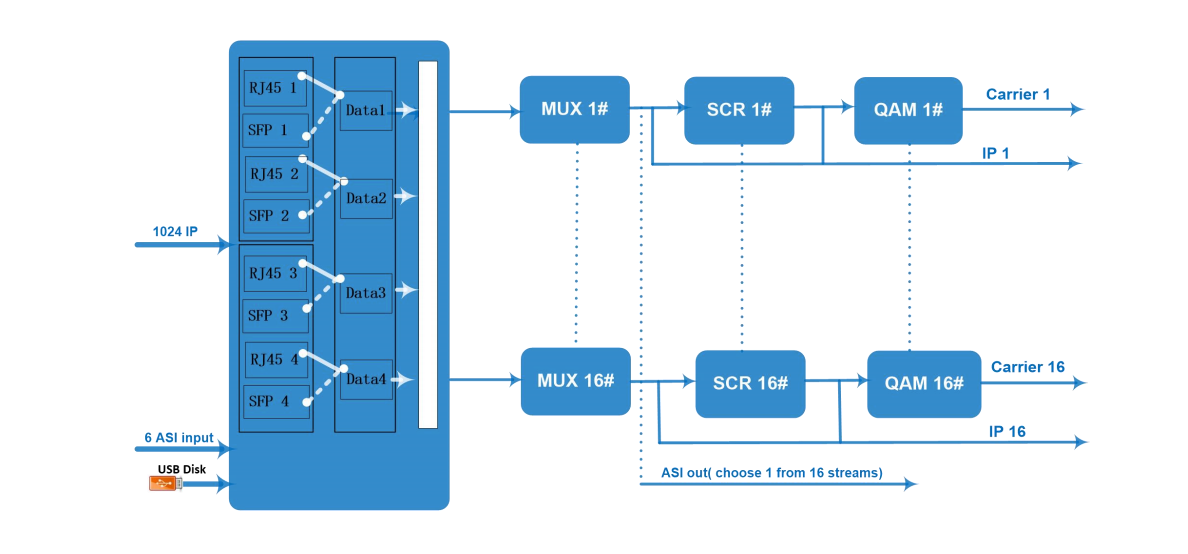

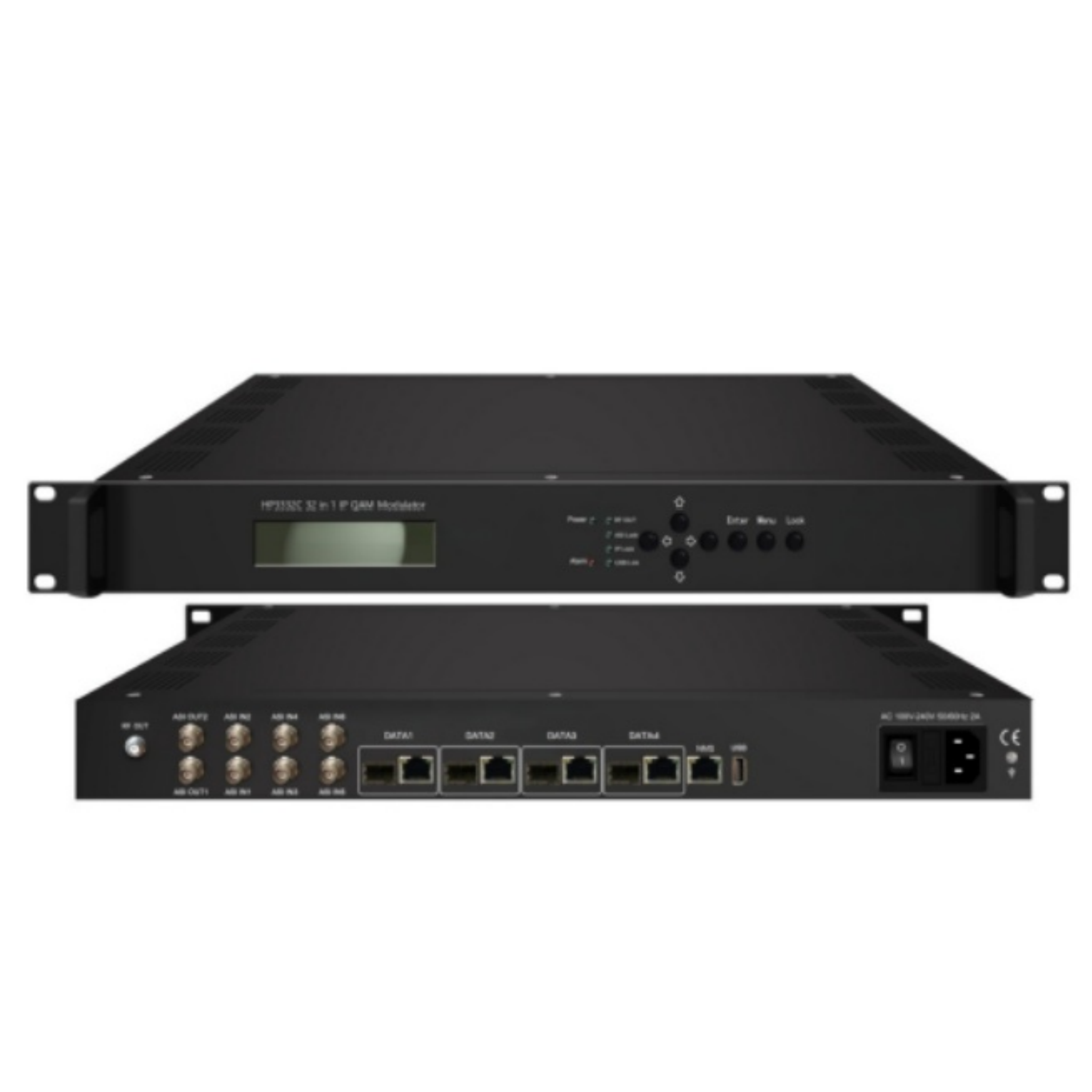

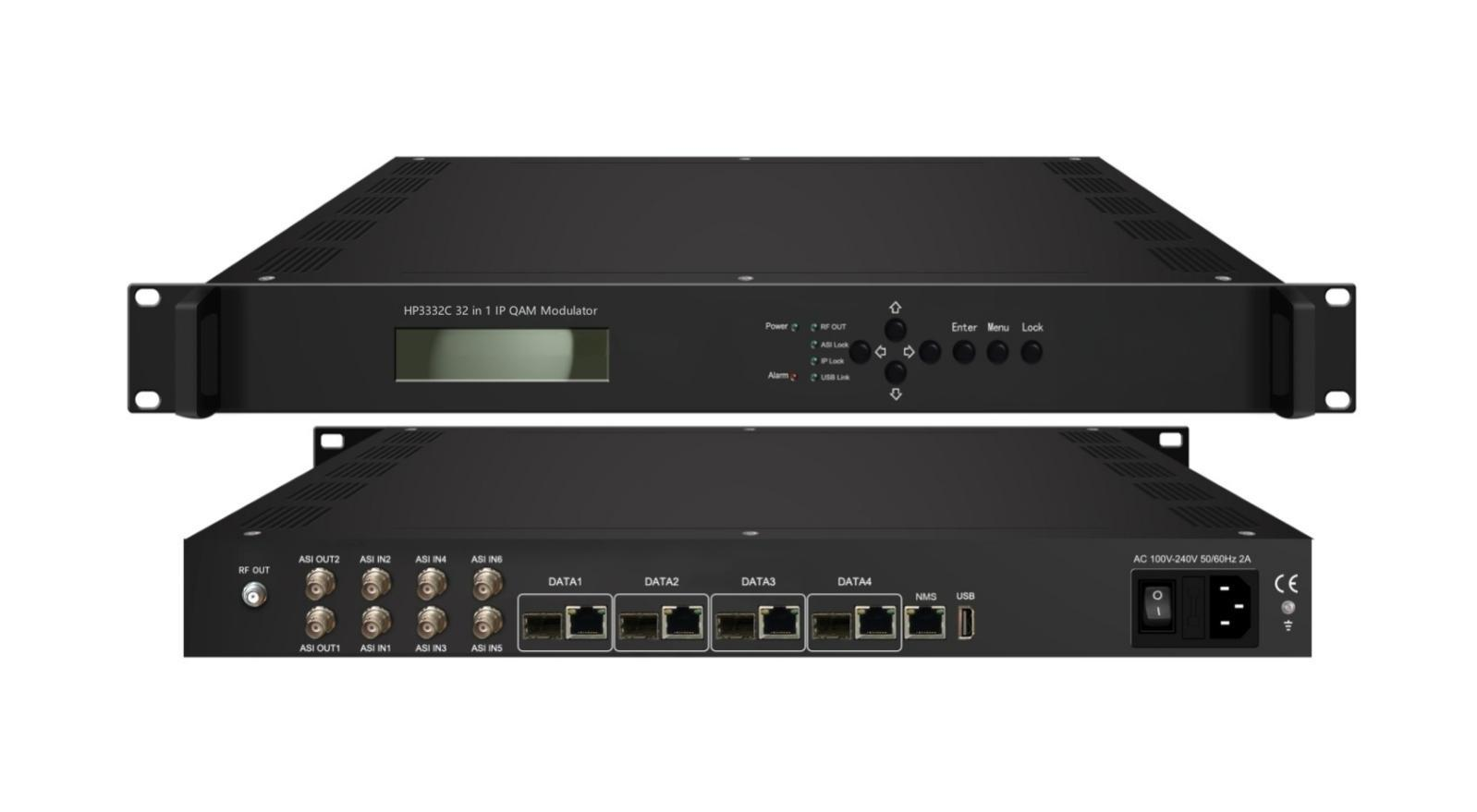

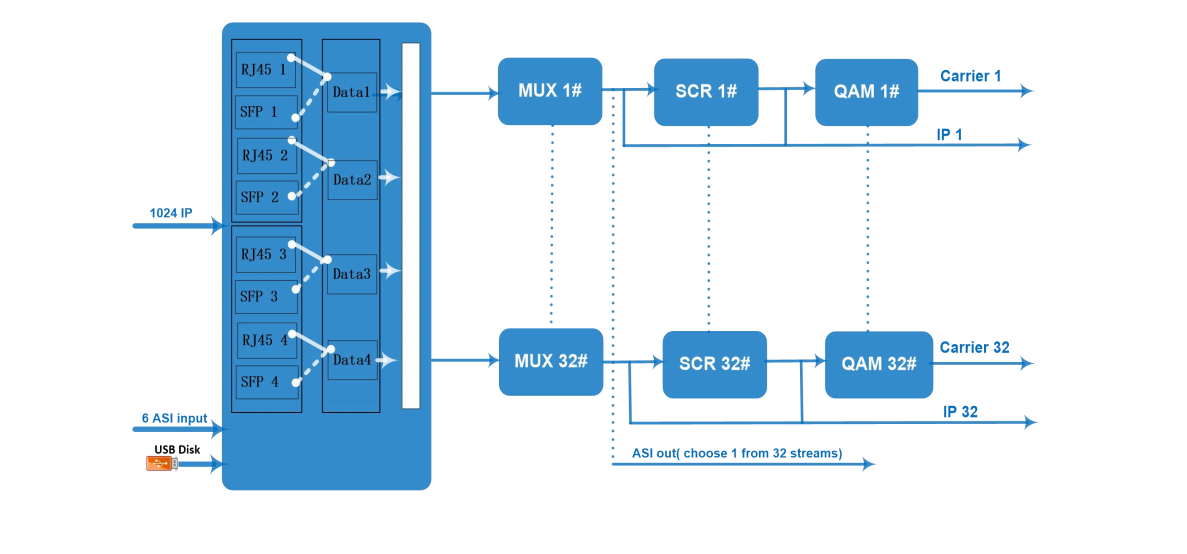

HP3332C 16in1 (or 32in1) DVB-C modulator is an all-in-one device developed by CATCAST. It supports maximum 1024 IP input through the 4 GE/SFP port and also 6 ASI input. After multiplexing, scrambling 16(or 32) and DVB-C modulating, it gives 16(or 32) non-adjacent carriers (50MHz~960MHz), 2 ASI output and 16 or 32 IP (MPTS) output as mirror of carriers. The device is characterized with high integrated level, high performance and low cost. This is very adaptable to newly generation DTV broadcasting system.

Key Features

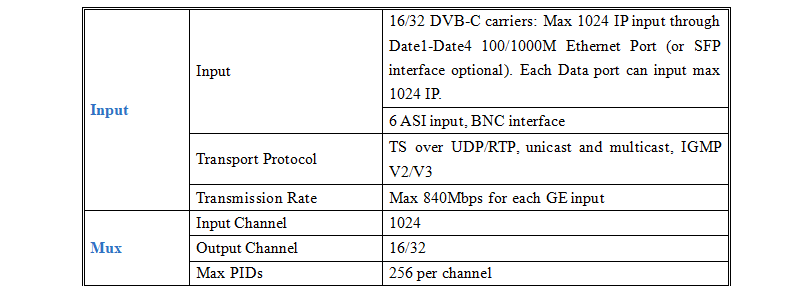

● 4 GE/SFP ports (max 1024 IP in):

   Data1 is bi-directional ports, max 1024 IP in, 16/32 IP out

   Data2&3&4 ports only for input

● Supports accurate PCR adjusting

● Max 840Mbps for each input

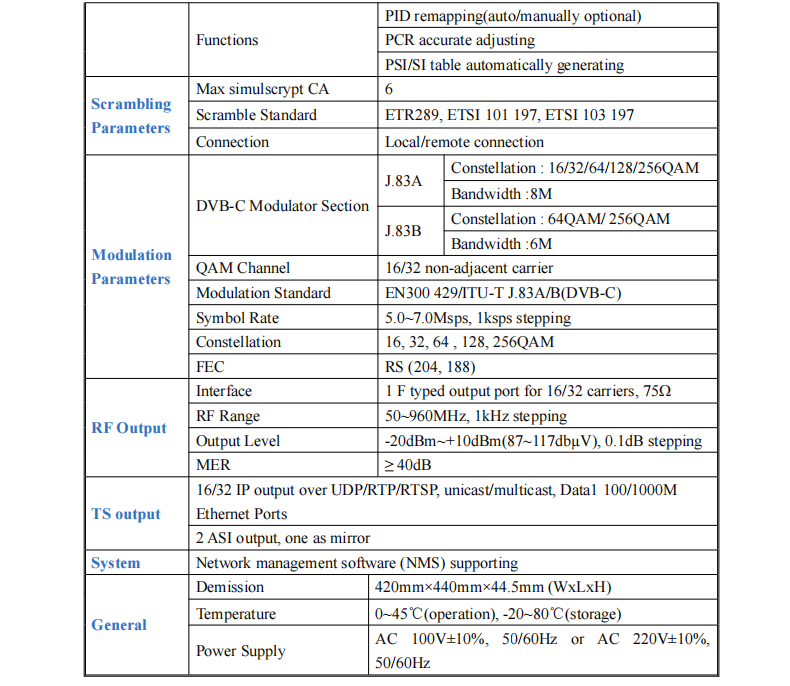

● Supports accurate PCR adjusting/CA filtering, PID remapping and PSI/SI editing

● Supports up to 256 PIDs remapping per channel

● Supports 6 ASI input and 2 ASI output

● Support 16 (or 32) multiplexed TS over UDP/RTP/RTSP output

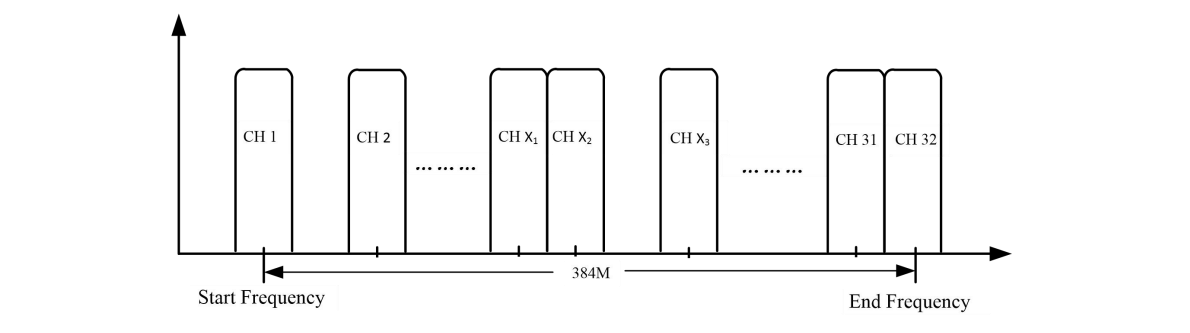

● 16(or 32) DVB-C non-adjacent carriers output, compliant to DVB-C (EN 300 429) and ITU-T J.83 A/B

● Supports RS(204,188) encoding

● Support Web-based Network management
