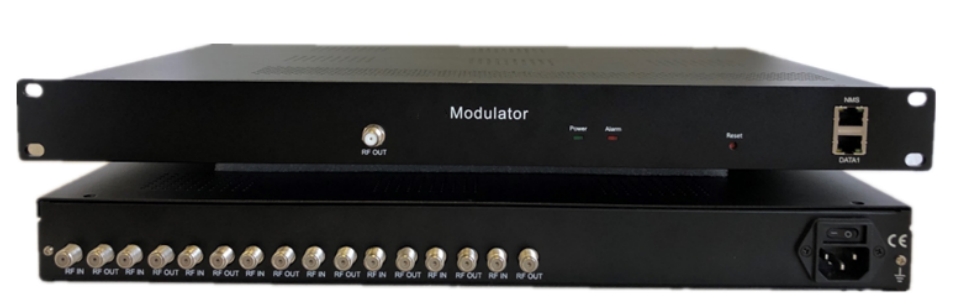

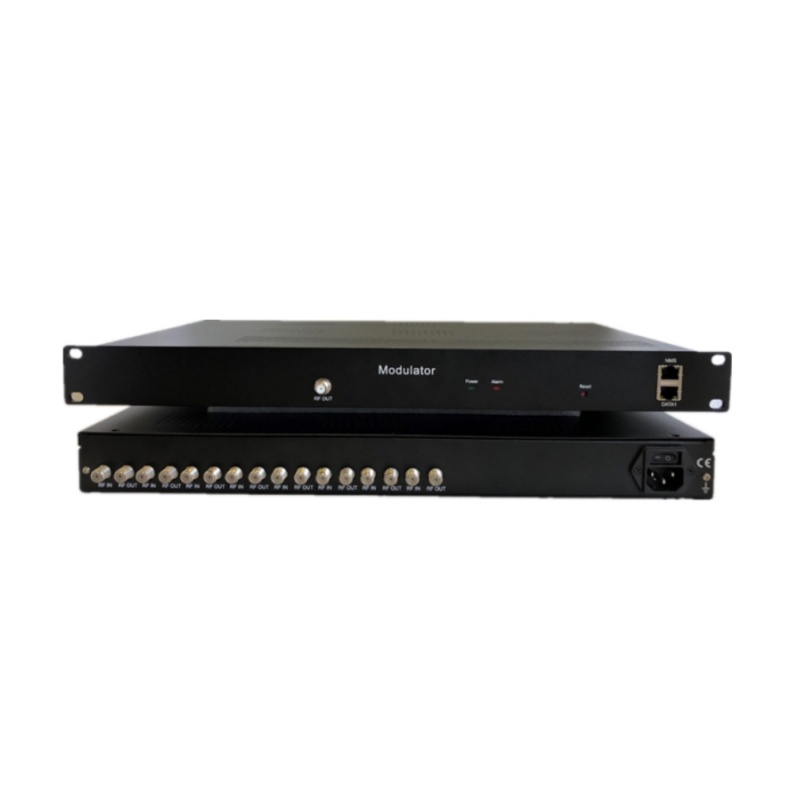

HPR8401FM 8 FTA Tuner To RF Modulator
Product Overview
HPR8401FM tuner to modulator is professional high integration device which includes tuner demodulation, multiplexing and modulation function.It supports 4 or 8 (DVB-S/S2,DVB-C,DVB-T/T2,ATSC,ISDB-T optional) FTA tuner input, 1000M IP input/output, 4/8 carriers of ATSC/DVB-T/DVB-C/ISDB-T/DTMB modulated RF output, 4 MPTS output and 128 SPTS output（optional). In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting, IPTV live streaming etc.
Key Features
4 or 8 FTA tuner input, (DVB-S/S2,DVB-C,DVB-T/T2,ATSC,ISDBT) optional
1000M IP input/output over UDP and RTP protocol(MPTS and SPTS) (optional)
4/8 carrier RF output (ATSC, DVB-T, DVB-C, ISDB-T, DTMB) optional
The input program stream is multiplexed and packaged into TS stream and IP output (optional)
2 ASI Independent output (optional) as copy of 4 MPTS
Support “Null PKT Filter” function
Support PID Remapping/ PCR accurate adjusting, PID pass
LCD、key function
Control via web management, and easy updates via web
Technical Specification
Input | 4/8 FTA tuner inputs,(DVB-S/S2,DVB-T/T2, ISDB-T, ATSC, DVB-C) optional | |||
2 ASI inputs is optional | ||||
1000M IP input | ||||
Output | 4/8 carriers RF output (ATSC, DVB-C,DVB-T/T2, ISDB-T) modulation optional | |||
2 ASI output is optional | ||||
IP output（256 SPTS and 4 MPTS）IP output over UDP and RTP protocol | ||||
Multiplexing | Maximum PID Remapping | 180 output pids per channel | ||
Function | PID remapping ( automatically or manually) | |||
Accurate PCR adjusting | ||||
Modulation | DVB-T | RF number | 4/8 RF DVB-T output | |
Standard | EN300744 | |||
FFT mode | 2K | |||
bandwidth | 6M, 7M, 8M | |||
Constellation | QPSK, 16QAM, 64QAM | |||
Guard Interval | 1/4, 1/8, 1/16, 1/32 | |||
FEC | 1/2, 2/3, 3/4, 5/6, 7/8 | |||
MER | ≥42 dB | |||
RF frequency | 50~960MHz, 1KHz step | |||
RFoutput level | -34~ -10 dBm, 0.1db step | |||
DVB-C | RF number | 4/8 RF DVB-C output | ||
Standard | EN300 429/ITU-T J.83A/B/C | |||
MER | ≥42db | |||
RF frequency | 50~960MHz, 1KHz step | |||
RFoutput level | -34~-10dBm , 0.1dBm step | |||
Symbol Rate | 5.0Msps~7.0Msps,1ksps stepd | |||
J.83A | J.83B/J.83C | |||
Constellation | 16/32/64/128/256QAM | 64/256 QAM | ||
Bandwidth | 8M | 6M | ||
ATSC | RF number | 4/8 RF ATSC output | ||
Standard | ATSC A/53 | |||
Bandwidth | 6M | |||
Constellation | 8VSB | |||
FEC | RS(208 188)+Trellis | |||
MER | ≥42dB | |||
RF frequency | 50~960MHz, 1KHz step | |||
RFoutput level | -34~-10dBm , 0.1dBm step | |||
ISDB-T | RF number | 4/8 RF ISDB-T output | ||
Standard | ARIB STD-B31 | |||
Bandwidth | 6M | |||
Constellation | QPSK, 16QAM, 64QAM | |||
Guard Interval | 1/32, 1/16, 1/8, 1/4 | |||
Transmission Mode | 2K | |||
Code rate | 1/2, 2/3, 3/4, 5/6, 7/8 | |||
MER | ≥42dB | |||
RF frequency | 50~960MHz, 1KHz step | |||
RFoutput level | -34~-10dBm , 0.1dBm step | |||
DTMB | RF number | 4/8 carrier RF output | ||
Standard | DTMB GB20600-2006 | |||
Bandwidth | 8M bandwidth | |||
Constellation | 4QAM,16QAM, 32QAM, 64QAM | |||
Qty. of modulation carriers | single carrier or (multi-carriers) | |||
Guard intervals | PN420, PN595, PN945 | |||
Internal error correction code | LDPC | |||
Encoding efficiency | 0.4, 0.6, 0.8 | |||
Interlace depth | 240, 720 | |||
MER | ≥42dB | |||
ACLR | 55dB | |||
Frequency range | 110 ~ 960MHz, in 1KHz steps | |||
RF out level | -26dBm ~ -10dBm, in 0.5dB steps | |||
System function | Network management(WEB) | |||
Chinese and English language | ||||
Ethernet software upgrade | ||||
Miscellaneous | Dimension (W×L×H) | 482mm*360mm*44mm | ||
weight | 5kg | |||
Environment | 0~45℃(work)；-20~80℃(storage) | |||
Power requirements | AC100~240V，50/60Hz | |||
