HPS3304T IP To DVB-T2 RF Modulator

HPS3304T IP To DVB-T2 RF Modulator

Product Overview

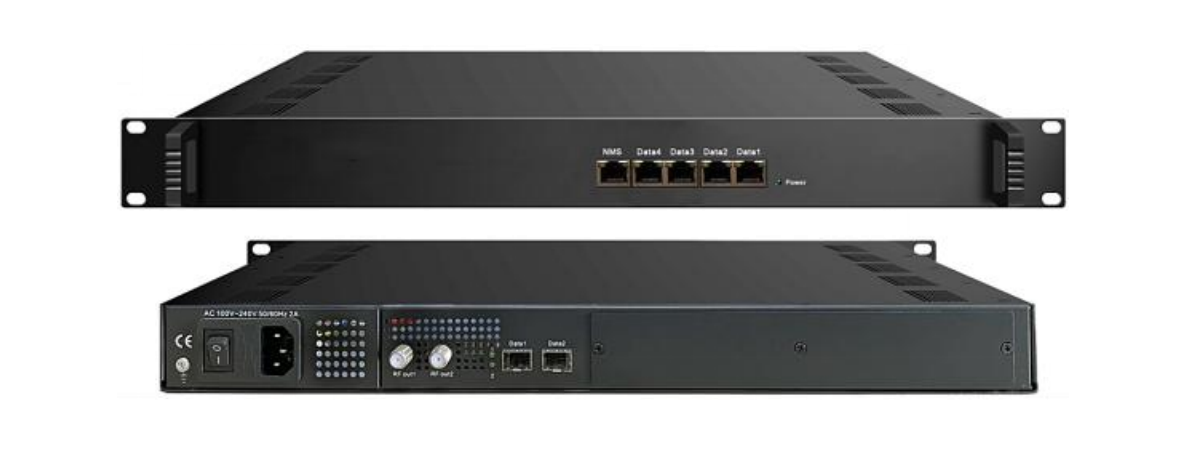

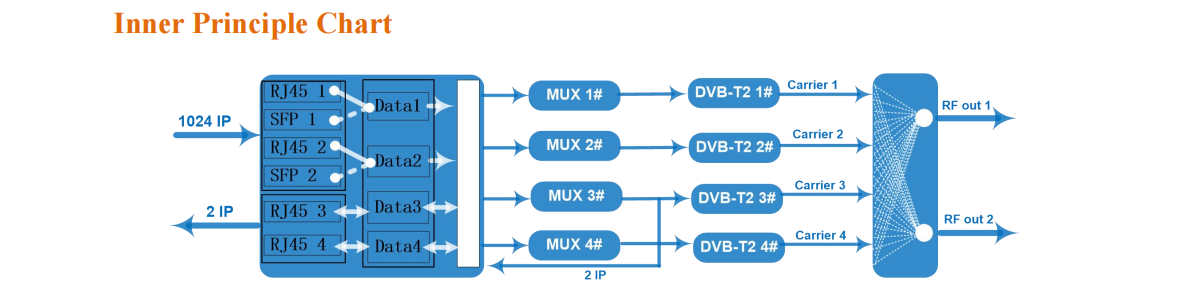

HPS3304T IP DVB-T2 modulator is a Multiplexing-modulating all-in-one device developed by Catcast. It has 4 multiplexing channels and 4 DVB- T2 modulating channels, and supports maximum 1024 IP inputs through 4 data ports and 4 non-adjacent carriers output through 2 RF output interfaces. The device is characterized with high integrated level, high performance and low cost. This is very adaptable to newly generation DTV broadcasting system.

Key Features

1) 6 GE ports: 4*RJ45, 2*SFP, DATA1/2 and SFP1/2 for input, DATA 3/4 for output

2) 4 DVB-T2 non-adjacent carriers output, fully complying with EN302 755

3) Max 840Mbps and 1024 IP inputs for each GE input

4) Supports multiplexing with accurate PCR adjusting, PID remapping and PSI/SI editing

5) Supports up to 256 PID remapping per channel

6) 2 IP (MPTS) output over UDP protocol Supports single PLP

7) Support MISO and SISO

8) Supports non-linear digital pre-distortion (DPD)

9) Support PID bypass and pass-through

10) Support Web-based Network management
