HPS3402E ASI IP To DVB-S2 RF Modulator Digital TV Headend

HPS3402E  ASI IP To DVB-S2 RF Modulator Digital TV Headend

Outline

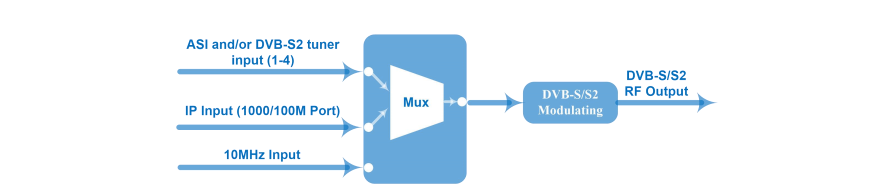

Catcast HPS3402E is a high-performance modulator developed according to DVB-S2 (EN302307) standard which is the standard of second generation of the European broadband satellite telecommunication. It is to convert the input satellite signal and/or ASI and IP streams into digital DVB-S/S2 RF output.

BISS scrambling mode is inserted to this DVB-S2 modulator, which helps to safely distribute your programs. It is easy to reach local and remote control with Web-server NMS software and LCD in the front panel.

With its high cost-effective design, Catcast HPS3402E DVB-S2 modulator is wildly used for broadcasting, interactive services, news gathering and other broadband satellite applications.

Features

* Fully complying with DVB-S2 (EN302307) and DVB-S (EN300421) standard

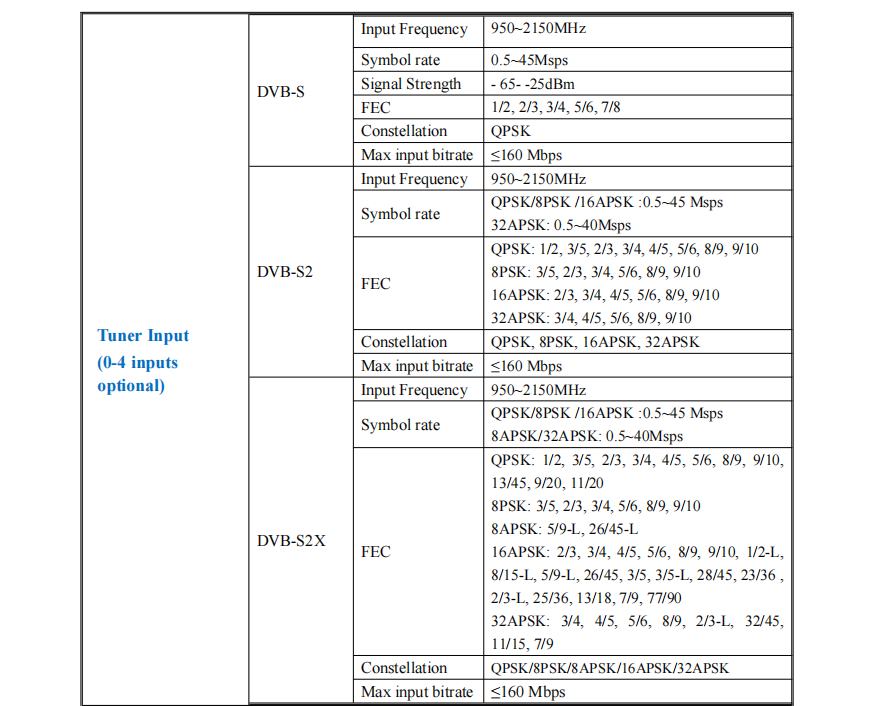

* ASI and/or DVB-S2 inputs for re-mux or pass through (4 ports for ASI and S2 tuner input combination)

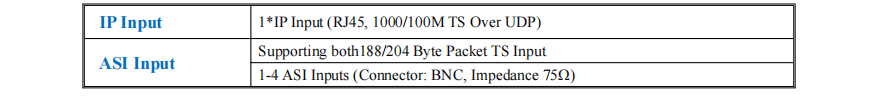

* Support IP (1000/100M) signal input for re-mux or pass through

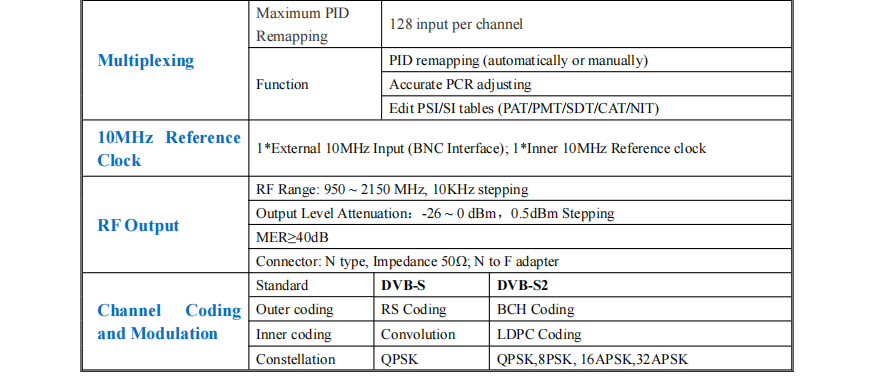

* Support Multiplexing and PSI/SI edit

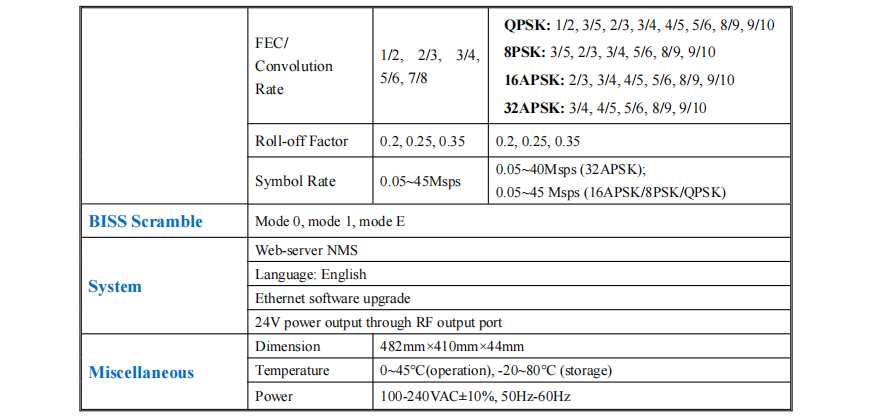

* QPSK, 8PSK, 16APSK, 32APSK Constellations

* Support RF CID setting (Optional as per order)

* Constant temperature crystal oscillator, as high as 0.1ppm stability

* Support coupling 10Mhz clock output through RF output port

* Support 24V power output through RF output port

* Support BISS scrambling

* Support SFN TS transmission

* Output frequency range: 950~2150MHz, 10KHz stepping

* Support local and remote control with Web-server NMS
