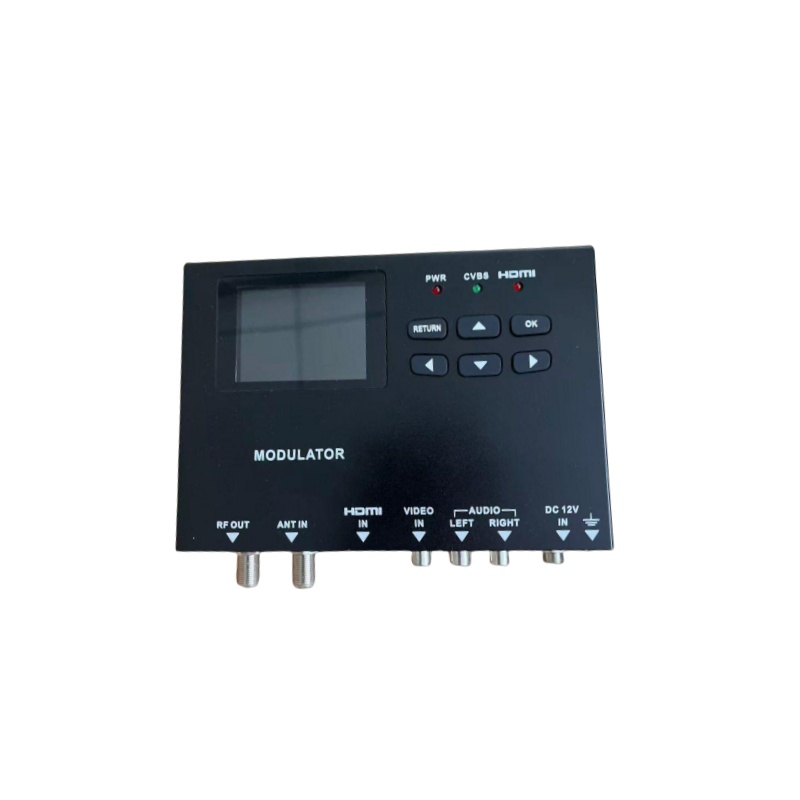

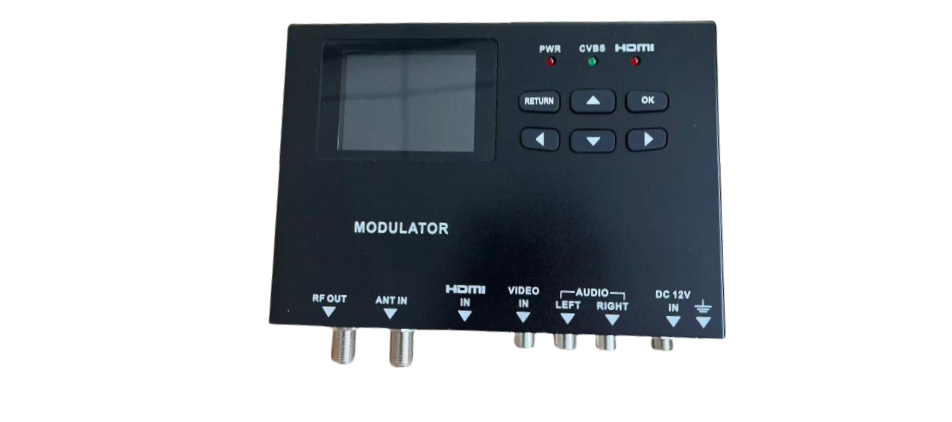

HP8601DM Single HDMI/CVBS Encoder Modulator

HP8601DM Single HDMI/CVBS Encoder Modulator

Overview

The HP8601DM 1-channel HDMI/CVBS to DTMB MPEG2 encoder modulator is a powerful

all-in-one encoder modulator capable of encoding HDMI or CVBS audio and video signals

into MPEG-2 format and modulating them into DTMB-compliant radio frequency signals. The

device supports single-channel input, with output frequency precisely adjustable in 1 kHz steps

from 50 to 860 MHz, and output level flexibly set in 1 dB steps from 60 to 100 dBuV,

adaptable to the needs of transmission networks of varying sizes.

Product Features

• Supports 1HDMI/CVBS inputs, compatible with standard definition (480i NTSC/576i

PAL) and full HD (1920×1080p) signals;

• Supports RF output (modulation: DTMB) ;

• Supports multiple HDMI input/output resolutions, including 1080p/60 and 1080i/60

formats;

• Optional AV interface and loopback output enhance system deployment flexibility;

• MPEG-2 video encoding, MPEG-1 Layer 2 audio encoding;

• Its compact size allows for standard rack mounting, saving data center space.
