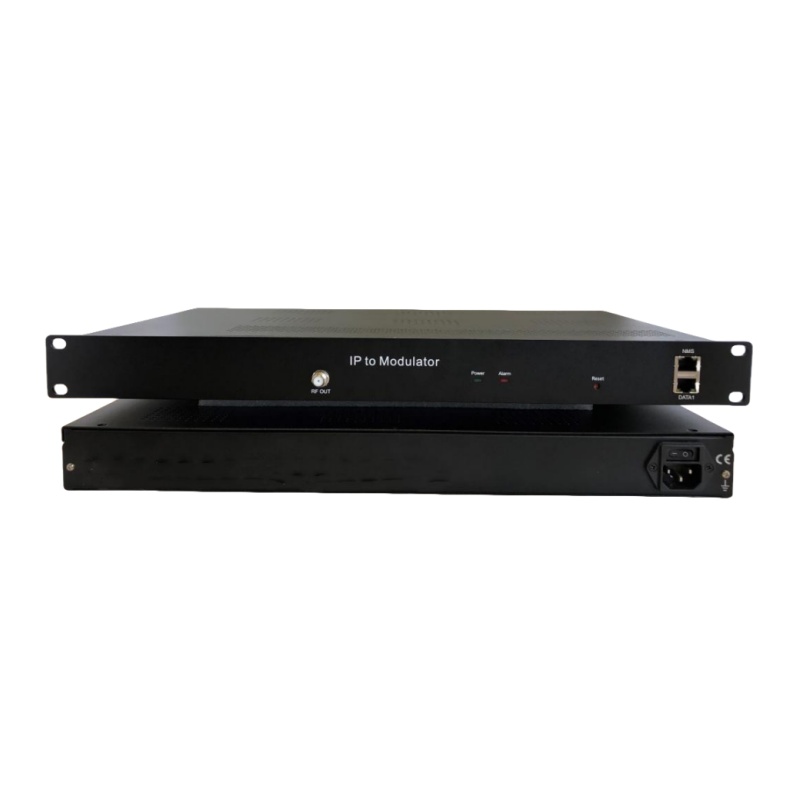

HPM308C IP to 8 DVB-C Modulator is professional high integration device which includes multiplexing and modulation functions. It supports 1000M IP input, 8 carriers DVB-C modulated RF output, 4 MPTS output. In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting.
| Quantity: | |
|---|---|
HPM308C
CatCast
Product Overview
HPM308C IP to 8 DVB-C Modulator is professional high integration device which includes multiplexing and modulation functions. It supports 1000M IP input, 8 carriers DVB-C modulated RF output, 4 MPTS output. In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting.
Key Features
1000M IP input, UDP protocol, support unicast/multicast
8 carriers RF DVB-C output,
Support “Null PKT Filter” function
Support PID Remapping/ PCR accurate adjusting, PID pass
Control via web management, and easy updates via web
Technical Specification
Input | IP input, 1GE data port, 1000M ethernet port UDP protocol, unicast/multicast | |||
Output | 8 carriers DVB-C RF output | |||
IP output : 4 MPTS IP output over UDP and RTP protocol | ||||
Multiplexing Modulation | Maximum PID Remapping | 180 output pids per channel | ||
Function | PID remapping ( automatically or manually) | |||
Accurate PCR adjusting | ||||
DVB-C | RF number | 8 RF DVB-C output | ||
Standard | EN300 429/ITU-T J.83A/B/C | |||
MER | ≥42db | |||
RF frequency | 50~960MHz, 1KHz step | |||
RFoutput level | -34~-10dBm , 0.1dBm step | |||
Symbol Rate | 5.0Msps~7.0Msps,1ksps stepd | |||
J.83A | J.83B/J.83C | |||
Constellation | 16/32/64/128/256QAM | 64/256 QAM | ||
Bandwidth | 8M | 6M | ||
System function | Network management(WEB) | |||
Chinese and English language | ||||
Ethernet software upgrade | ||||
Miscellaneous | Dimension (W×L×H) | 482mm*360mm*44mm | ||
weight | 5kg | |||
Environment | 0~45℃(work)；-20~80℃(storage) | |||
Power requirements | AC100~240V，50/60Hz | |||
