HPS33XX-N Series Multi-Protocol IP to RF Modulator

Product Outline

HPS33XX-N Series support multi-protocol IP inputs over UDP/RTP/RTSP/HLS/HTTP/SRT. It is

flexible to choose different modulator cards to support different modulation output, such as DVB-C,

DVB-T, ATSC and ISDB-T. HPS33XX-N Series bring a new level of intelligence and high

performance to the CATV system at a cost-effective price offer

Key Features

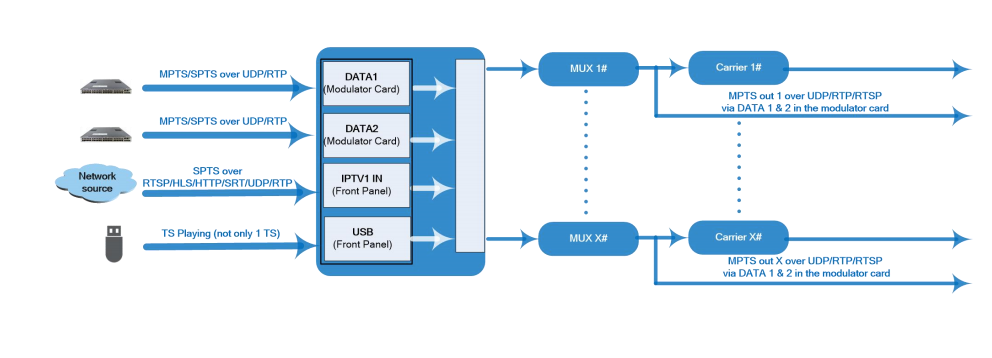

1) Support multi-protocol IP inputs over UDP/RTP/RTSP/HLS/HTTP/SRT

* SPTS input over UDP/RTP/RTSP/HLS/HTTP/SRT via the IPTV1 IN port in the front

panel

* MPTS/SPTS input over UDP and RTP via the 2 DATA ports in the modulator board Support multi-type order options for modulator cards, DVB-C, DVB-T, ATSC and

ISDB-T

2) Support about 100Mbps-300Mbps data processing (IPTV1IN port in the front panel, up to

the actual protocols etc) and max 840Mbps data processing(2 DATA ports in the modulator

card)

3) Support MPTS output over UDP/RTP via 2 DATA ports in the modulator card as mirror of

carriers output

4) IPTV1 IN port in the front panel is an unidirectional IP-input port; 2 DATA ports in the

modulator card are the bidirectional IP-input/output ports.

5) Support TS playing via USB Disk, USB 3.0

6) Support the remote reboot in Web GUI

7) Support Web management, Update via web
