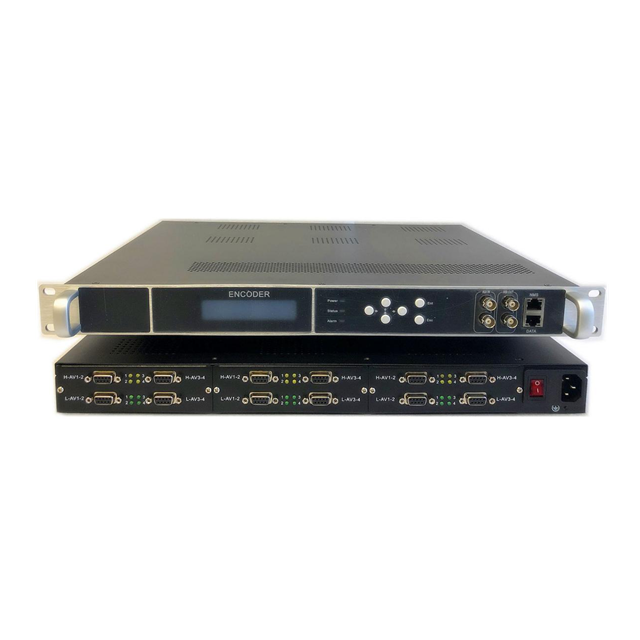

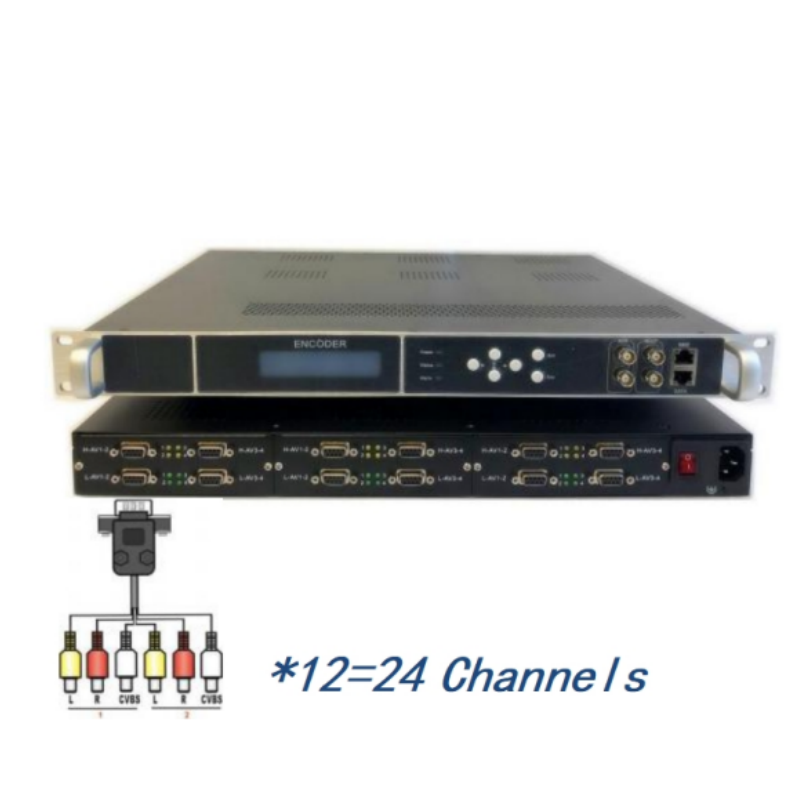

HP724LX 24 in 1 SD IP MPEG2 Encoder
Outline
HP724LX 24 in 1 SD MPEG2 Encoder is a professional SD audio & video encoding and multiplexing device with powerful functionality. It support 24 CVBS input, supporting MPEG2 encoding. This device can simultaneously encode 24 channel SD programs; moreover, it has an ASI input and can multiplex the input TS with the 24 encoded SPTS to generate a MPTS output. Also, the PSI/SI information can be inserted into SPTS output. In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as CATV digital head-end, satellite and terrestrial digital TV, etc.

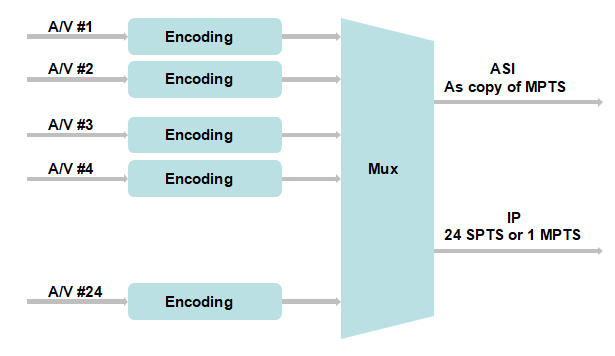

Principle Chart
Specifications
Input | 24 RCA inputs (12 VGA ports) | |
24 pairs of unbalanced stereo audio input, BNC interface | ||
2×ASI input, BNC interface | ||
Video |
Resolution | 720×480_60i, 720×576_50i(D1) |
544×480_60i, 544×576_50i(3/4D1) | ||
352×480_60i, 352×576_50i(HD1) | ||
480×480_60i, 480×576_50i(2/3D1) | ||
Encoding | MPEG-2 MP@ML | |
Bit-rate | 0.8Mbps~19Mbps (each channel) | |
Rate Control | CBR/VBR | |
GOP Structure | IBBP | |
Advanced Pretreatment | De-interlacing, noise reduction, sharpening | |
Audio | Encoding | MPEG-1 Layer 2 |
Sampling rate | 48KHz,44.1KHz,32KHz | |
Resolution | 24-bit | |
Bit-rate | 64Kb/s~384Kb/s each channel | |
Multiplexing | Multiplex 1ASI input and 8 channels SD encoding programs | |
Stream output | 2×ASI outputs, BNC interface(support PID filter and pass, support real time monitoring of the output stream. | |
IP out 24 SPTS,support IP out null packets filter | ||
System function | LCD/keyboard operating, network management(SNMP), English control interface | |
Ethernet software upgrade | ||
General | Dimensions (W×D×H) | 482mm×455mm×44.5mm |
Approx weight | 3.2 | |
Temperature range | 0~45℃(Operating), -20~80℃(Storage) | |
Power Requirements | AC 110V±10%, 50/60Hz or AC 220V±10%, 50/60Hz | |
Power consumption | 25W | |
