HP8224V
Catcast

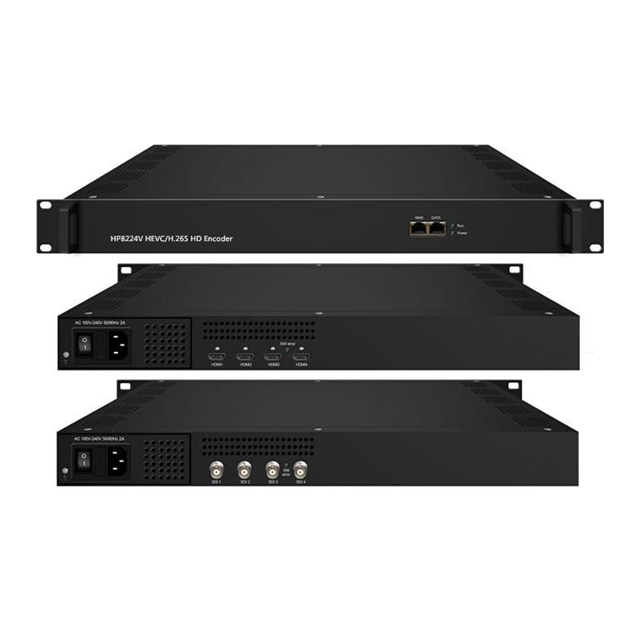

HP8224V HDMI SDI HEVC/H.265 H.264 HD Encoder

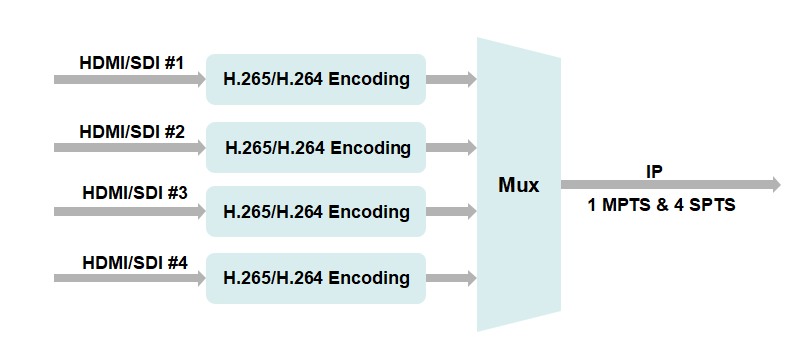

Principle Chart of Per Module
Technical specification
Input | 4/8/12×HDMI input (1.4), HDCP 1.4---OptionⅠ 4/8/12×SDI input---OptionⅡ | |||
Video Encoding | Encoding Format | HEVC/ H.265 , MPEG 4 AVC/H.264 | ||
Resolution | HDMI | 3840×2160_30P, 3840×2160_29.97P (Encoding 2 CHs per module for H.265, and encoding 1 CH for H.264 ) 1920×1080_60P,1920×1080_59.94P,1920×1080_50P, (Encoding 4 CHs per module for H.265, and encoding 2 CHs for H.264) 1280×720_60P, 1280×720_59.94P, 1280×720_50P (Encoding 4 CHs per module for H.264 and H.265) | ||
SDI | Input: 1920×1080_60i,1920×1080_59.94i,1920×1080_50i Output: 1920×1080_60P,1920×1080_59.94P,1920×1080_50P (Encoding 4 CHs per module for H.265, and encoding 2 CHs for H.264) | |||
Chroma | 4:2:0 | |||
Bitrate | 0.5Mbps~20Mbps (each channel) | |||
Rate Control | CBR/VBR | |||
GOP Structure | IBBP, IPPP | |||
Advanced Pretreatment | De-interlacing, Noise Reduction, Sharpening | |||
Audio Encoding | Encoding Format | MPEG-1 Layer 2, LC-AAC, HE-AAC, HE-AAC V2, AC3 Passthrough | ||
Sampling rate | 48KHz | |||
Bit-rate (each channel) | 48Kbps~384Kbps (MPEG-1 Layer 2 & LC-AAC) 24 Kbps~128 Kbps (HE-AAC) 18 Kbps~56 Kbps (HE-AAC V2) | |||
Audio Gain | 0~255 | |||
Stream output | 1 MPTS and maximum 4 SPTS output over UDP/RTP/RTSP per module, 1000M/100M Base-T Ethernet interface (unicast/ multicast) IP null packet filter | |||
System | Web based management | |||
Chinese-English control interface | ||||
Ethernet software upgrade | ||||
Miscellaneous | Dimension (W× L× H) | 482mm×328mm×44mm | ||
Approx weight | 5kg | |||
Temperature | 0~45℃(work), -20~80℃（Storage） | |||
Power | AC 100V-220V±10%, 50/60Hz | |||
Catcast HEVC/H.265 encoder’s advantages
1. Providing smooth TS
Catcast HEVC/H.265 encoder adopts Fujitsu chip which offers stable bitrate with lower fluctuation compared with other encoding chips, so it provides smooth TS, It is widely used in variety of distribution systems such as CATV digital head-end, IPTV head-end, satellite and terrestrial digital TV, etc.
There are 3 major picture types used in the different video algorithms, they are I, P and B. They are different in the following characteristics:
I-frames are the least compressible but don't require other video frames to decode.
P-frames can use data from previous frames to decompress and are more compressible than I-frames.
B-frames can use both previous and forward frames for data reference to get the highest amount of data compression
Frame Type |
Byte of data/KB |
Compression Ratio |
I | 18 | 7:1 |
P | 6 | 20:1 |
B | 2.5 | 50:1 |
In one word, B frame is the highest compression format which makes it possible to process HD video at low bit rate. HEVC/H.265 encoder is not able to save bandwidth unless it is with B frame. In encoder parameters, B frame is often described in GOP (Group of Pictures) structure, like “IBBP”.
