HP842A
Catcast
8543709990

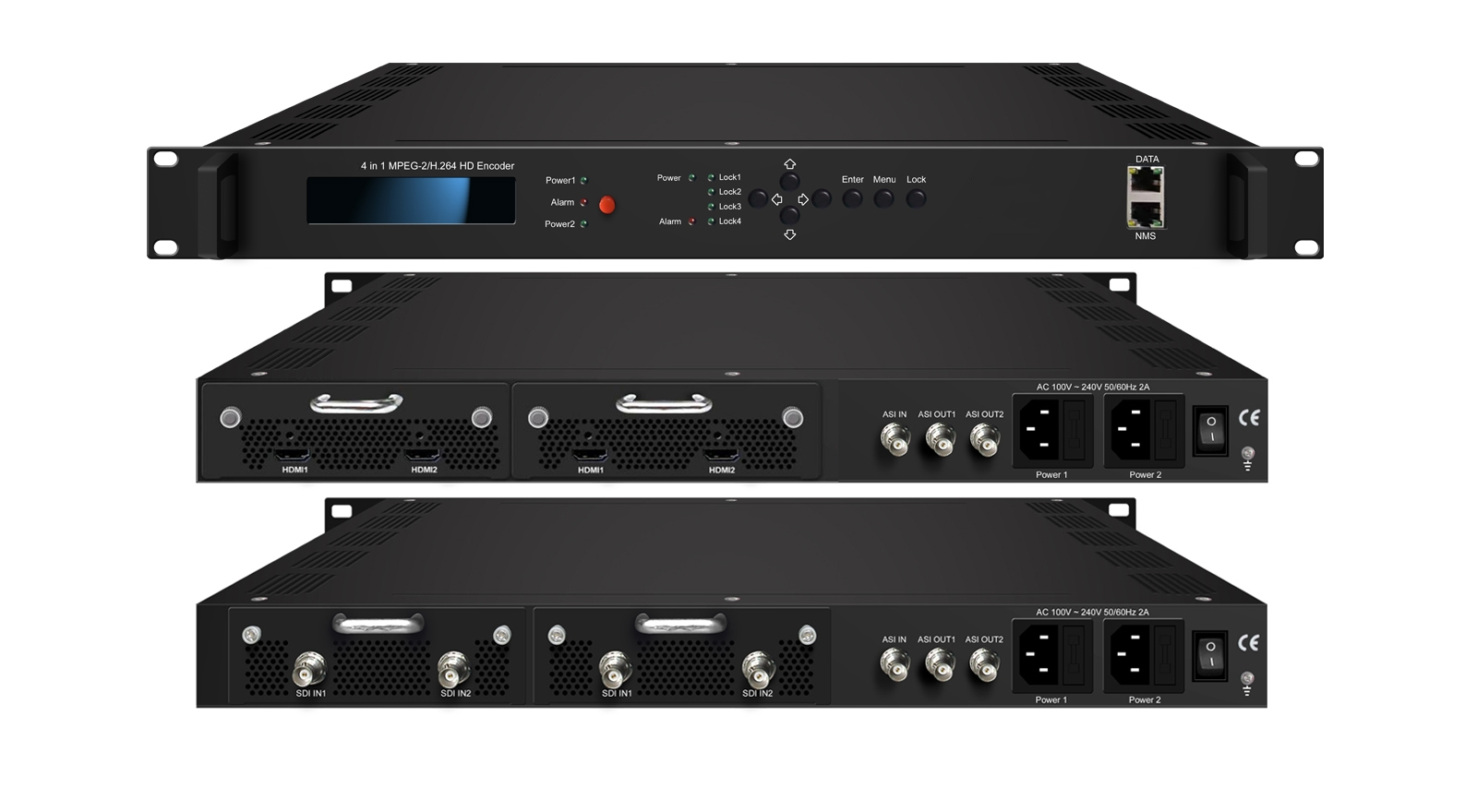

HP842A 4 in 1 MPEG-2 H.264 HD Encoder
Product Overview
HP842A 4‐in‐1 MPEG2/H.264 HD Encoder is a CatCast new professional HD/SD audio & video encoding device with a powerful functionality. It is equipped with 4 SDI or 4 HDMI inputs supporting MPEG2 and MPEG4 AVC/H.264 video encoding and MPEG2, MPEG2-AAC, MPEG4-AAC and DD AC3 audio encoding. The 4 encoded programs will output through ASI and IP ports in MPTS or SPTS, and there is also one ASI in port for re-multiplexing.
It adopts inner drawer‐type structural design which greatly facilitates the change of encoding modules if needed.
Key Features
* Dual power supply
* MPEG2 HD/SD & MPEG4 AVC/H.264 HD/SD video encoding
* MPEG 2, MPEG 2-AAC, MPEG 4-AAC and DD AC3 audio encoding
* Support dialog normalization (applicable for DD AC3)
* 4*SDI inputs or 4*HDMI inputs or 2* SDI + 2* HDMI inputs
* 1*ASI in for re-multiplexing
* Support resolution downscale conversion
* Support CC (closed caption) EIA 608 & EIA 708 & Line 21 (for SDI input version only)
* Support Low Delay function
* Support PSI/SI editing and inserting
* Supports IP null packet filter
* ASI output as mirror of MPTS or SPTS 1-4, IP (MPTS & 4 SPTS) output over UDP, RTP/RTSP
* LCD display, Remote control
* Web-based NMS management; Updates via web

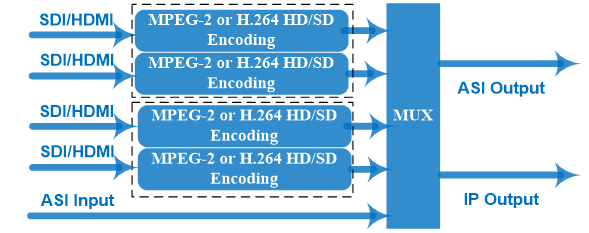

Principle Chart
Technical Specifications
Encoding Section
Video
Encoding | MPEG2 & MPEG4 AVC/H.264 |
Input | SDI*4 or HDMI*4 + 1 ASI in |
Resolution | 1920*1080_60P, 1920*1080_50P, (-for MPEG4 AVC/H.264 only) 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P 720*480_60i, 720*576_50i |
Support object resolution (for downscale conversion) | 1920*1080_60P, 1920*1080_50P, (-for MPEG4 AVC/H.264 only) 1440*1080_60i, 1440*1080_50i, 1280*720_60p, 1280*720_50P 720*480_60i, 720*576_50i |
Bit Rate | 1~19.5Mbps |
Chroma Sample | 4:2:0 |
Aspect Ratio | 16:9, 4:3 |
Audio
encoding | MPEG 2, MPEG2-AAC, MPEG4-AAC, Dolby Digital AC3 (2.0) | |
Dialog Normalization (Applicable for DD AC3 encoding only) | -31 ~ -1 dB | |
Sample rate | 48KHz | |
Bit rate | 64kbps, 96kbps,128kbps, 192kbps, 256kbps, 320kbps | |
System
Local interface | LCD + control buttons |
Remote management | Web NMS |
Low Delay Mode | Normal, mode 1, mode 2, Manual |
output | 2*ASI out (BNC type, mirror ports/the same one TS); IP (1 MPTS & 4 SPTS) over UDP, RTP/RTSP (RJ45, 1000M) |
NMS interface | RJ45, 100M |
Language | English |
General
Power | AC 100V~240V |
Dimensions | 482*400*44mm |
Operation temperature | 0~45℃ |
