HP8224HS
Catcast

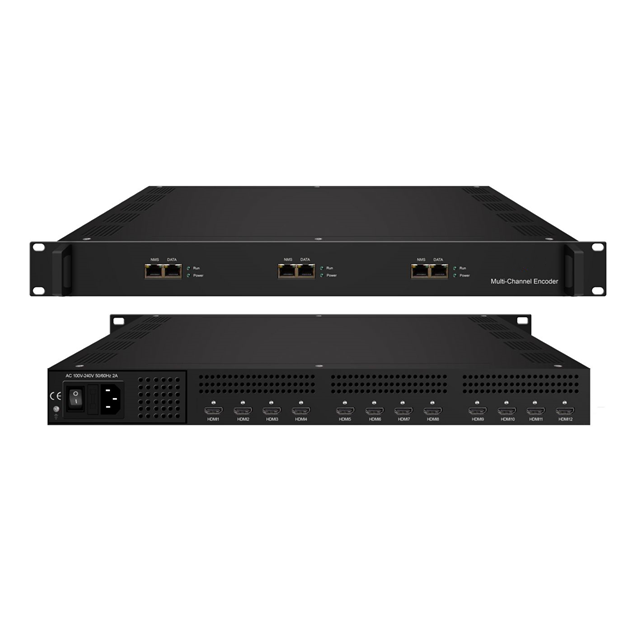

HP8224HS Multi-Channel HDMI H.265 H.264 Encoder
Product Overview
HP8224HS Multi-Channel encoder is a professional HD audio & video encoding and multiplexing device. It has 4/8/12 HDMI video input interfaces, and supports HEVC/H.265, MPEG-4 AVC/H.264 video encoding, with H.265’s high compression ratio, it helps to save bandwidth up to 75%. In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting, and IPTV streaming etc.
Key features
· 4/8/12× HDMI input with 4/8/12 SPTS and 1 MPTS output through Data 1 and Data 2
· HEVC/H.265, MPEG4 AVC/H.264 video encoding format
· Support B frame GOP, high video compression ratio and stable bitrate
· MPEG-1 Layer 2, LC-AAC, HE-AAC, HE-AAC V2, AC3 Passthrough audio encoding format.
· 1 ASI output (optional) as copy of MPTS
· IP output over UDP and RTP/RTSP protocol
· Support QR code, LOGO, closed caption insertion.
· Support “Null PKT Filter” function
· Support PID Remapping/ PCR accurate adjusting
· Control via web management, and easy updates via web

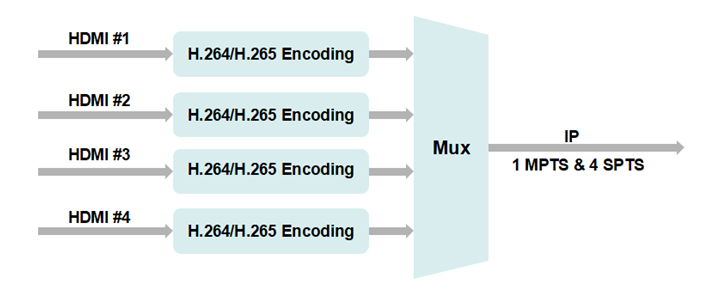

Principle Chart of Per Module
Technical Specification
Input | 4/8/12×HDMI(1.4) input for option, HDCP 1.4 | ||
Video Encoding | Encoding Format | HEVC/ H.265 , MPEG 4 AVC/H.264 | |
Resolution | Input: 1920×1080_60P, 1920×1080_50P, 1920×1080_59.94P,1920×1080_60i, 1920×1080_50i, 1920×1080_59.94i, 1280×720_60P, 1280×720_59.94P, 1280×720_50P | ||
Output: 1920×1080_60P , 1920×1080_50P, 1920×1080_30P,1920×1080_25P, 1280×720_60P， 1280×720_50P | |||
Chroma | 4:2:0 | ||
Bitrate | 1Mbps~15Mbps (each channel) | ||
Rate Control | CBR/VBR | ||
GOP Structure | IBP, IBBP, IBBBP, IPPP | ||
Advanced Pretreatment | Noise reduction | ||
Audio Encoding | Encoding Format | MPEG-1 Layer 2, LC-AAC, HE-AAC, HE-AAC V2, AC3 Passthrough (optional) | |
Sampling rate | 48KHz | ||
Bit-rate (each channel) | 48Kbps~384Kbps (MPEG-1 Layer 2 & LC-AAC) 24 Kbps~128 Kbps (HE-AAC) 18 Kbps~56 Kbps (HE-AAC V2) | ||
Stream output (per module) | 1 MPTS and 4 SPTS output over UDP/RTP/RTSP, Base-T Ethernet interface (1000M/100M self-adaption) (unicast/ multicast), IP null packet filter | ||
System | Web based management | ||
Chinese-English control interface | |||
Ethernet software upgrade | |||
Miscellaneous | Dimension (W× L× H) | 482mm×328mm×44mm | |
Approx weight | 5kg | ||
Temperature | 0~45℃(work), -20~80℃（Storage） | ||
Power | AC 100V-220V±10%, 50/60Hz | ||

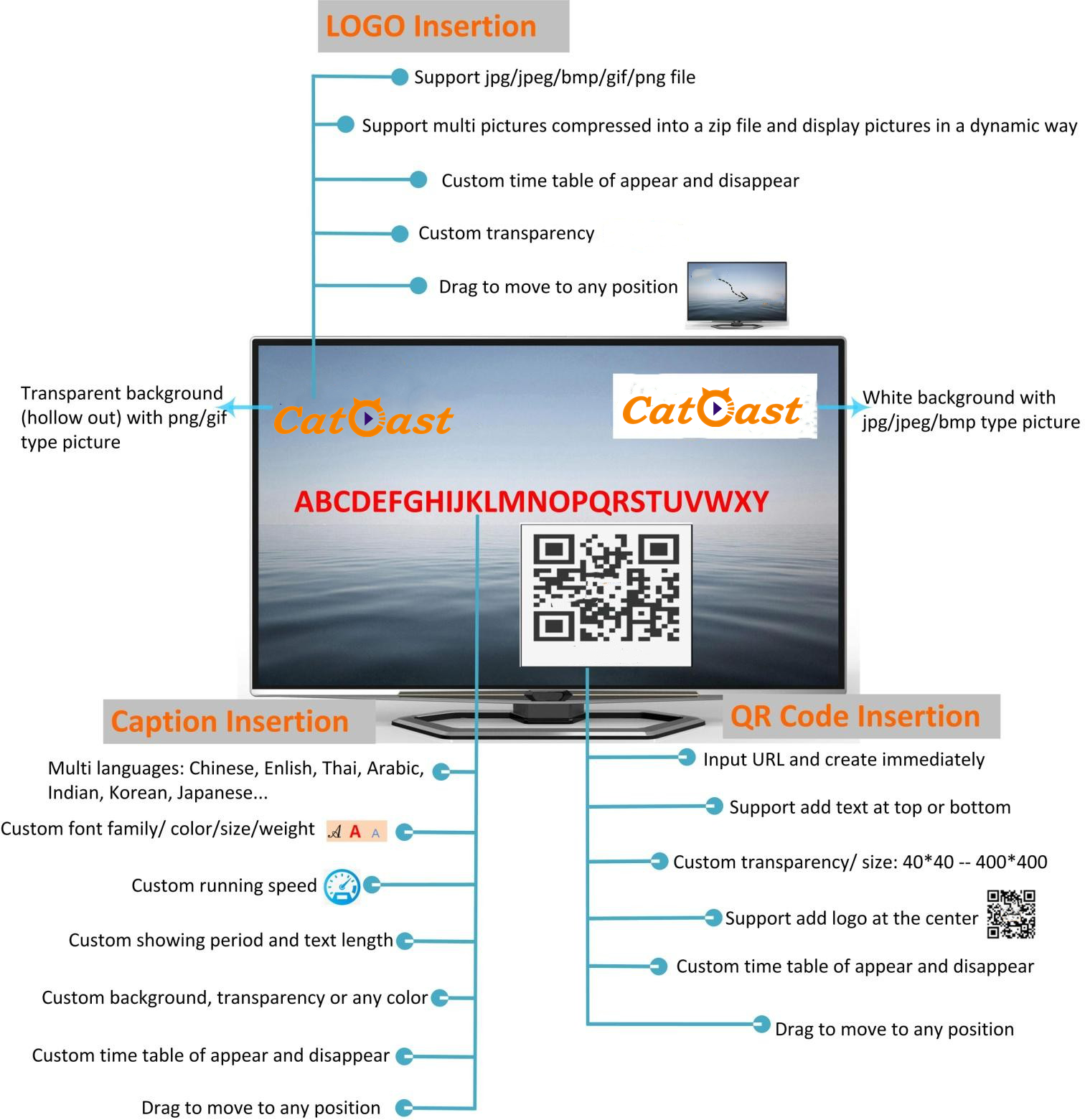

OSD (Logo/ Caption/QR Code) Insertion
