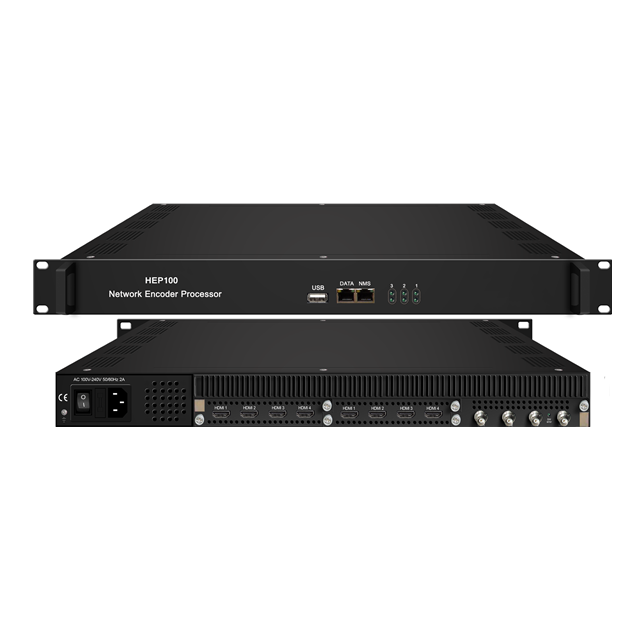

HEP100 HDMI SDI CVBS To IP H.265 Network Media Encoder
Overview
HEP100 Network Encoder Processor is an IP broadcasting device with multiple inputs (HDMI/SDI/CVBS and etc) which can convert the input programs into IP format and send to terminals through the internet/LAN.
This 1-U chassis comes with 3 slots which allow loading different encoder modules with different interfaces and video formats.
Key Features
Modular design, 1U chassis with 3 slots
Support flexible combination of encoding modules, up to 12 HD programs inputs
HDMI/SDI/CVBS modules available, HEVC/MPEG4/MPEG2 video format for option
1 GE port with maximum 200Mbps data processing and output
IP out over UDP (SPTS), RTP, RTSP, RTMP, HTTP, HLS (Unicast/Multicast)
Support Web management, Upgrade via USB port
Encoder Module Specifications
4 HDMI Encoding Module
HP224H/HV
Module Specifications:
Input: 4×HDMI (1.4) input, HDCP 1.4
Video Encoding:
Video format: HEVC/H.265 & MPEG 4 AVC/H.264---HP224H
HEVC/H.265---HP224HV
Resolution:
1920×1080_60P, 1920×1080_59.94P, 1920×1080_50P;
1280×720_60P, 1280×720_59.94P, 1280×720_50P
Input: 1920×1080_60i, 1920×1080_59.94i, 1920×1080_50i
Output: 1920×1080_60P, 1920×1080_59.94P, 1920×1080_50P
Chroma: 4:2:0 Bit rate (each channel): 0.5Mbps~20Mbps (H.265)
4 Mbps~20Mbps (H.264)
Rate Control: CBR/VBR GOP structure: IBBP, IPPP
Audio Encoding:
Audio format: MPEG-1 Layer 2, LC-AAC, HE-AAC, HE-AAC V2, AC3 Passthrough
Sampling rate: 48KHz
Bit-rate (each channel):
48Kbps~384Kbps (MPEG-1 Layer 2 & LC-AAC)
24 Kbps~128 Kbps (HE-AAC)
18 Kbps~56 Kbps (HE-AAC V2)
Audio Gain: 0~255
Support Logo, QR Code insertion--Optional as per order
4 HDMI Encoding Module
HP224HS
Module Specifications:
Input: 4*HDMI (1.4) input, HDCP 1.4
Video Encoding:
Video format: HEVC/ H.265, MPEG4 AVC/H.264
Input Resolution: 1920×1080_60P, 1920×1080_50P, 1920×1080_59.94P,
1920×1080_60i, 1920×1080_50i, 1920×1080_59.94i,
1280×720_60P, 1280×720_59.94P, 1280×720_50P,
Output Resolution: 1920×1080_60P , 1920×1080_50P, 1920×1080_30P,
1920×1080_25P, 1280×720_60P, 1280××720_50P
Chroma: 4:2:0
GOP structure: IP, IBBP, IBBBP
Video Bit-rate: 1Mbps~15Mbps per channel
Rate Control: CBR/VBR
Audio Encoding:
Audio format: MPEG-1 Layer 2, LC-AAC, HE-AAC, HE-AAC V2, AC3 Passthrough
Sampling rate: 48 KHz
Resolution: 24-bit
Audio Bit-rate (per channel):
48Kbps~384Kbps (MPEG-1 Layer 2 & LC-AAC)
24 Kbps~128 Kbps (HE-AAC), 18 Kbps~56 Kbps (HE-AAC V2)
Others: Support Logo, Caption, QR Code insertion
4 HDMI/SDI Encoding Module
HP224V
Module Specifications:
Input: 4×SDI/HDMI (1.4) input, HDCP 1.4
Output: 1 MPTS and maximum 4 SPTS output over UDP/RTP/RTSP; IPv4, IPv6
Video Encoding:
Video format: HEVC/H.265 & MPEG 4 AVC/H.264
Resolution:
HDMI:
3840×2160_30P, 3840×2160_29.97P;
(Encoding 2 CHs per module for H.265, and encoding 1 CH for H.264)
1920×1080_60P, 1920×1080_59.94P, 1920×1080_50P;
(Encoding 4 CHs per module for H.265, and encoding 2 CHs for H.264)
1280×720_60P, 1280×720_59.94P, 1280×720_50P
(Encoding 4 CHs per module for H.264 and H.265)
SDI:
1920×1080_60P, 1920×1080_59.94P, 1920×1080_50P;
(Encoding 4 CHs per module for H.265, and encoding 2 CHs for H.264)
1280×720_60P, 1280×720_59.94P, 1280×720_50P
(Encoding 4 CHs per module for H.264 and H.265)
Input: 1920×1080_60i, 1920×1080_59.94i, 1920×1080_50i
Output: 1920×1080_60P, 1920×1080_59.94P, 1920×1080_50P
(Encoding 4 CHs per module for H.265, and encoding 2 CHs for H.264)
Chroma: 4:2:0
Bit rate: 0.5Mbps~20Mbps (each channel)
Rate Control: CBR/VBR
GOP structure: IBBP, IPPP
Audio Encoding:
Audio format: MPEG-1 Layer 2, LC-AAC, HE-AAC, HE-AAC V2, AC3 Passthrough
Sampling rate: 48KHz
Bit-rate (each channel):
48Kbps~384Kbps (MPEG-1 Layer 2 & LC-AAC)
24 Kbps~128 Kbps (HE-AAC)
18 Kbps~56 Kbps (HE-AAC V2)
Audio Gain: 0~255
2 HDMI Encoding Module
HP202A
Module Specifications:
Input: 2*HDMI, 2*BNC for CC (Closed Caption) input and stream connector
Video Encoding:
Video format: MPEG2 & MPEG4 AVC/H.264
Input resolution:
1920*1080_60P, 1920*1080_50P, 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P, 720*480_60i, 720*576_50i
Rate control mode: CBR/VBR
Aspect ratio: 16:9, 4:3
Video bitrate: 0.8~19Mbps for MPEG-2 /H.264 encoding
Support CC (closed caption)
Audio Encoding:
Audio format: MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC,
Dolby Digital AC3 (2.0) encoding (Optional); AC3 (2.0/5.1) passthrough
Sampling rate: 48KHz
Audio bitrate: 64Kbps-320kbps each channel
2 SDI Encoding Module
HP202A-D
Module Specifications:
Input: 2*HD-SDI and stream connector
Video Encoding:
Video format: MPEG2 & MPEG4 AVC/H.264
Input resolution:
1920*1080_60P, 1920*1080_50P, 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P, 720*480_60i, 720*576_50i
Rate control mode: CBR/VBR
Aspect ratio: 16:9, 4:3
Video bitrate: 0.8~19Mbps for MPEG-2 /H.264 encoding;
Support CC (closed caption)
Audio Encoding:
Audio format:
MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC,
Dolby Digital AC3 (2.0) encoding (Optional), AC3 (2.0/5.1) passthrough
Sampling rate: 48KHz
Audio bitrate: 64Kbps-320kbps each channel
4 HDMI Encoding Module
HP224
Module Specifications:
Input: 4*HDMI
Video Encoding:
Video format: MPEG-4 AVC/H.264
Input resolution:
1920×1080_60P, 1920×1080_50P, 1920×1080_60i, 1920×1080_50i,
1280×720_60P, 1280×720_50P, 720×576_50i, 720×480_60i
GOP structure: IBBP
Video bitrate: 0.8Mbps~19Mbps each channel
Rate Control: CBR/VBR
Audio Encoding:
Audio format: MPEG1 Layer II, (MPEG-2 AAC, MPEG-4 AAC Optional as per order), AC3 passthrough
Sampling rate: 48KHz
Resolution: 24-bit
Audio bitrate: 64Kbps~320Kbps each channel
Audio Gain Control: 0-400
4 HDMI Encoding Module
HP224S
Module Specifications:
Input: 4*HDMI
Video Encoding:
Video format: MPEG-4 AVC/H.264
Input resolution: 1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i,1280×720_60P, 1280×720_50P, 720×576_50i, 720×480_60i,
Output resolution: 1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P, 720×576_25P,720×480_30P,
GOP structure: IP…P (P Frame adjustment, without B Frame)
Video Bit-rate: 1Mbps~13Mbps each channel
Rate Control: CBR/VBR
Audio Encoding:
Audio format: MPEG1 Layer II, support audio gain adjustment
Sampling rate: 48 KHz
Resolution: 24-bit
Audio Bit-rate: 64kbps,128Kbps,192kbps,224kbps,256kbps,320kbps,384kbps
Support Logo, Caption, QR Code insertion (Language Supported: 中文, English, العربية, ไทย, हिन्दी, руская, اردو, for more languages please consult us…)
8 CVBS Encoding Module
HP218S
Module Specifications:
Input: 8 CVBS video, 8 Stereo Audio (DB15 to RCA)
Output: 1 MPTS and 8 SPTS output over UDP/RTP, unicast and multicast
Video Encoding:
Video format: MPEG4 AVC/H.264
Image format: PAL, NTSC SD signal
Resolution: 720×576i, 720×480i
Rate Control: CBR/VBR GOP structure: IPP
Video bitrate: 1~7Mbps each channel
Audio Encoding:
Audio format: MPEG-1 Layer 2 Sampling rate: 48KHz
Resolution: 24-bit
Bit-rate: 64/128/192/224/256/320/384Kbps each channel
Support Logo, Caption, QR Code insertion (Language Supported: 中文, English,
اردو, for more languages please consult us…)
4 CVBS Encoding Module
HP214/HP214A
Module Specifications:
Input: 4 CVBS video, 4 Stereo Audio (DB9 to RCA)
Output: 1MPTS and 4 SPTS output over UDP/RTP, unicast and multicast
Video Encoding:
Video format: MPEG-2 (4:2:0)
Image format: PAL, NTSC SD signal
Input resolution: 720×480_60i, 544×480_60i, 352×480_60i, 352×240_60i,
320×240_60i, 176×240_60i, 176×120_60i, 720×576_50i,
704×576_50i, 640×576_50i, 352×288_50i, 320×288_50i,
176×288_50i, 176×144_50i
GOP structure: IP, IBP, IBBP, IBBBP
Video bit rate: 0.5Mbps~8Mbps per channel
Support CC (closed caption)
Audio Encoding:
Audio format: MPEG-1 Layer 2, DD AC3 (2.0)
Sampling rate: 48KHz
Resolution: 24-bit
Audio bitrate: 128/192/256/320/384kbps each channel
Support Logo, Caption, QR Code insertion (for HP214A only)
4 CVBS/SDI Encoding Module
HP214B
Module Specifications:
Input: 4 CVBS (DB9 to RCA) or 4 SDI (BNC)
Output: 1MPTS and 4 SPTS output over UDP/RTP, unicast and multicast
Video Encoding:
Video format: MPEG-2, MPEG4 AVC/H.264
Image format: PAL, NTSC SD signal (Only for CVBS input)
Resolution:
Input: 720*576 @50i
Output: 720*576/352*288/320*240/320*180/176*144/160*120/160*90@50Hz
Input: 720*480 @60i
Output: 720*480/352*288/320*240/320*180/176*144/160*120/160*90@60Hz
Rate Control: CBR/VBR
GOP structure: IPPP, IBPBP, IBBPB, IBBBP
Video bitrate: 0.5~5Mbps
Audio Encoding:
Audio format: MPEG1 Audio Layer 2, LC-AAC, HE-AAC
Sampling rate: 48KHz
Bits per sample: 32-bit
Bit-rate: 48-384Kbps each channel
Support Logo, Caption, QR Code insertion
System Diagram Illustration:
Equipment Specifications:
Dimension(W×L×H): 440mm×324mm×44mm |
Approx weight: 6kg |
Environment: 0~45℃(work); -20~80℃(Storage） |
Power requirements: AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz |
