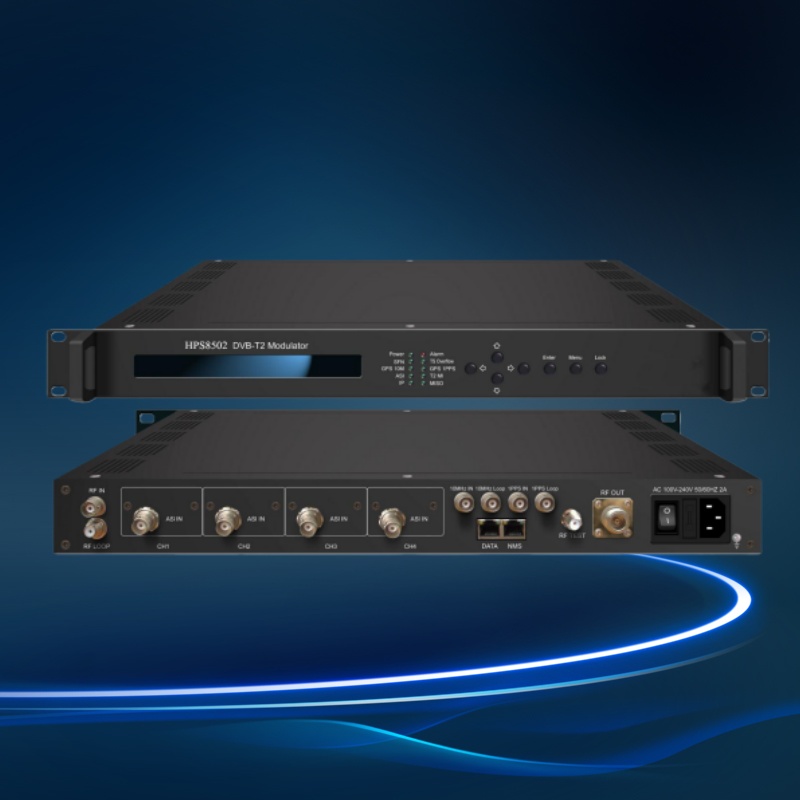

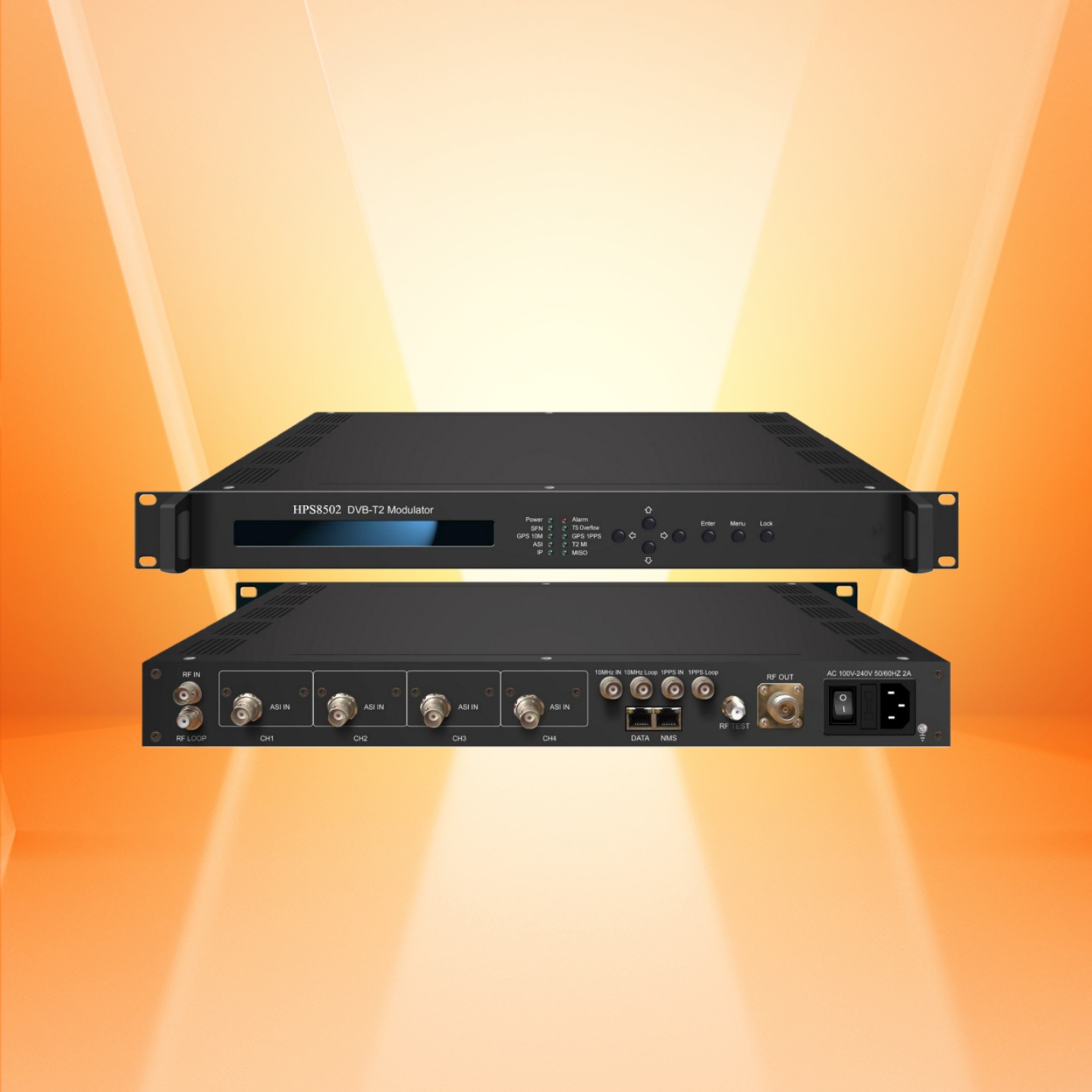

HPS8502 DVB-T2 Modulator

HPS8502 DVB-T2 Modulator

Outline

HPS8502 DVB-T/T2 modulator is our new product developed complying with the DVB-T/T2 standard. With its advanced modulating technology, this modulator can effectively make use of the ground spectrum resources and make it possible to provide reliable signals for fixed, mobile and portable devices. Compared with DVB-T, the channel capacity is increased by 30% under the similar carrier to noise ratio (CNR) threshold. Moreover, this device can be upgraded and controlled through network system, which allows it to be widely used in setting up digital broadcasting network and provide good signals for scientific laboratory and DVB-T/T2 STB.

Features

• Fully complying with EN302 755 and EN300 744 standard HPS8502

• 2ASI input ports

• 2 IP input over UDP protocol

• 10MHz input/loop out, 1PPS input/loop out

• DVB-T/T2 RF out in one device

• Supports single PLP

• Support MISO and SISO

• Support MFN net mode

• Supports non-linear digital pre-distortion (DPD)

• Constant temperature crystal oscillator, as high as 0.1ppm stability

• Support PID bypass and pass-through（option）

• Keyboard operation and LCD display

• Web Network management system

Specifications

Principle Chart
