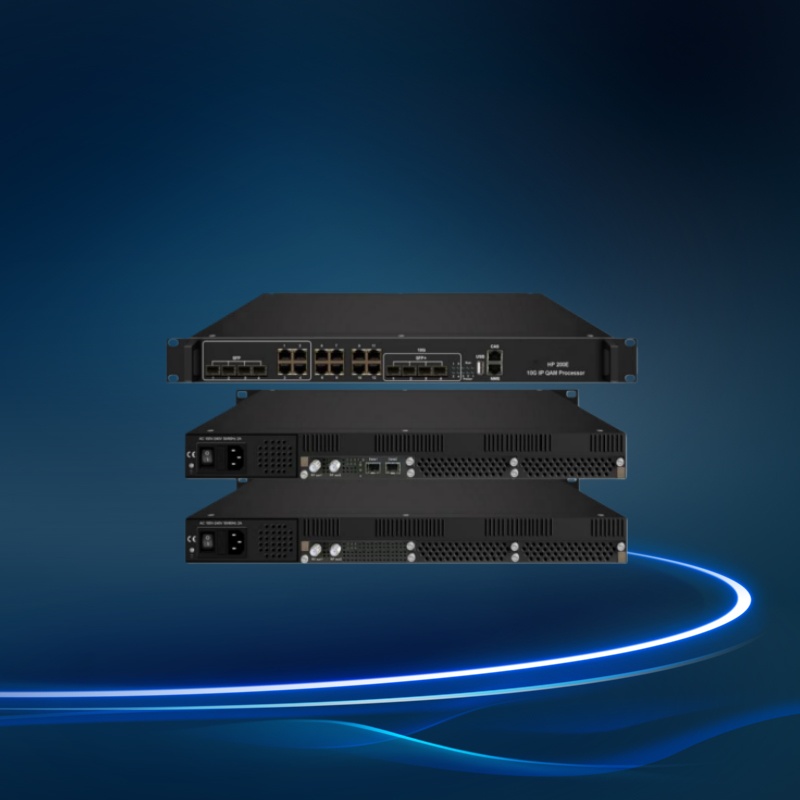

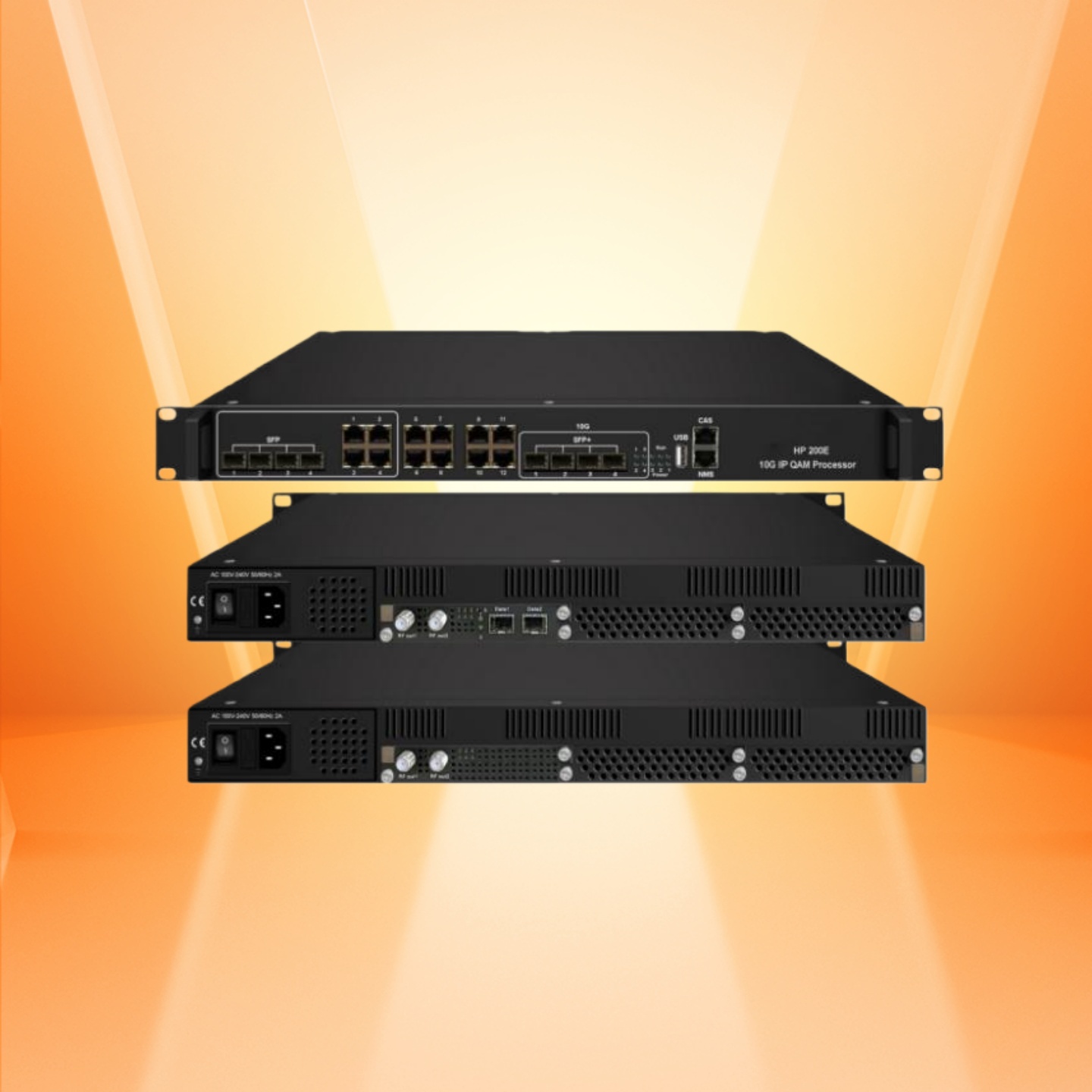

HP200E 10G IP To 64 QAM Modulator 4 SFP+10GE Input 64 Qam Output

HP200E 10G IP QAM processor is an all-in-one device developed by CATCAST which integrates multiplexer, scrambler and modulator in one body with maximum 192 DVB-C QAM channels output. With 10G switch built in, it can process 10G optical signals to work as a traditional QAM modulator. This processor is equipped with 3 card slots to load 32ch or 48ch or 64ch QAM card. Its high density helps operators to save cost to the most extent.
Availability:
Quantity:
  • HP200E

  • CATCAST

Overview

10G IP to 64 QAM modulator 4 SFP+10GE input 64 qam output processor two power supply for dvbc system
Product Description


Summary

HP200E 10G IP QAM processor is an all-in-one device developed by CATCAST which integrates multiplexer, scrambler and modulator in one body with maximum 192 DVB-C QAM channels output. With 10G switch built in, it can process 10G optical signals to work as a traditional QAM modulator.
This processor is equipped with 3 card slots to load 32ch or 48ch or 64ch QAM card. Its high
density helps operators to save cost to the most extent.

     Key Features
    Support 4 SFP+ (10G)/4 SFP(1G) ports and 12 GE ports input & output from the front panel, SFP port 1-4 and GE port 1-4 are in the same working group (choose one to use from the corresponding SFP port and GE port) and 2 SFP ports input(optional) per daughter card (32/48/64 QAM)
   High density, modularized plug-in design, 1U chassis with max 3 QAM cards
   Support multiplexer and scrambler with max 6 CAS Simultaneous Encryption
   Maximum 192 non-adjacent QAM carriers output
   Flexible combination of 32QAM/48QAM/64QAM card
   Supports accurate PCR adjusting/CA filtering, PID remapping and PSI/SI editing
   Input Port/IP Backup function
   Web-based Network management
   1*220VAC or 2*220VAC not hot-swapping PSU option

   Inner Principle Chart (Example: one 64qam card + one 48qam card + one 32qam card)

     Carrier Setting Illustration (Example: 64qam card)
   Specification
Input
IP Input
Max1024 IP inputs per card through 4 SFP+, 4 SFP and 12 GE ports in the front panel and 2 SFP ports in the card itself
Transmission Rate
Max 9600Mbps for each 10G SFP+ input/Max 960Mbps for each GE and SFP input
Transport Protocol
TS over UDP/RTP, unicast and multicast, IGMP V2/V3
Mux
Max PIDs Remapping
256 per output channel
Functions
PID remapping (auto/manually optional)
PCR accurate adjusting
PSI/SI table automatically generating
Scrambling
Max simulcrypt CA
6
Scramble Standard
ETR289, ETSI 101 197, ETSI 103 197
Connection
Local/remote connection
Modulation
Modulation Standard
EN300 429/ITU-T J.83A/B/C
Constellation
J.83A
Constellation :16/32/64/128/256QAM
Bandwidth :8M
J.83B/C
Constellation :64/256QAM
Bandwidth :6M
QAM Channel
32/48/64/80/96/112/128/144/160/176/192 non-adjacent carriers output,
384Mbps bandwidth for each RF port
Symbol Rate
3600~7200Ksps, 1ksps stepping
5057Ksps (J.83B, 64QAM) ; 5361Ksps (J.83B, 256QAM)
Constellation
16, 32, 64, 128, 256QAM
FEC
RS (204, 188)
RF Output
Interface (per card)
2 F type output ports for 32/48/64 carriers card, 75Ω.
32ch/48ch/64ch qam card : Carrier 1~16/1~24/1~32 out thru RF1, 17~32/25~48/33~64 thru RF2
RF Range
50~960MHz, 1kHz stepping
Output Level
-20dBm~+10dBm(87~117dbµV), 0.1dB stepping
MER
≥ 40dB
TS output
Per Daughter QAM Card
32/48/64 IP output over UDP/RTP/RTSP, unicast/multicast,
through 4 SFP+ ports, 4 SFP ports and 12 GE ports in the front panel
System
Web-based Network management
General
Dimension
480mm×440mm×44.5mm (WxLxH)
Temperature
0~45℃(operation), -20~80℃(storage)
Power Supply
AC 100V±10%, 50/60Hz ; or AC 220V±10%, 50/60Hz
Consumption
About 200W (3 daughter QAM cards)

    Major Technical Comparison

HP200D
HP200E
Card Number
Max 2
Max 3
SFP+/SFP/RJ45 ports in the front panel
3 SFP+(10G)/SFP(1G) ports and 2 GE ports
4 SFP+ (10G)/4 SFP(1G) ports and 12 GE ports
Max Carriers number
112
192
Inner connector GE ports
6
12
DATA Port in card
Depends on card spec
2 SFP ports as input per card


     Order Guide

* Card Type Option: 32, 48 or 64 QAM card
* Card Number Option: 1, 2 or 3 pcs
* SFP ports option in card: With or Without
* PSU option: 1*220VAC or 2*220VAC not hot-swapping PSU
