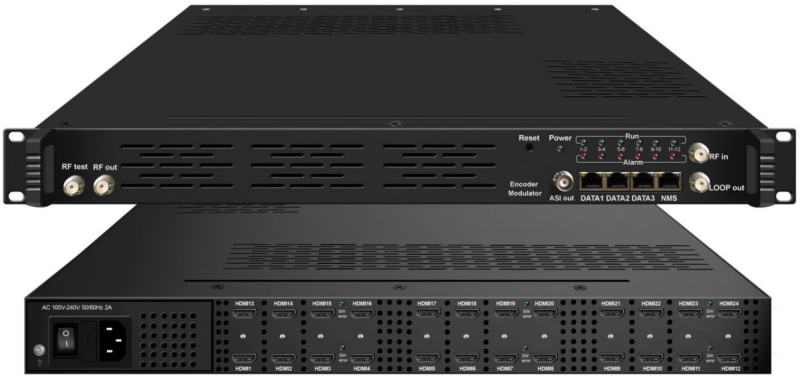

HP8544MF 24 in 1 H.264 HDMI Encoder Modulator

Share to:

HP8544MF 24 in 1 H.264 HDMI Encoder Modulator

24 channels HDMI input, IP input, DVB-C (ATSC) tuner input H.264 encoding ASI, IP output 16*DVB-C/8*DVB-T/8*ATSC/6*ISDB-T RF output

carton size:	61cmx61cmx15cm
Availability:

Quantity:



Inquire Add to Basket

Model:
HP8544MF
Brand:
Catcast
Code:
8517623990
PDF:
HP8544MF 24xHDMI encoder modulator NEW.pdf

Product Description

HP8544MF 24 in 1 H.264 HDMI Encoder Modulator

Product Overview

HP8544MF HD encoder modulator is a professional high integration device which includes encoding, multiplexing, scrambling and modulating. It supports 24 HDMI inputs, one DVB-C (ATSC optional) tuner input and maximum 512 IP input through Data1 (GE) port. It also supports DVB-C RF out with 16 non-adjacent carries or DVB-T/ATSC RF out with 8 non-adjacent carriers or ISDB-T RF out with 6 non-adjacent carriers and supports 16 MPTS as mirror of 16 carriers or 8 MPTS as mirror of 8 carriers or 6 MPTS as mirror of 6 carriers through Data2 (GE) output port. To meet customers’ various requirements, it is also equipped with 1 ASI output (Optional) as mirror of one of RF output carriers. This full function device makes it ideal for small CATV head end system.

Key features

· 24 HDMI inputs with MPEG-4 AVC/H.264 Encoding

· 1DVB-C(ATSC optional) tuner input for re-mux

· Each carrier out channel process maximum 32 IP from DATA1 input port (UDP&RTP protocol)

· MPEG1 Layer II; AC3 pass through ; MPEG-2 AAC,MPEG-4 AAC (Optional)

· Support 16 groups multiplexing/Scrambling/DVB-C modulating

· Support 8 groups multiplexing/DVB-T/ATSC modulating---Optional

· Support 6 groups multiplexing/ISDB-T modulating---Optional

· Support 1 ASI out as mirror of one of RF output carriers---Optional

· Support 16 MPTS IP (DATA2 port only) output over UDP, RTP/RTSP

· Support 8 MPTS IP (DATA2 port only) output over UDP, RTP/RTSP-- DVB-T/ATSC RF out

· Support 6 MPTS IP (DATA2 port only) output over UDP, RTP/RTSP-- ISDB-T RF out

· Support PID remapping/ accurate PCR adjusting/PSI/SI editing and inserting

· Control via web management, and easy updates via web

Principle Chart

DVB-C Principle Chart

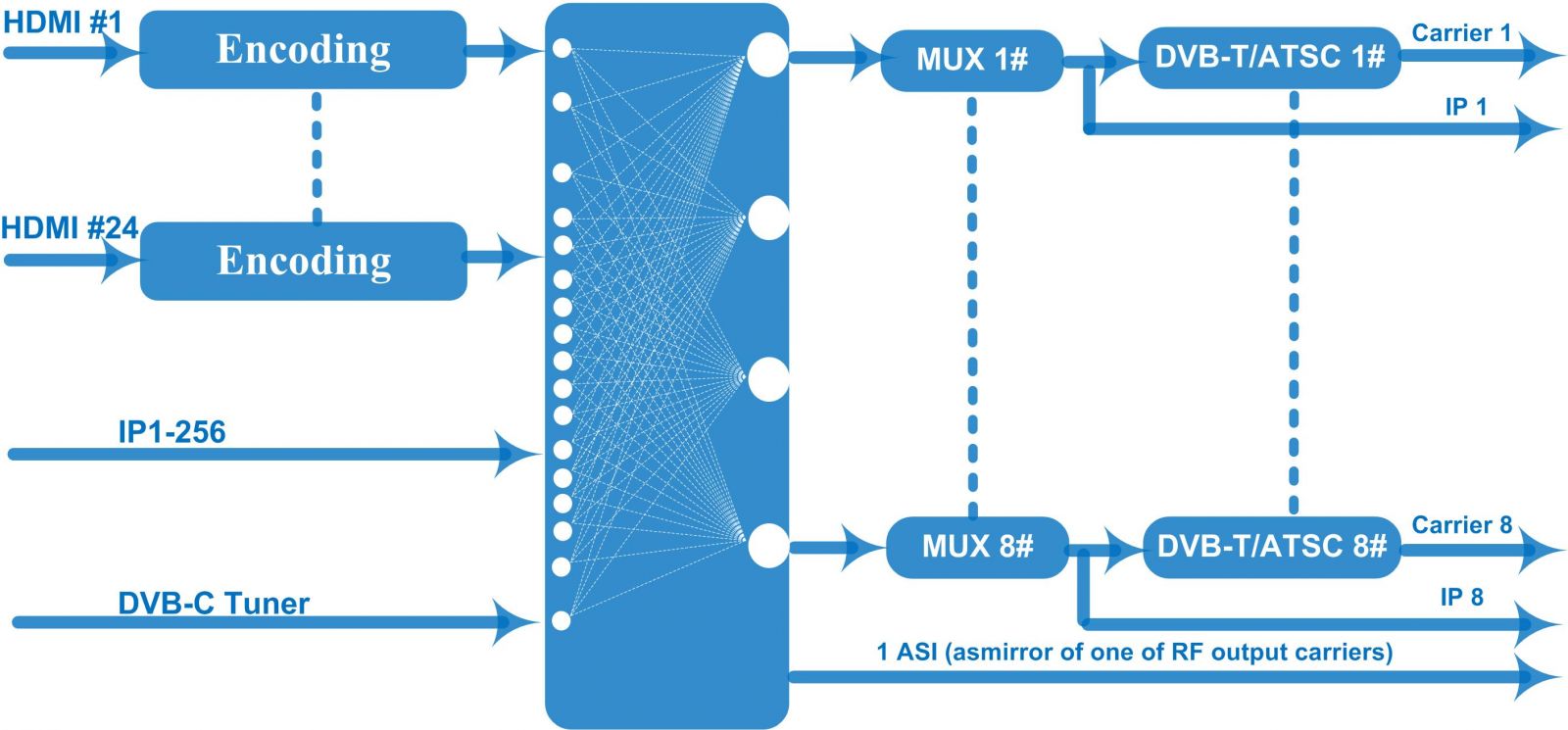

DVB-T/ATSC Principle Chart

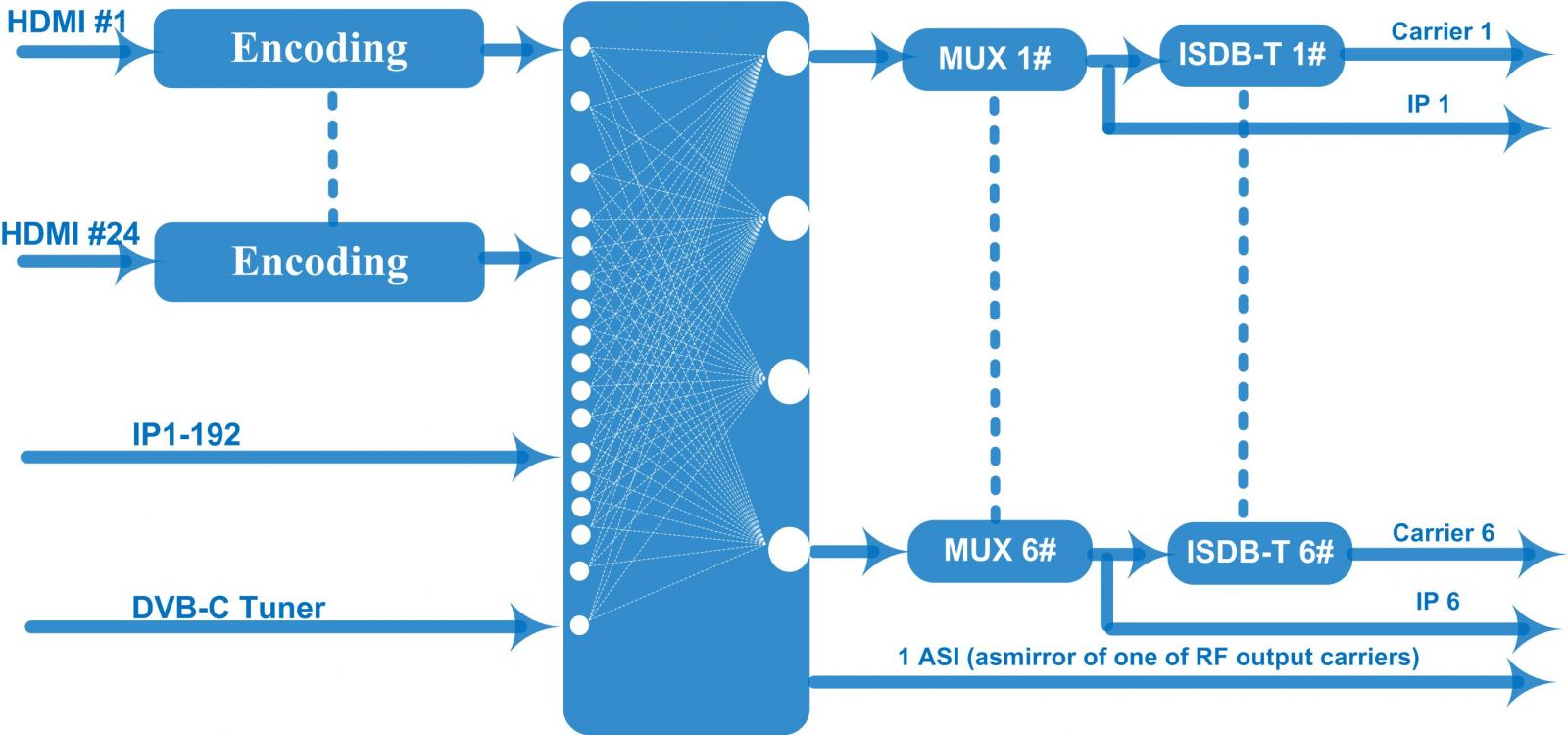

ISDB-T Principle Chart

Technical Specification

Input	24 HDMI inputs 1 DVB-C(ATSC optional) Tuner for re-mux, F type interface 512 IP input over UDP and RTP, DATA1, RJ45—DVB-C RF out 256 IP input over UDP and RTP, DATA1, RJ45—DVB-T/ATSC RF out 192 IP input over UDP and RTP, DATA1, RJ45—ISDB RF out
Video	Resolution	1920×1080_60P,1920×1080_50P,1920×1080_60i, 1920×1080_50i,1280×720_60P,1280×720_50P, 720×576_50i, 720×480_60i
	Encoding	MPEG-4 AVC/H.264
	Bit-rate	0.8~19Mbps each channel
	Rate Control	CBR/VBR
	GOP Structure	IBBP
Audio	Encoding	MPEG1 Layer II, AC3 pass through (MPEG-2 AAC, MPEG-4 AAC Optional)
	Sampling rate	48KHz
	Audio Gain	0-400% adjustable
	Bit-rate	64~320Kbps each channel (each channel)
Multiplexing	Maximum PID Remapping	180 input per channel
	Function	PID remapping ( automatically or manually)
		Accurate PCR adjusting
		Generate PSI/ SI table automatically
Scrambling	Maximum simulcrypt CA	4
	Standard	ETR289, ETSI 101197, ETSI 103197
	Connection	Local/remote connection
Modulation	DVB-C	QAM Channel: 16 non-adjacent carriers output (maximum bandwidth 192MHz) Standard: EN300 429/ITU-T J.83A/B MER: ≥40db RF frequency: 50~960MHz, 1KHz step RF output level: -20~+10dbm, 0.1db step Symbol Rate: 5.0Msps~7.0Msps, 1ksps stepping
				J.83A	J.83B
		Constellation		16/32/64/128/256QAM	64/256 QAM
		Bandwidth		8M	6M
	DVB-T	Standard		EN300744
		FFT mode		2K,4K, 8K
		Bandwidth		6M, 7M, 8M
		Constellation		QPSK, 16QAM, 64QAM
		Guard Interval		1/4, 1/8, 1/16, 1/32
		FEC		1/2, 2/3, 3/4, 5/6, 7/8
		MER		≥42 dB
		RF frequency		50~960MHz, 1KHz step
		RF out		8 non-adjacent carriers output (maximum bandwidth 192MHz)
		RF output level		-20~ +10 dBm, 0.1db step
	ATSC	Standard		ATSC A/53
		Bandwidth		6M
		Constellation		8VSB
		FEC		RS(208 188)+Trellis
		MER		≥40dB
		ACL		-55 dBc
		RF frequency		50~960MHz, 1KHz step
		RF out		8 non-adjacent carriers output (maximum bandwidth 192MHz)
		RF output level		-20~+10dbm (for all carriers), 0.5db stepping
	ISDB-T	Standard		ARIB STD-B31
		Bandwidth		6M
		Constellation		QPSK, 16QAM, 64QAM
		Guard Interval		1/32, 1/16, 1/8, 1/4
		Transmission Mode		2K, 4K, 8K
		Code rate		1/2, 2/3, 3/4, 5/6, 7/8
		MER		≥40dB
		RF frequency		50~960MHz, 1KHz step
		RF out		6 non-adjacent carriers output (maximum bandwidth 192MHz)
		RF output level		-20dBm~+10dBm, 0.1dB stepping
Stream output	1 ASI output as mirror of one of RF output carriers-Optional 16 MPTS output over UDP and RTP/RTSP as mirror of 16 DVB-C carriers, 8 MPTS output over UDP and RTP/RTSP as mirror of 8 DVB-T/ATSC carriers(Optional) 6 MPTS output over UDP and RTP/RTSP as mirror of 6 ISDB-T carriers(Optional) 1*1000M Base-T Ethernet interface
System function	Network management (WEB)
	Chinese and English language
	Ethernet software upgrade
Miscellaneous	Dimension (W×L×H)		482mm×440mm×44mm
	Environment		0~45℃(work)；-20~80℃（Storage）
	Power requirements		AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz
