HPR8401LM
Catcast

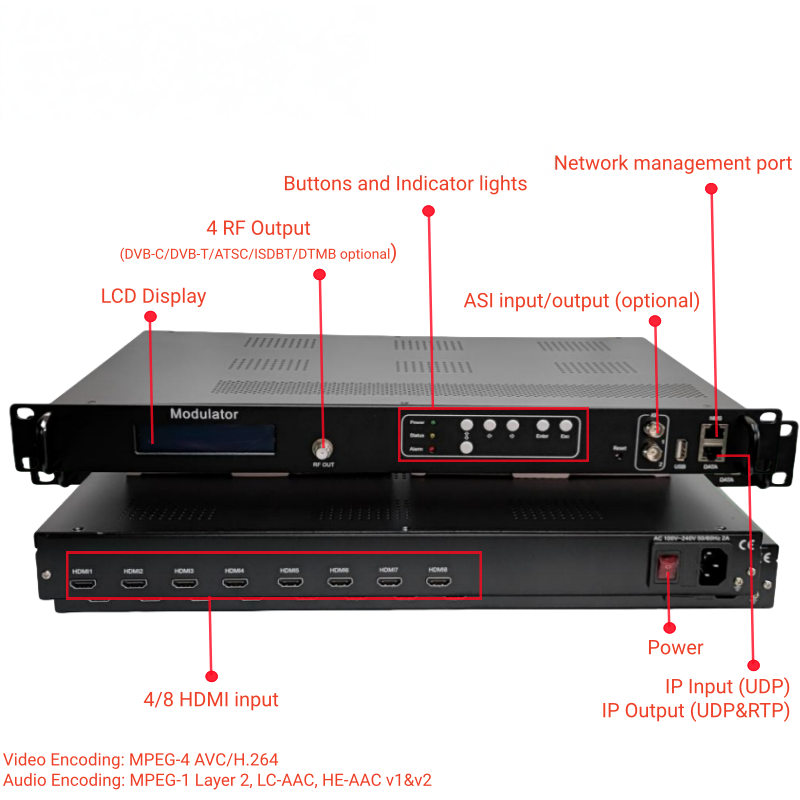

HPR8401LM 8*HDMI IP Input H.264 Encoder Modulator
Summary
HPR8401LM is Catcast’s professional high integration device, which includes encoding, multiplexing, and modulation. It supports 4/8 HDMI input, IP input, MPEG-4AVC/H.264 encoding, 4 Carriers of RF output (DVB-C、DVB-T、ATSC、ISDB-T optional), IP (MPTS&SPTS) output. In conclusion, its highly integrated and cost-effective design makes the device widely used in a variety of digital distribution systems such as cable TV digital head-end, IPTV head-end, digital TV broadcasting, etc.
Key Features
● 8 HDMI input, MPEG-4 AVC/H.264 Video encoding
● IP (SPTS/MPTS) input over UDP
● IP output over UDP and RTP protocol, support unicast and multicast
● 4 carrier RF output ,(DVB-C、DVB-T、ATSC、ISDB-T optional)
● 1 ASI input for re-multiplexing （optional）
● 2 ASI Independent output as copy of MPTS (optional)
● Support “Null PKT Filter” function
● Support PID Remapping/ PCR accurate adjusting
● PID pass
● LCD、key function
● Control via web management, and easy updates via web
Specification
Principle Chart
