HPS381
CatCast
8543709990

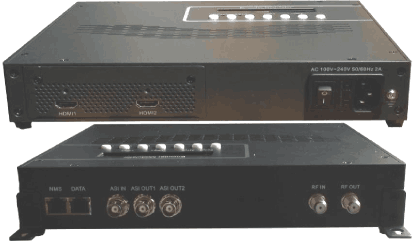

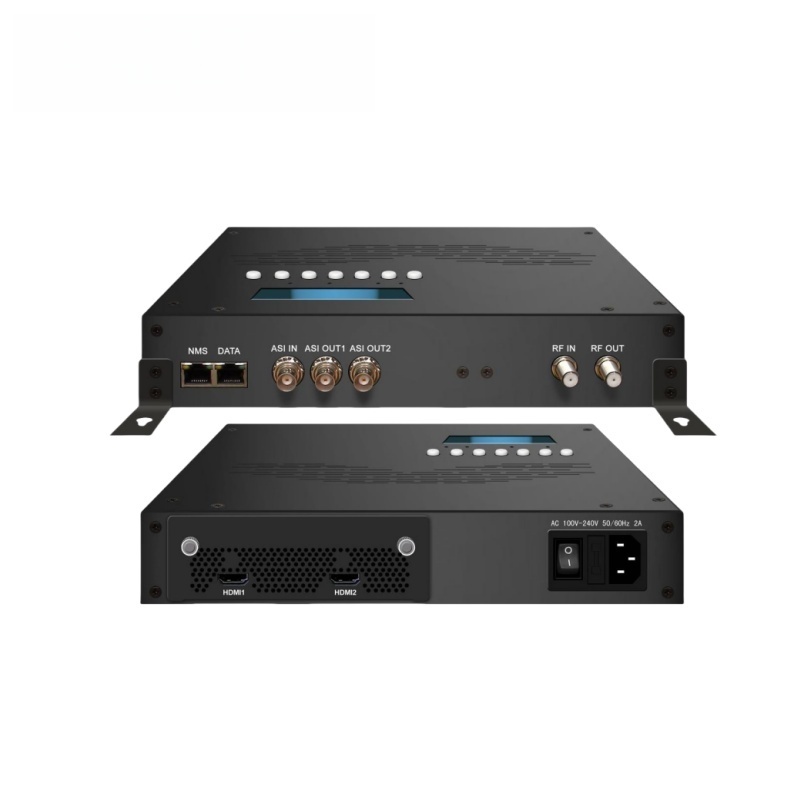

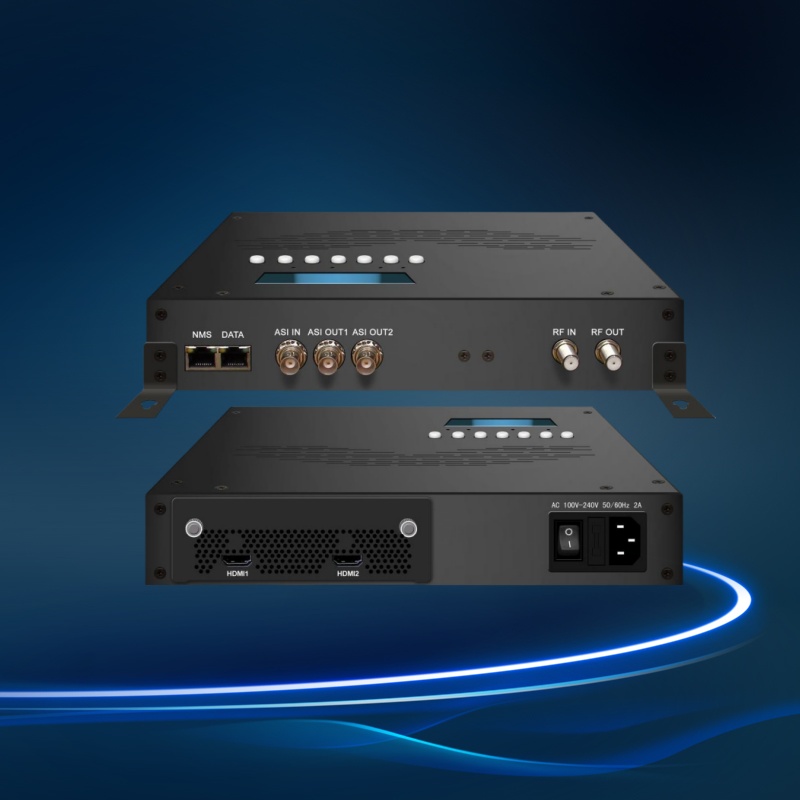

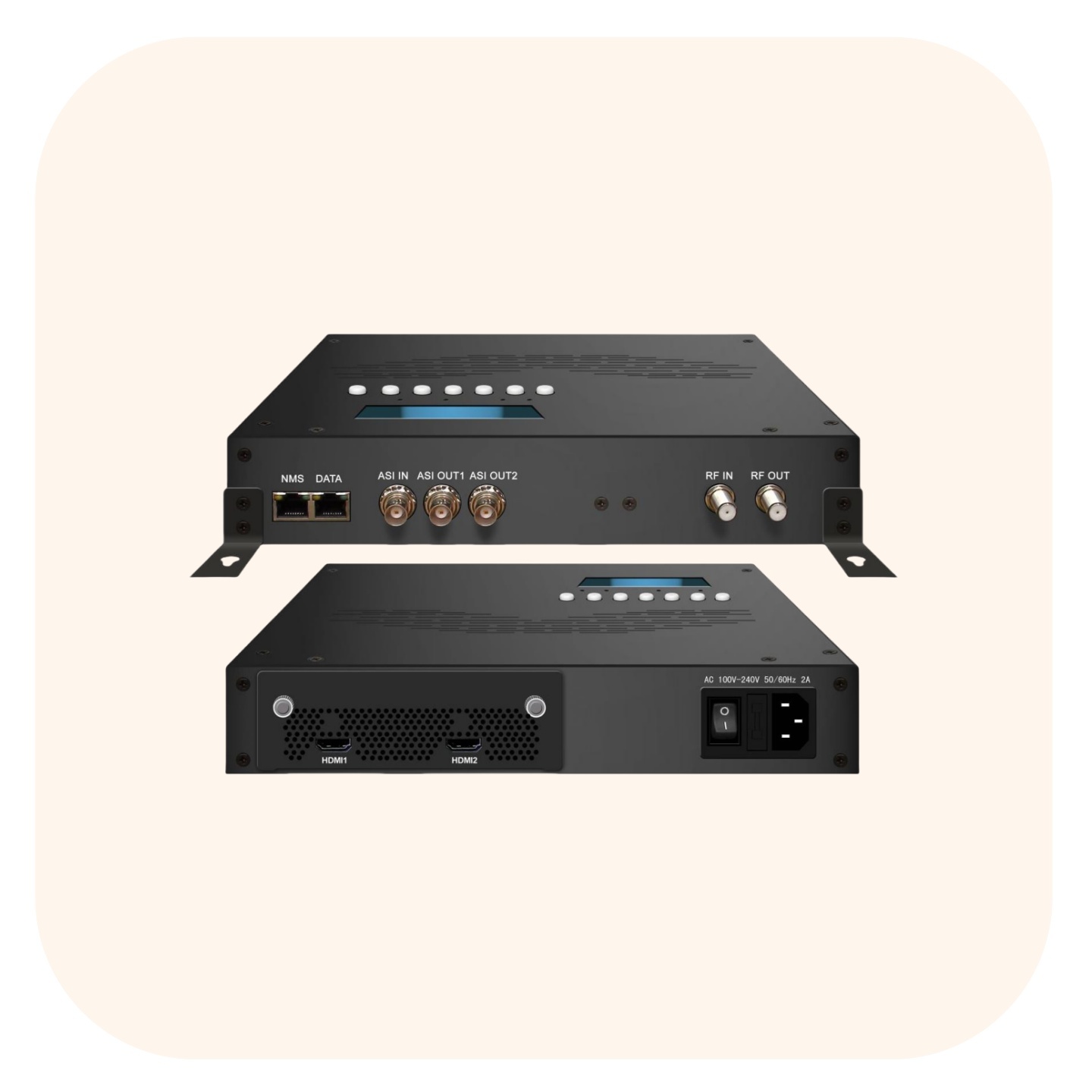

HPS381 1 HDMI to ISDB-T HD Encoder Modulator
Product Overview
HPS381 is Catcast's newly developed Encoder & Modulator which integrates MPEG2 HD/MPEG4 HD video encoding and ISDB -T (DVB-C/-T/ATSC Optional) modulation to convert HDMI signals to ISDB-T RF out in the frequency range of 30~960MHz.It has equipped with 1 channel of HDMI input, 1 ASI input, and output with 2 ASI ports, 1 UDP IP port, and 1 RF port.The signals source could be from satellite receivers, closed-circuit television cameras, Blue-ray players, and antenna etc.Its output signal is to be received by ISDB-T standard TV sets, ISD B-T STBS and etc.
Features
1. MPEG2 HD/MPEG4 HD video encoding
2. Up to 1920*1080@50P/60P supported (MPEG4 HD);
3. Up to 1920*1080@50I/60I supported (MPEG2 HD)4. 1* HDMI in (1 for backup), 1*ASI in
5. RF ISDB-T out
6. LCN support (Logical Channel Number)
7. Excellent modulation quality MER≥42dB
8. RF Frequency range 30Mhz~960Mhz
9. LCD display, Remote control and firmware
10.Web NMS management; Updates via web
11. Lowest cost per channel --- breakthrough price
Principle Chart
Specifications
| Video | |
| Encoding | MPEG2 & MPEG4 AVC/H.264 |
| Input | HDMI*1 (1 for backup) |
| Resolution | 1920*1080_60P, 1920*1080_50P (-for MPEG4 AVC/H.264 only); 1920*1080_60i, 1920*1080_50i; 1280*720_60p, 1280*720_50P; 720*480_60i, 720*576_50i |
| Audio | |
| Encoding | MPEG1 Layer II, (MPEG2-AAC, MPEG4-AAC available ) |
| Sample rate | 48KHz |
| Bit rate | 64kbps, 96kbps,128kbps, 192kbps, 256kbps, 320kbps |
| ISDB-T Modulator | |
| Standard | ARIB STD-B31 |
| Bandwidth | 6M |
| Constellation | DQPSK,QPSK, 16QAM, 64QAM |
| Guard Interval | 1/32, 1/16, 1/8, 1/4 |
| Transmission Mode | 2K, 4K, 8K |
| MER | ≥42dB |
| RF frequency | 30~960MHz, 1KHz step |
| RF output level | -30~ -10dbm (81~97 dbµV), 0.1db step |
| System | |
| Local interface | LCD + control buttons |
| Remote management | Web NMS |
| output | ASI out (BNC type); IP out (RJ45, 100M) |
| NMS interface | RJ45, 100M |
| Language | English |
| General | |
| Power supply | AC 100V~240V |
| Dimensions | 267*250*44mm |
| Weight | 2.5kgs |
| Operation temperature | 0~45℃ |
Typical Applications
