HPS8542A V2
Catcast
8517623990
Product Overview

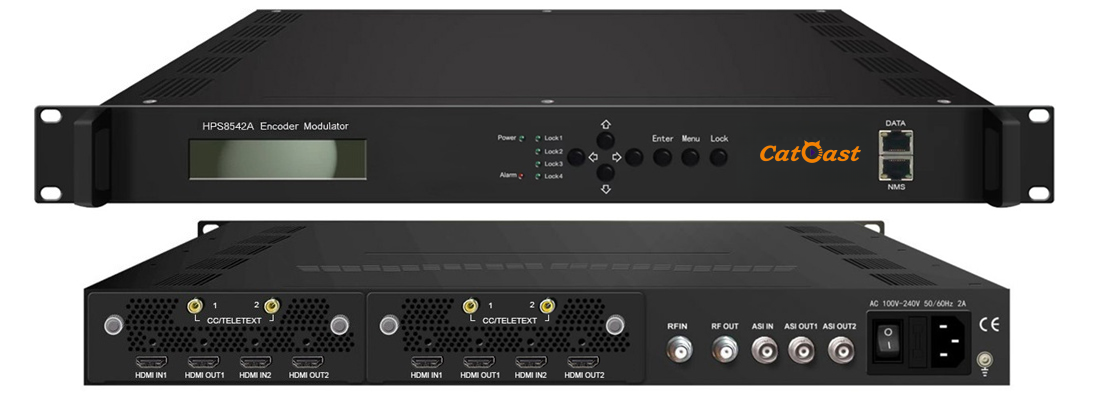

HPS8542A V2 4K encoder modulator is Catcast’s new breakthrough all-in-one devices which integrate encoding (H.264 /H.265) and modulating to convert V/A signals into Digital RF output. It is equipped with 4 HDMI channels input and 1 ASI input(optional) and output via 2 ASI ports(optional) and 1 DATA (4*SPTS or 2 or 4 MPTS--as per carrier numbers)output over UDP, RTP/RTSP. The latency has been greatly reduced to achieve an extremely low value from the encoding progress to the decoding terminals.
It adopts an inner drawer-type structural design which greatly facilitates the change of encoding modules as needed. The signals source could be from satellite receivers, closed-circuit television cameras, Blue-ray players, and antenna etc.
Key Features
• HDMI input with H.265/h.264 video（4K encoding for H.265 only）
• DVB-C/DVB-T/ISDB-T/ATSC RF OUT for order option
• IP output over UDP, RTP/RTSP from the 100/1000M self-adaptive data port
• Support AC3 Pass-through
• Support OSD (logo/QR Code) insertion，logo in PPT form is available
• Support CC (Closed Caption) /Teletext (CC is not available for H.265 at present)
• Excellent modulation quality
• LCN support (Logical Channel Number)
• LCD Screen for easy management
Specifications
Input | 2/4 HDMI in. 2/4 HDMI loop out 1 ASI in for re-mux | |||||
Video | Resolution | 3840*2160_60/50P(H.265 only), 1920*1080_60/59.94/50P, 1280*720_60/59.94/50P, | ||||
Encoding | HEVC/ H.265 , MPEG 4 AVC/H.264 | |||||
Bit-rate | 2Mbps~20Mbps | |||||
Rate Control | CBR/VBR | |||||
Chroma | Input:4:4:4/4:2:2; output:4:2:0 | |||||
GOP Structure | IBBP, IPPP | |||||
Audio | Encoding | MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 Pass through | ||||
Sampling rate | 32KHz,44.1KHz,48KHz | |||||
MPEG-1 Layer 2 /LC-AAC Bit-rate | 48Kbps~384Kbps | |||||
HE-AAC Bit-rate | 24 Kbps~128 Kbps | |||||
HE-AAC V2 Bit-rate | 18 Kbps~56 Kbps | |||||
Multiplexing | Maximum PID Remapping | 255 input per channel | ||||
Function | PID remapping ( automatically or manually) | |||||
Accurate PCR adjusting | ||||||
Generate PSI/ SI table automatically | ||||||
Modulation | DVB-C | QAM Channel | 4*DVB-C carriers | |||
Standard | EN300 429/ITU-T J.83A/B | |||||
MER | ≥40db | |||||
RF frequency | 50~960MHz, 1KHz step | |||||
RF output level | -20~+3dbm, 0.1db step | |||||
Symbol Rate | 3.000~9.000Msps adjustable | |||||
Constellation | J.83A | J.83B | J.83C | |||
16/32/64/128/256QAM | 64/256QAM | 64/ 256QAM | ||||
Bandwidth | 8M | 6M | 6M | |||
DVB-T | Standard | EN300744 | ||||
Transmission Mode | 2K,4K, 8K | |||||
Bandwidth | 6M, 7M, 8M | |||||
Constellation | QPSK, 16QAM, 64QAM | |||||
Guard Interval | 1/32, 1/16, 1/8, 1/4 | |||||
MER | ≥42 dB | |||||
RF frequency | 50~960MHz, 1KHz step | |||||
RF out | 4*DVB-T carriers | |||||
RFoutput level | -28~ -3 dBm, 0.1db step | |||||
ATSC | Standard | ATSC A/53 | ||||
Bandwidth | 6M | |||||
Constellation | 8VSB | |||||
MER | ≥40dB | |||||
RF frequency | 50~960MHz, 1KHz step | |||||
RF out | 4*ATSC carriers | |||||
RF output level | -20~+3dbm(for all carriers), 0.5db stepping | |||||
ISDB-T | Standard | ARIB STD-B31 | ||||
Bandwidth | 6M | |||||
Constellation | QPSK, 16QAM, 64QAM | |||||
Guard Interval | 1/32, 1/16, 1/8, 1/4 | |||||
Transmission Mode | 2K, 4K, 8K | |||||
Code rate | 1/2, 2/3, 3/4, 5/6, 7/8 | |||||
MER | ≥40dB | |||||
RF frequency | 50~960MHz, 1KHz step | |||||
RF out | 2*ISDBT carriers | |||||
RF output level | -20dBm~+3dBm, 0.1dB stepping | |||||
Stream output | 2 ASI out(BNC type, same one mirror out TS as one of 4/2 MPTS outputs and 4 SPTS outputs) DVB-C/DVB-T/ATSC: IP (4 MPTS & 4 SPTS) out over UDP, RTP/RTSP ISDBT: IP (2 MPTS & 4 SPTS) out over UDP,RTP/RTSP | |||||
System function | Network management(WEB) | |||||
Chinese and English language | ||||||
Ethernet software upgrade | ||||||
Miscellaneous | Dimension(W×L×H) | 482mm×328mm×44mm | ||||
Environment | 0~45℃(work)；-20~80℃（Storage） | |||||
Power requirements | AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz | |||||
