HP4134A
Catcast

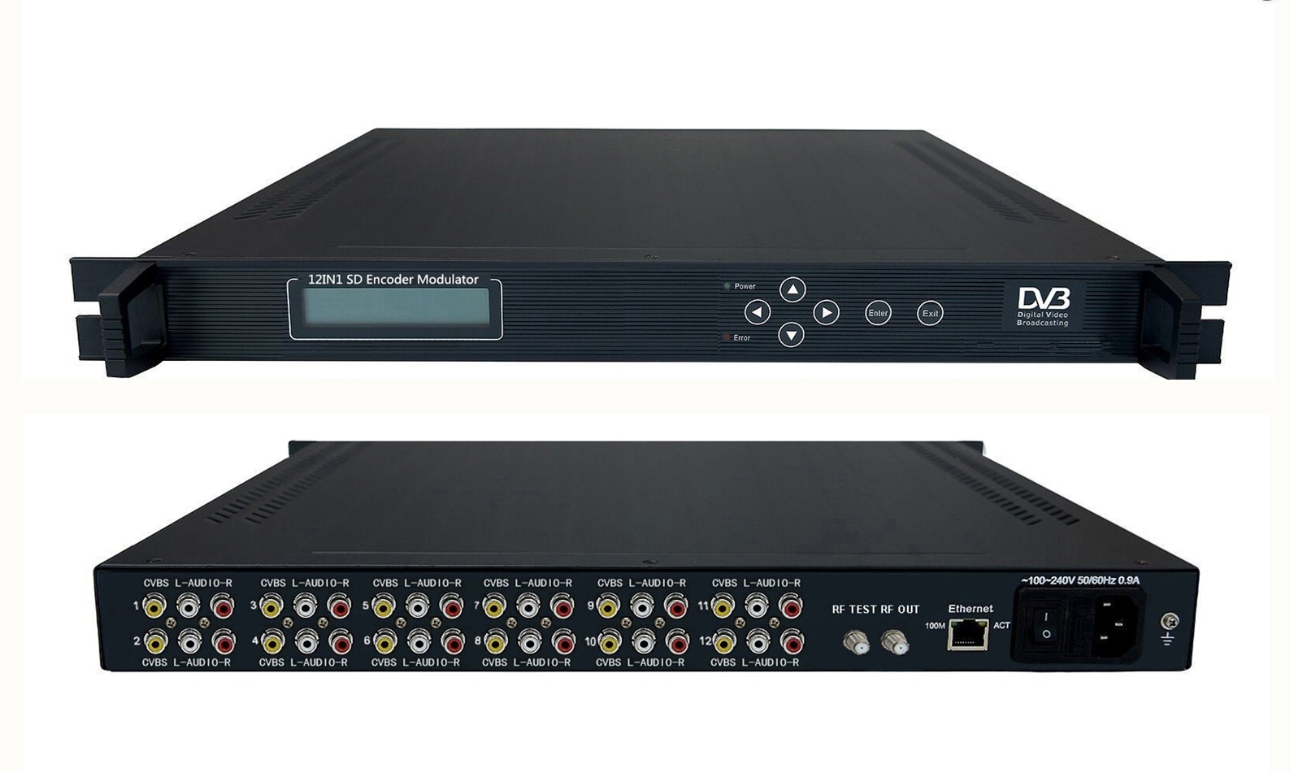

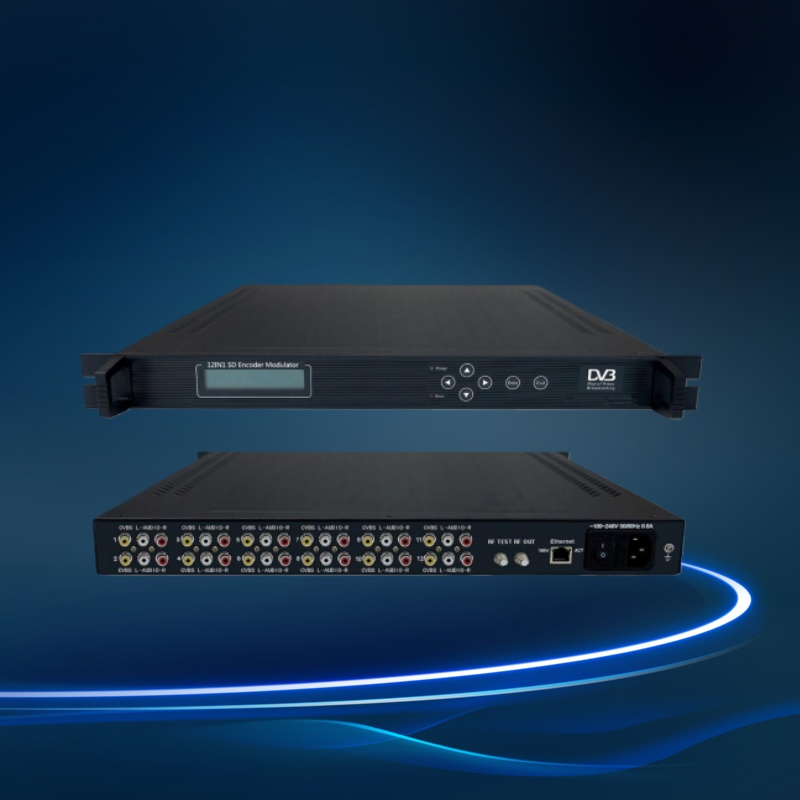

HP4134A 12IN1 DVB-C MEPG2/H.264 SD Encoder Modulator
Overview
HP4134A 12IN1 DVB-C SD Encoder Modulator supports 12×CVBS and 12 pairs of unbalanced audio input and 1×RF output. After coded and modulated, the input signal can be directly output or mixed output with original TV signal. It can be widely used in home entertainment, security and protection monitoring, hotel LCD panels, shopping mall advertising and other similar places.
Feature
Integrated encoder and modulator
12*CVBS+Audio
DVB-C RF out
RF Range: 47-870MHz
Keyboard+LCD control and network management
Technical Specification
Input | Video Signal | 12×CVBS | ||
Audio Signal | 12 pairs of unbalanced audio | |||
Video Coding | MPEG2/H.264 full D1 | |||
Resolution | 720×576 (PAL); 720×480 (NTSC) | |||
Bit Rate | 1.0~15Mbps continuously adjustable per channel | |||
Audio Coding | Sampling | 48KHz | ||
Code Rate | 64, 128, 192, 256, 384Kbps | |||
Property | MPEG-1, Layer 1/2 | |||
Output | 1×DVB-C RF (47-870MHz), F-head | |||
DVB-C Modulation | Frequency Range: 47~870MHz, 1KHz step | Output Level: 80~110dB | ||
Constellation: 16/32/64/256-QAM | Symbol Rate: 5~9Msps | |||
Error-Correcting Codes: RS code188/244 | BER: 0 | |||
Impedance: 75Ω | MER: ≥39dB | |||
Level Attenuation Range: 0~30dB (0.5dB step) | ||||
General Features | Size | 482mm×280mm×44mm | ||
Temperature Range | 0~45°C (operation); -20~80°C (storage) | |||
Power | 100-240VAC, 50Hz, 25W | |||
