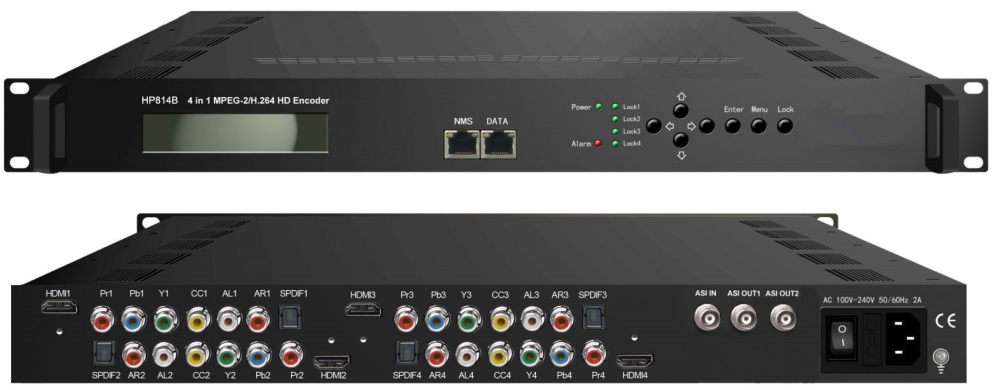

HP814B 4CH HDMI DVB-C Modulator with Closed Caption
Product Overview

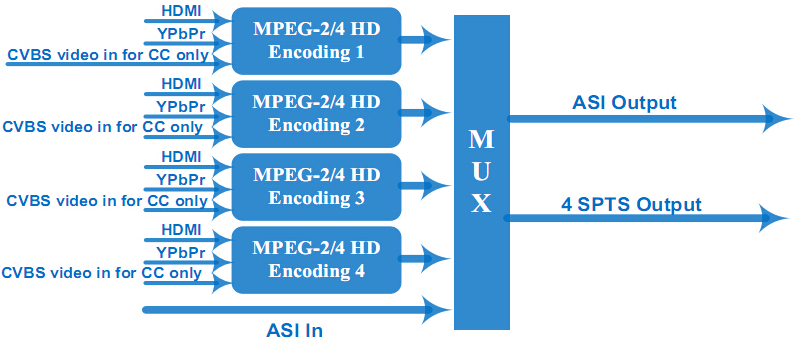

HP814B series products are HIPRO’s all-in-one devices which integrate encoding (MPEG-2, MPEG-4/AVC H.264) and modulation to convert HDMI/YPbPr/AV signals etc to digital RF output. To meet customers’ various requirements, HP814B is also equipped with 1 ASI input, and output with 2 ASI ports and 1 IP port.

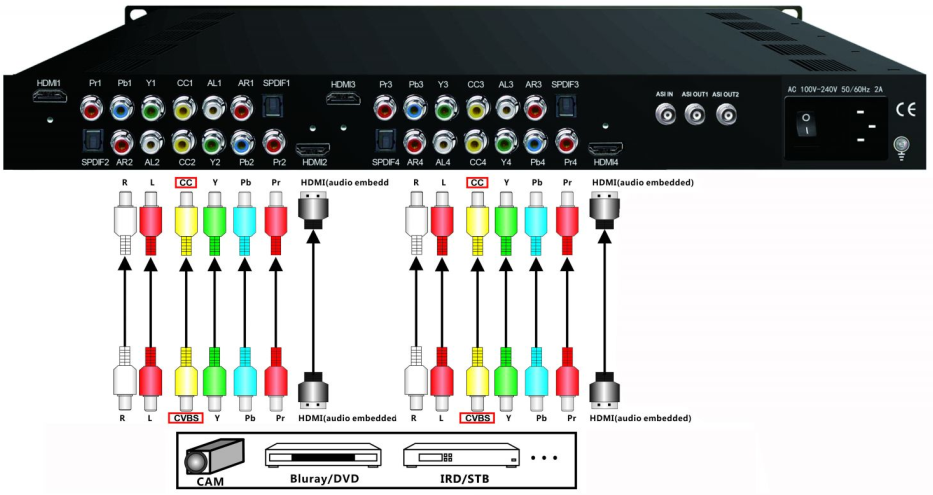

The signals source could be from satellite receivers, closed-circuit television cameras, Blue-ray players, and antenna etc. Its output signals are to be received by TVs, STB and etc with corresponding standard.
Hipro HP814B series products are wildly used in public places such as metro, market hall, theatre, hotels, restaurants and etc for advertising, monitoring, training and educating in company, schools, campuses, hospital… It’s a good choice to offer HD channels and more.
Specifications
Encoding Section
| Video (HDMI) | |
| Encoding | MPEG2; MPEG4 AVC/H.264 |
| Interface | HDMI*4 |
| Resolution | 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P |
| Low Delay | Normal, Mode 1, Mode 2 |
| Aspect Ratio | 4:3; 16:9 |
| Audio (HDMI) | |
| Encoding | MPEG1 Layer II; MPEG2-AAC; MPEG4-AAC; DD AC3(2.0); DD AC3 (2.0/5.1/7.1) passthrough |
| Interface | HDMI*4 (SPDIF Not Applicable) |
| Sample rate | 48KHz |
| Bit rate | 64/96/128/ 192/256/320kbps |
| Video (YPbPr) | |
| Encoding | MPEG2; MPEG4 AVC/H.264 |
| Interface | YPbPr*4 (RCA) |
| Resolution | 1920*1080_60i, 1920*1080_50i; 1280*720_60p, 1280*720_50P |
| Audio (L/R) | |
| Encoding | MPEG1 Layer II; MPEG2-AAC; MPEG4-AAC; DD AC3(2.0); DD AC3 (2.0/5.1/7.1) passthrough |
| Interface | 4*Stereo/8*mono |
| Sample rate | 48KHz |
| Bit rate | 64/96/128/ 192/256/320kbps |
| DVB-T Modulator Section (Option) | |
| Standard | EN300744 |
| FFT mode | 2K，8K |
| Bandwidth | 6M, 7M, 8M |
| Constellation | QPSK, 16QAM, 64QAM |
| Guard Interval | 1/4, 1/8, 1/16, 1/32 |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 |
| MER | ≥42dB |
| RF frequency | 30~960MHz, 1KHz step |
| RF out | COFDM DVB-T out (2 carriers combined out) |
| RF output level | -30~ -10dbm (81~97 dbµV), 0.1db step |
| DVB-C Modulator Section (Option) | |||
| tandard | J.83A (DVB-C), J.83B, J.83C | ||
| MER | ≥43dB | ||
| RF frequency | 30~960MHz, 1KHz step | ||
| RF output level | 30~ -10dbm (77~97 dbµV), 0.1db step | ||
| Symbol rate | 5.000~9.000Msps adjustable | ||
| RF out | 4*DVB-C adjacent carriers combined output | ||
| J.83A | J.83B | J.83C | |
| Constellation | 16/32/64/128/ 256 QAM | 64/ 256 QAM | 64/ 256 QAM |
| Bandwidth | 8M | 6M | 6M |
| ISDB-T Modulator Section (Option) | |
| Standard | ARIB STD-B31 |
| Constellation | DQPSK,QPSK, 16QAM, 64QAM |
| Guard Interval | 1/32, 1/16, 1/8, 1/4 |
| Transmission Mode | 2K, 4K, 8K |
| Guard Interval | 1/32, 1/16, 1/8, 1/4 |
| Code rate | 1/2, 3/4, 5/6, 7/8 |
| RF frequency | 30~999MHz, 1KHz step |
| ATSC Modulator Section (Option) | |
| Standard | ATSC A/53 |
| Constellation | 8 VSB |
| RF output level | -30~ -10dbm (77~97 dbµV), 0.1db step |
| MER | ≥42dB |
| RF frequency | 30~999MHz, 1KHz step |
| RF output level | -30~ -10dbm (77~97 dbµV), 0.1db step |
| System | |
| Local interface | LCD + control buttons |
| Remote management | Web NMS |
| Stream Out | 2 ASI mirrored out (BNC type, 100M); IP (4 SPTS) over UDP, RTP/RTSP out (RJ45, 100M) |
| NMS interface | RJ45, 100M |
| Language | English |
| General | |
| Power supply | AC 100V~240V |
| Dimensions | 482*400*44mm |
| Weight | 4.5 kg |
| Operation temperature | 0~45℃ |
